| Соединители плата/плата (разъемы межплатные), штыревые линейки и гнезда для них > 1,27 x 1,27 |

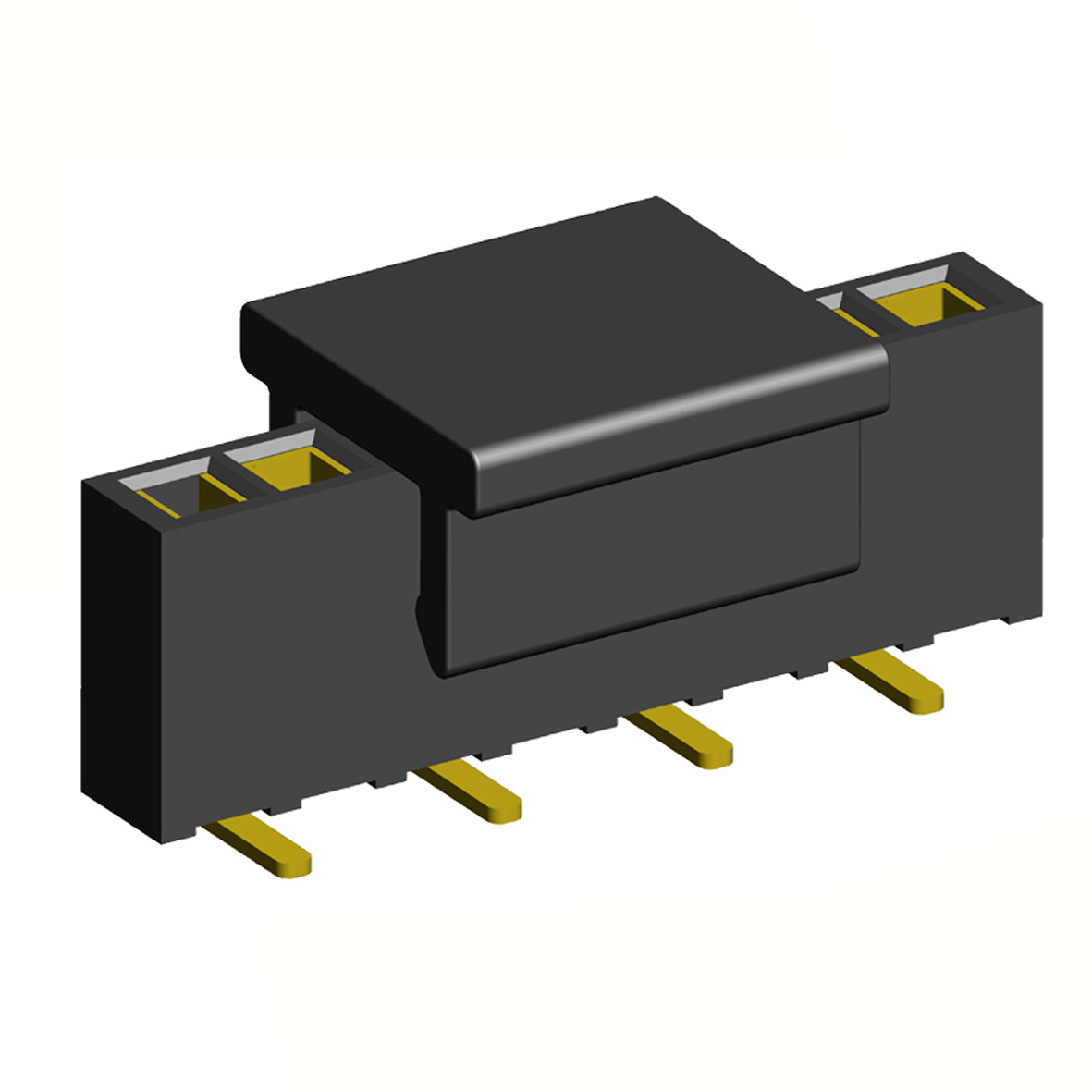

2200SA-XXG-SMX-BX-PCP серия |
|
розетки прямые однорядные (гнездо) с захватом для поверхностного (SMD) монтажа на плату, шаг 1,27 мм
|
|

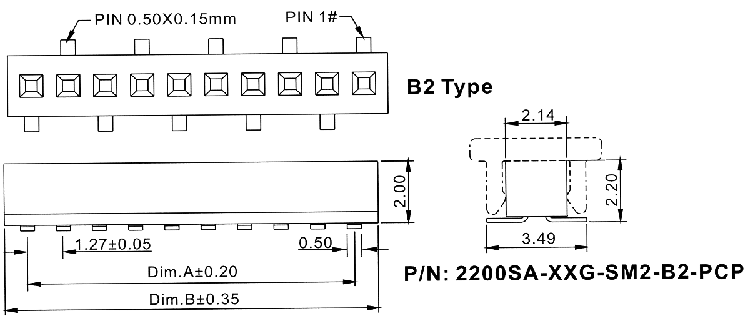

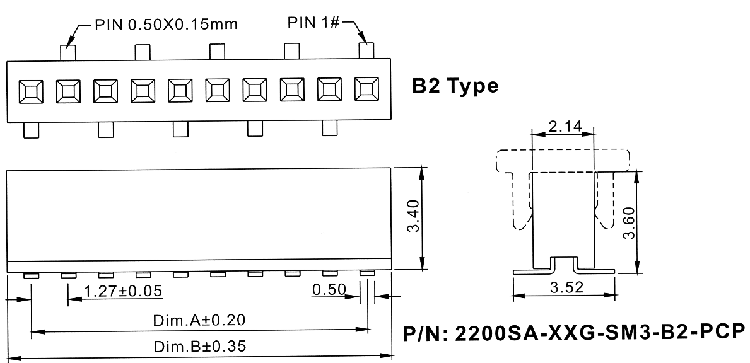

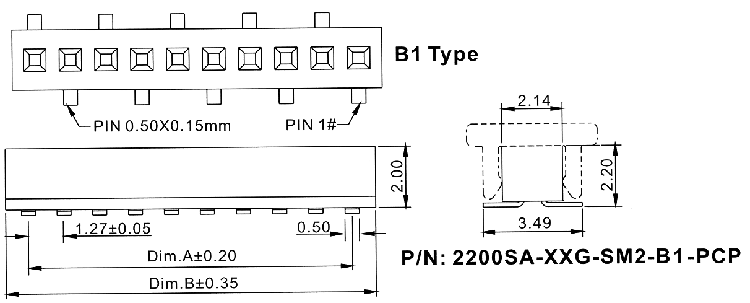

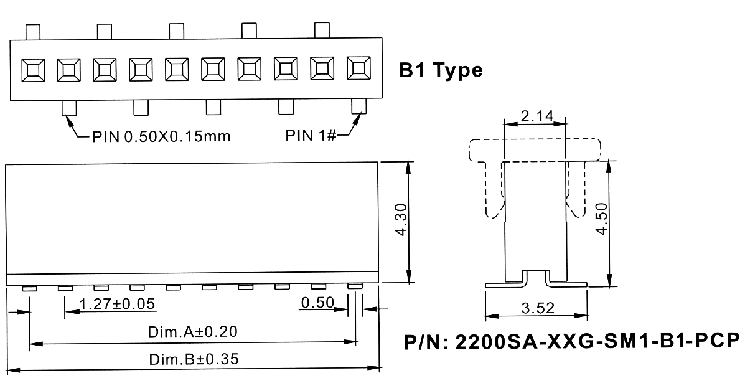

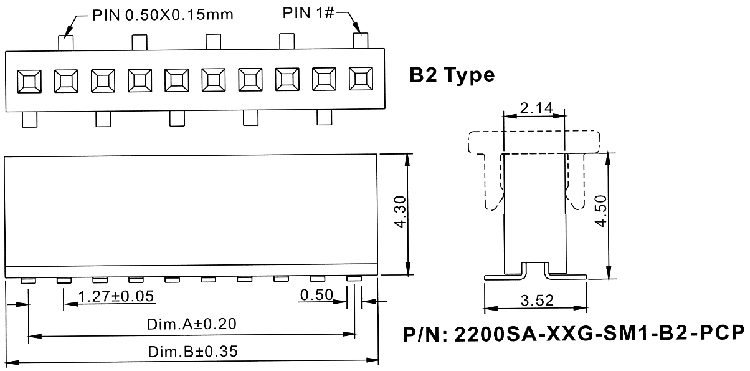

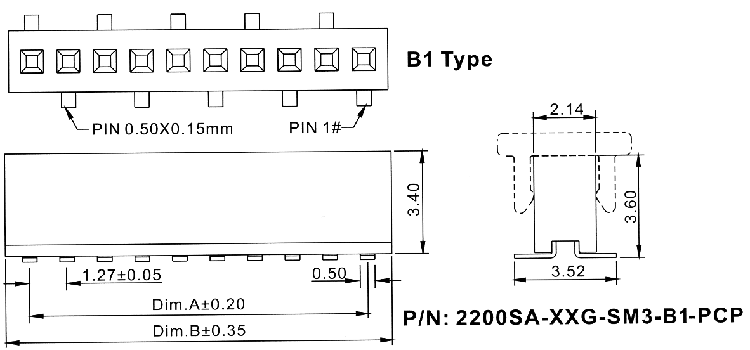

Чертежи
|
| 2200 |
SA |
- |
XX |
G |
- |
SM |
X |
- |
BX |
- |
PCP |
| 1 |
2 |
|
3 |
4 |
|
5 |
6 |
|
7 |
|
8 |
1) Серия:
2200
2) Изолятор:
SA: прямой однорядный
3) Количество контактов (2...40):
XX
4) Покрытие контактов:
G: золочение
T: лужение
5) Для поверхностного монтажа:
SM
6) Высота изолятора:
1: 4,5мм
2: 2,2мм
3: 3,6мм
7) Зеркальное расположение контактов:
B1
B2
8) Наличие крышки для захвата при автоматическом монтаже:
PCP
|
Розетки данной серии изготавливаются на фабрике методом литья. В отличие от вилок, они не режутся, а делаются сразу на требуемое количество контактов. |
Электрические характеристики:
Максимальный ток: 1 А AC/DC
Максимальное напряжение: 50 V AC
Сопротивление контактов: 20 мОм
Сопротивление изоляции: 1000 МОм (мин) при 100 V DC
Диэлектрическая стойкость: 500 V AC в течение 1 мин.
Рабочая температура: -25...+105°С
Материал изолятора: PBT (полибутилентерефтлат) (UL94V-0)
Материал контактов: фосфористая бронза
Стандартное покрытие контактов: золочение
Расположение контактных площадок на плате
B1 тип
|
B2 тип
|
|
| 82186 |
2200SA-02G-SM1-B1-PCP |
PBS1.27-02AS |
2 |
1,27 |
2,92 |
| 82225 |
2200SA-03G-SM1-B1-PCP |
PBS1.27-03AS |
3 |
2,54 |
4,19 |
| 82264 |
2200SA-04G-SM1-B1-PCP |
PBS1.27-04AS |
4 |
3,81 |
5,46 |
| 82109 |
2200SA-05G-SM1-B1-PCP |
PBS1.27-05AS |
5 |
5,08 |
6,73 |
| 82148 |
2200SA-06G-SM1-B1-PCP |
PBS1.27-06AS |
6 |
6,35 |
8,00 |
| 82187 |
2200SA-07G-SM1-B1-PCP |
PBS1.27-07AS |
7 |
7,62 |
9,27 |
| 82226 |
2200SA-08G-SM1-B1-PCP |
PBS1.27-08AS |
8 |
8,89 |
10,54 |
| 82265 |
2200SA-09G-SM1-B1-PCP |
PBS1.27-09AS |
9 |
10,16 |
11,81 |
| 82110 |
2200SA-10G-SM1-B1-PCP |
PBS1.27-10AS |
10 |
11,43 |
13,08 |
| 82149 |
2200SA-11G-SM1-B1-PCP |
PBS1.27-11AS |
11 |
12,70 |
14,35 |
| 82188 |
2200SA-12G-SM1-B1-PCP |
PBS1.27-12AS |
12 |
13,97 |
15,62 |
| 82227 |
2200SA-13G-SM1-B1-PCP |
PBS1.27-13AS |
13 |
15,24 |
16,89 |
| 82266 |
2200SA-14G-SM1-B1-PCP |
PBS1.27-14AS |
14 |
16,51 |
18,16 |
| 82111 |
2200SA-15G-SM1-B1-PCP |
PBS1.27-15AS |
15 |
17,78 |
19,43 |
| 82150 |
2200SA-16G-SM1-B1-PCP |
PBS1.27-16AS |
16 |
19,05 |
20,70 |
| 82189 |
2200SA-17G-SM1-B1-PCP |
PBS1.27-17AS |
17 |
20,32 |
21,97 |
| 82228 |
2200SA-18G-SM1-B1-PCP |
PBS1.27-18AS |
18 |
21,59 |
23,24 |
| 82267 |
2200SA-19G-SM1-B1-PCP |
PBS1.27-19AS |
19 |
22,86 |
24,51 |
| 82112 |
2200SA-20G-SM1-B1-PCP |
PBS1.27-20AS |
20 |
24,13 |
25,78 |
| 82151 |
2200SA-21G-SM1-B1-PCP |
PBS1.27-21AS |
21 |
25,40 |
27,05 |
| 82190 |
2200SA-22G-SM1-B1-PCP |
PBS1.27-22AS |
22 |
26,67 |
28,32 |
| 82229 |
2200SA-23G-SM1-B1-PCP |
PBS1.27-23AS |
23 |
27,94 |
29,59 |
| 82268 |
2200SA-24G-SM1-B1-PCP |
PBS1.27-24AS |
24 |
29,21 |
30,86 |
| 82113 |
2200SA-25G-SM1-B1-PCP |
PBS1.27-25AS |
25 |
30,48 |
32,13 |
| 82152 |
2200SA-26G-SM1-B1-PCP |
PBS1.27-26AS |
26 |
31,75 |
33,40 |
| 82191 |
2200SA-27G-SM1-B1-PCP |
PBS1.27-27AS |
27 |
33,02 |
34,67 |
| 82230 |
2200SA-28G-SM1-B1-PCP |
PBS1.27-28AS |
28 |
34,29 |
35,94 |
| 82269 |
2200SA-29G-SM1-B1-PCP |
PBS1.27-29AS |
29 |
35,56 |
37,21 |
| 82114 |
2200SA-30G-SM1-B1-PCP |
PBS1.27-30AS |
30 |
36,83 |
38,48 |
| 82153 |
2200SA-31G-SM1-B1-PCP |
PBS1.27-31AS |
31 |
38,10 |
39,75 |
| 82192 |
2200SA-32G-SM1-B1-PCP |
PBS1.27-32AS |
32 |
39,37 |
41,02 |
| 82231 |
2200SA-33G-SM1-B1-PCP |
PBS1.27-33AS |
33 |
40,64 |
42,29 |
| 82270 |
2200SA-34G-SM1-B1-PCP |
PBS1.27-34AS |
34 |
41,91 |
43,56 |
| 82115 |
2200SA-35G-SM1-B1-PCP |
PBS1.27-35AS |
35 |
43,18 |
44,83 |
| 82154 |
2200SA-36G-SM1-B1-PCP |
PBS1.27-36AS |
36 |
44,45 |
46,10 |
| 82193 |
2200SA-37G-SM1-B1-PCP |
PBS1.27-37AS |
37 |
45,72 |
47,37 |
| 82232 |
2200SA-38G-SM1-B1-PCP |
PBS1.27-38AS |
38 |
46,99 |
48,64 |
| 82271 |
2200SA-39G-SM1-B1-PCP |
PBS1.27-39AS |
39 |
48,26 |
49,91 |
| 82116 |
2200SA-40G-SM1-B1-PCP |
PBS1.27-40AS |
40 |
49,53 |
51,18 |
| 82155 |
2200SA-41G-SM1-B1-PCP |
PBS1.27-41AS |
41 |
50,80 |
52,45 |
| 82194 |
2200SA-42G-SM1-B1-PCP |
PBS1.27-42AS |
42 |
52,07 |
53,72 |
| 82233 |
2200SA-43G-SM1-B1-PCP |
PBS1.27-43AS |
43 |
53,34 |
54,99 |
| 82272 |
2200SA-44G-SM1-B1-PCP |
PBS1.27-44AS |
44 |
54,61 |
56,26 |
| 82117 |
2200SA-45G-SM1-B1-PCP |
PBS1.27-45AS |
45 |
55,88 |
57,53 |
| 82156 |
2200SA-46G-SM1-B1-PCP |
PBS1.27-46AS |
46 |
57,15 |
58,80 |
| 82195 |
2200SA-47G-SM1-B1-PCP |
PBS1.27-47AS |
47 |
58,42 |
60,07 |
| 82234 |
2200SA-48G-SM1-B1-PCP |
PBS1.27-48AS |
48 |
59,69 |
61,34 |
| 82273 |
2200SA-49G-SM1-B1-PCP |
PBS1.27-49AS |
49 |
60,96 |
62,61 |
| 82118 |
2200SA-50G-SM1-B1-PCP |
PBS1.27-50AS |
50 |
62,23 |
63,88 |
| 82157 |
2200SA-02G-SM1-B2-PCP |
PBS1.27-02BS |
2 |
1,27 |
2,92 |
| 82196 |
2200SA-03G-SM1-B2-PCP |
PBS1.27-03BS |
3 |
2,54 |
4,19 |
| 82235 |
2200SA-04G-SM1-B2-PCP |
PBS1.27-04BS |
4 |
3,81 |
5,46 |
| 82274 |
2200SA-05G-SM1-B2-PCP |
PBS1.27-05BS |
5 |
5,08 |
6,73 |
| 82119 |
2200SA-06G-SM1-B2-PCP |
PBS1.27-06BS |
6 |
6,35 |
8,00 |
| 82158 |
2200SA-07G-SM1-B2-PCP |
PBS1.27-07BS |
7 |
7,62 |
9,27 |
| 82197 |
2200SA-08G-SM1-B2-PCP |
PBS1.27-08BS |
8 |
8,89 |
10,54 |
| 82236 |
2200SA-09G-SM1-B2-PCP |
PBS1.27-09BS |
9 |
10,16 |
11,81 |
| 82275 |
2200SA-10G-SM1-B2-PCP |
PBS1.27-10BS |
10 |
11,43 |
13,08 |
| 82120 |
2200SA-11G-SM1-B2-PCP |
PBS1.27-11BS |
11 |
12,70 |
14,35 |
| 82159 |
2200SA-12G-SM1-B2-PCP |
PBS1.27-12BS |
12 |
13,97 |
15,62 |
| 82198 |
2200SA-13G-SM1-B2-PCP |
PBS1.27-13BS |
13 |
15,24 |
16,89 |
| 82237 |
2200SA-14G-SM1-B2-PCP |
PBS1.27-14BS |
14 |
16,51 |
18,16 |
| 82276 |
2200SA-15G-SM1-B2-PCP |
PBS1.27-15BS |
15 |
17,78 |
19,43 |
| 82121 |
2200SA-16G-SM1-B2-PCP |
PBS1.27-16BS |
16 |
19,05 |
20,70 |
| 82160 |
2200SA-17G-SM1-B2-PCP |
PBS1.27-17BS |
17 |
20,32 |
21,97 |
| 82199 |
2200SA-18G-SM1-B2-PCP |
PBS1.27-18BS |
18 |
21,59 |
23,24 |
| 82238 |
2200SA-19G-SM1-B2-PCP |
PBS1.27-19BS |
19 |
22,86 |
24,51 |
| 82277 |
2200SA-20G-SM1-B2-PCP |
PBS1.27-20BS |
20 |
24,13 |
25,78 |
| 82122 |
2200SA-21G-SM1-B2-PCP |
PBS1.27-21BS |
21 |
25,40 |
27,05 |
| 82161 |
2200SA-22G-SM1-B2-PCP |
PBS1.27-22BS |
22 |
26,67 |
28,32 |
| 82200 |
2200SA-23G-SM1-B2-PCP |
PBS1.27-23BS |
23 |
27,94 |
29,59 |
| 82239 |
2200SA-24G-SM1-B2-PCP |
PBS1.27-24BS |
24 |
29,21 |
30,86 |
| 82278 |
2200SA-25G-SM1-B2-PCP |
PBS1.27-25BS |
25 |
30,48 |
32,13 |
| 82123 |
2200SA-26G-SM1-B2-PCP |
PBS1.27-26BS |
26 |
31,75 |
33,40 |
| 82162 |
2200SA-27G-SM1-B2-PCP |
PBS1.27-27BS |
27 |
33,02 |
34,67 |
| 82201 |
2200SA-28G-SM1-B2-PCP |
PBS1.27-28BS |
28 |
34,29 |
35,94 |
| 82240 |
2200SA-29G-SM1-B2-PCP |
PBS1.27-29BS |
29 |
35,56 |
37,21 |
| 82279 |
2200SA-30G-SM1-B2-PCP |
PBS1.27-30BS |
30 |
36,83 |
38,48 |
| 82124 |
2200SA-31G-SM1-B2-PCP |
PBS1.27-31BS |
31 |
38,10 |
39,75 |
| 82163 |
2200SA-32G-SM1-B2-PCP |
PBS1.27-32BS |
32 |
39,37 |
41,02 |
| 82202 |
2200SA-33G-SM1-B2-PCP |
PBS1.27-33BS |
33 |
40,64 |
42,29 |
| 82241 |
2200SA-34G-SM1-B2-PCP |
PBS1.27-34BS |
34 |
41,91 |
43,56 |
| 82280 |
2200SA-35G-SM1-B2-PCP |
PBS1.27-35BS |
35 |
43,18 |
44,83 |
| 82125 |
2200SA-36G-SM1-B2-PCP |
PBS1.27-36BS |
36 |
44,45 |
46,10 |
| 82164 |
2200SA-37G-SM1-B2-PCP |
PBS1.27-37BS |
37 |
45,72 |
47,37 |
| 82203 |
2200SA-38G-SM1-B2-PCP |
PBS1.27-38BS |
38 |
46,99 |
48,64 |
| 82242 |
2200SA-39G-SM1-B2-PCP |
PBS1.27-39BS |
39 |
48,26 |
49,91 |
| 82281 |
2200SA-40G-SM1-B2-PCP |
PBS1.27-40BS |
40 |
49,53 |
51,18 |
| 82126 |
2200SA-41G-SM1-B2-PCP |
PBS1.27-41BS |
41 |
50,80 |
52,45 |
| 82165 |
2200SA-42G-SM1-B2-PCP |
PBS1.27-42BS |
42 |
52,07 |
53,72 |
| 82204 |
2200SA-43G-SM1-B2-PCP |
PBS1.27-43BS |
43 |
53,34 |
54,99 |
| 82243 |
2200SA-44G-SM1-B2-PCP |
PBS1.27-44BS |
44 |
54,61 |
56,26 |
| 82282 |
2200SA-45G-SM1-B2-PCP |
PBS1.27-45BS |
45 |
55,88 |
57,53 |
| 80556 |
2200SA-46G-SM1-B2-PCP |
PBS1.27-46BS |
46 |
57,15 |
58,80 |
| 80457 |
2200SA-47G-SM1-B2-PCP |
PBS1.27-47BS |
47 |
58,42 |
60,07 |
| 80458 |
2200SA-48G-SM1-B2-PCP |
PBS1.27-48BS |
48 |
59,69 |
61,34 |
| 80459 |
2200SA-49G-SM1-B2-PCP |
PBS1.27-49BS |
49 |
60,96 |
62,61 |
| 80460 |
2200SA-50G-SM1-B2-PCP |
PBS1.27-50BS |
50 |
62,23 |
63,88 |
| 80461 |
2200SA-02G-SM2-B1-PCP |
2 |
1,27 |
2,92 |
| 80561 |
2200SA-03G-SM2-B1-PCP |
3 |
2,54 |
4,19 |
| 80462 |
2200SA-04G-SM2-B1-PCP |
4 |
3,81 |
5,46 |
| 80463 |
2200SA-05G-SM2-B1-PCP |
5 |
5,08 |
6,73 |
| 80464 |
2200SA-06G-SM2-B1-PCP |
6 |
6,35 |
8,00 |
| 80465 |
2200SA-07G-SM2-B1-PCP |
7 |
7,62 |
9,27 |
| 80466 |
2200SA-08G-SM2-B1-PCP |
8 |
8,89 |
10,54 |
| 80467 |
2200SA-09G-SM2-B1-PCP |
9 |
10,16 |
11,81 |
| 80469 |
2200SA-10G-SM2-B1-PCP |
10 |
11,43 |
13,08 |
| 80471 |
2200SA-11G-SM2-B1-PCP |
11 |
12,70 |
14,35 |
| 80473 |
2200SA-12G-SM2-B1-PCP |
12 |
13,97 |
15,62 |
| 80474 |
2200SA-13G-SM2-B1-PCP |
13 |
15,24 |
16,89 |
| 80475 |
2200SA-14G-SM2-B1-PCP |
14 |
16,51 |
18,16 |
| 80476 |
2200SA-15G-SM2-B1-PCP |
15 |
17,78 |
19,43 |
| 80477 |
2200SA-16G-SM2-B1-PCP |
16 |
19,05 |
20,70 |
| 80479 |
2200SA-17G-SM2-B1-PCP |
17 |
20,32 |
21,97 |
| 80579 |
2200SA-18G-SM2-B1-PCP |
18 |
21,59 |
23,24 |
| 80481 |
2200SA-19G-SM2-B1-PCP |
19 |
22,86 |
24,51 |
| 80484 |
2200SA-20G-SM2-B1-PCP |
20 |
24,13 |
25,78 |
| 82420 |
2200SA-21G-SM2-B1-PCP |
21 |
25,40 |
27,05 |
| 82421 |
2200SA-22G-SM2-B1-PCP |
22 |
26,67 |
28,32 |
| 82422 |
2200SA-23G-SM2-B1-PCP |
23 |
27,94 |
29,59 |
| 82423 |
2200SA-24G-SM2-B1-PCP |
24 |
29,21 |
30,86 |
| 82424 |
2200SA-25G-SM2-B1-PCP |
25 |
30,48 |
32,13 |
| 82425 |
2200SA-26G-SM2-B1-PCP |
26 |
31,75 |
33,40 |
| 82426 |
2200SA-27G-SM2-B1-PCP |
27 |
33,02 |
34,67 |
| 82427 |
2200SA-28G-SM2-B1-PCP |
28 |
34,29 |
35,94 |
| 82428 |
2200SA-29G-SM2-B1-PCP |
29 |
35,56 |
37,21 |
| 82429 |
2200SA-30G-SM2-B1-PCP |
30 |
36,83 |
38,48 |
| 82430 |
2200SA-31G-SM2-B1-PCP |
31 |
38,10 |
39,75 |
| 82431 |
2200SA-32G-SM2-B1-PCP |
32 |
39,37 |
41,02 |
| 82432 |
2200SA-33G-SM2-B1-PCP |
33 |
40,64 |
42,29 |
| 82433 |
2200SA-34G-SM2-B1-PCP |
34 |
41,91 |
43,56 |
| 82434 |
2200SA-35G-SM2-B1-PCP |
35 |
43,18 |
44,83 |
| 82435 |
2200SA-36G-SM2-B1-PCP |
36 |
44,45 |
46,10 |
| 82436 |
2200SA-37G-SM2-B1-PCP |
37 |
45,72 |
47,37 |
| 82437 |
2200SA-38G-SM2-B1-PCP |
38 |
46,99 |
48,64 |
| 82438 |
2200SA-39G-SM2-B1-PCP |
39 |
48,26 |
49,91 |
| 82439 |
2200SA-40G-SM2-B1-PCP |
40 |
49,53 |
51,18 |
| 82440 |
2200SA-41G-SM2-B1-PCP |
41 |
50,80 |
52,45 |
| 82441 |
2200SA-42G-SM2-B1-PCP |
42 |
52,07 |
53,72 |
| 82442 |
2200SA-43G-SM2-B1-PCP |
43 |
53,34 |
54,99 |
| 82443 |
2200SA-44G-SM2-B1-PCP |
44 |
54,61 |
56,26 |
| 82444 |
2200SA-45G-SM2-B1-PCP |
45 |
55,88 |
57,53 |
| 82445 |
2200SA-46G-SM2-B1-PCP |
46 |
57,15 |
58,80 |
| 82446 |
2200SA-47G-SM2-B1-PCP |
47 |
58,42 |
60,07 |
| 82447 |
2200SA-48G-SM2-B1-PCP |
48 |
59,69 |
61,34 |
| 82448 |
2200SA-49G-SM2-B1-PCP |
49 |
60,96 |
62,61 |
| 82449 |
2200SA-50G-SM2-B1-PCP |
50 |
62,23 |
63,88 |
| 82450 |
2200SA-02G-SM2-B2-PCP |
2 |
1,27 |
2,92 |
| 82451 |
2200SA-03G-SM2-B2-PCP |
3 |
2,54 |
4,19 |
| 82452 |
2200SA-04G-SM2-B2-PCP |
4 |
3,81 |
5,46 |
| 82453 |
2200SA-05G-SM2-B2-PCP |
5 |
5,08 |
6,73 |
| 82454 |
2200SA-06G-SM2-B2-PCP |
6 |
6,35 |
8,00 |
| 82455 |
2200SA-07G-SM2-B2-PCP |
7 |
7,62 |
9,27 |
| 82456 |
2200SA-08G-SM2-B2-PCP |
8 |
8,89 |
10,54 |
| 82457 |
2200SA-09G-SM2-B2-PCP |
9 |
10,16 |
11,81 |
| 82458 |
2200SA-10G-SM2-B2-PCP |
10 |
11,43 |
13,08 |
| 82459 |
2200SA-11G-SM2-B2-PCP |
11 |
12,70 |
14,35 |
| 82460 |
2200SA-12G-SM2-B2-PCP |
12 |
13,97 |
15,62 |
| 82461 |
2200SA-13G-SM2-B2-PCP |
13 |
15,24 |
16,89 |
| 82462 |
2200SA-14G-SM2-B2-PCP |
14 |
16,51 |
18,16 |
| 82463 |
2200SA-15G-SM2-B2-PCP |
15 |
17,78 |
19,43 |
| 82464 |
2200SA-16G-SM2-B2-PCP |
16 |
19,05 |
20,70 |
| 82465 |
2200SA-17G-SM2-B2-PCP |
17 |
20,32 |
21,97 |
| 82466 |
2200SA-18G-SM2-B2-PCP |
18 |
21,59 |
23,24 |
| 82467 |
2200SA-19G-SM2-B2-PCP |
19 |
22,86 |
24,51 |
| 82468 |
2200SA-20G-SM2-B2-PCP |
20 |
24,13 |
25,78 |
| 82469 |
2200SA-21G-SM2-B2-PCP |
21 |
25,40 |
27,05 |
| 82470 |
2200SA-22G-SM2-B2-PCP |
22 |
26,67 |
28,32 |
| 82471 |
2200SA-23G-SM2-B2-PCP |
23 |
27,94 |
29,59 |
| 82472 |
2200SA-24G-SM2-B2-PCP |
24 |
29,21 |
30,86 |
| 82473 |
2200SA-25G-SM2-B2-PCP |
25 |
30,48 |
32,13 |
| 82474 |
2200SA-26G-SM2-B2-PCP |
26 |
31,75 |
33,40 |
| 82475 |
2200SA-27G-SM2-B2-PCP |
27 |
33,02 |
34,67 |
| 82476 |
2200SA-28G-SM2-B2-PCP |
28 |
34,29 |
35,94 |
| 82477 |
2200SA-29G-SM2-B2-PCP |
29 |
35,56 |
37,21 |
| 82478 |
2200SA-30G-SM2-B2-PCP |
30 |
36,83 |
38,48 |
| 82479 |
2200SA-31G-SM2-B2-PCP |
31 |
38,10 |
39,75 |
| 82480 |
2200SA-32G-SM2-B2-PCP |
32 |
39,37 |
41,02 |
| 82481 |
2200SA-33G-SM2-B2-PCP |
33 |
40,64 |
42,29 |
| 82482 |
2200SA-34G-SM2-B2-PCP |
34 |
41,91 |
43,56 |
| 82483 |
2200SA-35G-SM2-B2-PCP |
35 |
43,18 |
44,83 |
| 82484 |
2200SA-36G-SM2-B2-PCP |
36 |
44,45 |
46,10 |
| 82485 |
2200SA-37G-SM2-B2-PCP |
37 |
45,72 |
47,37 |
| 82486 |
2200SA-38G-SM2-B2-PCP |
38 |
46,99 |
48,64 |
| 82487 |
2200SA-39G-SM2-B2-PCP |
39 |
48,26 |
49,91 |
| 82488 |
2200SA-40G-SM2-B2-PCP |
40 |
49,53 |
51,18 |
| 82489 |
2200SA-41G-SM2-B2-PCP |
41 |
50,80 |
52,45 |
| 82490 |
2200SA-42G-SM2-B2-PCP |
42 |
52,07 |
53,72 |
| 82491 |
2200SA-43G-SM2-B2-PCP |
43 |
53,34 |
54,99 |
| 82492 |
2200SA-44G-SM2-B2-PCP |
44 |
54,61 |
56,26 |
| 82493 |
2200SA-45G-SM2-B2-PCP |
45 |
55,88 |
57,53 |
| 82494 |
2200SA-46G-SM2-B2-PCP |
46 |
57,15 |
58,80 |
| 82495 |
2200SA-47G-SM2-B2-PCP |
47 |
58,42 |
60,07 |
| 82496 |
2200SA-48G-SM2-B2-PCP |
48 |
59,69 |
61,34 |
| 82497 |
2200SA-49G-SM2-B2-PCP |
49 |
60,96 |
62,61 |
| 82498 |
2200SA-50G-SM2-B2-PCP |
50 |
62,23 |
63,88 |
| 82499 |
2200SA-02G-SM3-B1-PCP |
2 |
1,27 |
2,92 |
| 82500 |
2200SA-03G-SM3-B1-PCP |
3 |
2,54 |
4,19 |
| 82501 |
2200SA-04G-SM3-B1-PCP |
4 |
3,81 |
5,46 |
| 82502 |
2200SA-05G-SM3-B1-PCP |
5 |
5,08 |
6,73 |
| 82503 |
2200SA-06G-SM3-B1-PCP |
6 |
6,35 |
8,00 |
| 82504 |
2200SA-07G-SM3-B1-PCP |
7 |
7,62 |
9,27 |
| 82505 |
2200SA-08G-SM3-B1-PCP |
8 |
8,89 |
10,54 |
| 82506 |
2200SA-09G-SM3-B1-PCP |
9 |
10,16 |
11,81 |
| 82507 |
2200SA-10G-SM3-B1-PCP |
10 |
11,43 |
13,08 |
| 82508 |
2200SA-11G-SM3-B1-PCP |
11 |
12,70 |
14,35 |
| 82509 |
2200SA-12G-SM3-B1-PCP |
12 |
13,97 |
15,62 |
| 82510 |
2200SA-13G-SM3-B1-PCP |
13 |
15,24 |
16,89 |
| 82511 |
2200SA-14G-SM3-B1-PCP |
14 |
16,51 |
18,16 |
| 82512 |
2200SA-15G-SM3-B1-PCP |
15 |
17,78 |
19,43 |
| 82513 |
2200SA-16G-SM3-B1-PCP |
16 |
19,05 |
20,70 |
| 82514 |
2200SA-17G-SM3-B1-PCP |
17 |
20,32 |
21,97 |
| 82515 |
2200SA-18G-SM3-B1-PCP |
18 |
21,59 |
23,24 |
| 82516 |
2200SA-19G-SM3-B1-PCP |
19 |
22,86 |
24,51 |
| 82517 |
2200SA-20G-SM3-B1-PCP |
20 |
24,13 |
25,78 |
| 82518 |
2200SA-21G-SM3-B1-PCP |
21 |
25,40 |
27,05 |
| 82519 |
2200SA-22G-SM3-B1-PCP |
22 |
26,67 |
28,32 |
| 82520 |
2200SA-23G-SM3-B1-PCP |
23 |
27,94 |
29,59 |
| 82521 |
2200SA-24G-SM3-B1-PCP |
24 |
29,21 |
30,86 |
| 82522 |
2200SA-25G-SM3-B1-PCP |
25 |
30,48 |
32,13 |
| 82523 |
2200SA-26G-SM3-B1-PCP |
26 |
31,75 |
33,40 |
| 82524 |
2200SA-27G-SM3-B1-PCP |
27 |
33,02 |
34,67 |
| 82525 |
2200SA-28G-SM3-B1-PCP |
28 |
34,29 |
35,94 |
| 82526 |
2200SA-29G-SM3-B1-PCP |
29 |
35,56 |
37,21 |
| 82527 |
2200SA-30G-SM3-B1-PCP |
30 |
36,83 |
38,48 |
| 82528 |
2200SA-31G-SM3-B1-PCP |
31 |
38,10 |
39,75 |
| 82529 |
2200SA-32G-SM3-B1-PCP |
32 |
39,37 |
41,02 |
| 82530 |
2200SA-33G-SM3-B1-PCP |
33 |
40,64 |
42,29 |
| 82531 |
2200SA-34G-SM3-B1-PCP |
34 |
41,91 |
43,56 |
| 82532 |
2200SA-35G-SM3-B1-PCP |
35 |
43,18 |
44,83 |
| 82533 |
2200SA-36G-SM3-B1-PCP |
36 |
44,45 |
46,10 |
| 82534 |
2200SA-37G-SM3-B1-PCP |
37 |
45,72 |
47,37 |
| 82535 |
2200SA-38G-SM3-B1-PCP |
38 |
46,99 |
48,64 |
| 82536 |
2200SA-39G-SM3-B1-PCP |
39 |
48,26 |
49,91 |
| 82537 |
2200SA-40G-SM3-B1-PCP |
40 |
49,53 |
51,18 |
| 82538 |
2200SA-41G-SM3-B1-PCP |
41 |
50,80 |
52,45 |
| 82539 |
2200SA-42G-SM3-B1-PCP |
42 |
52,07 |
53,72 |
| 82540 |
2200SA-43G-SM3-B1-PCP |
43 |
53,34 |
54,99 |
| 82541 |
2200SA-44G-SM3-B1-PCP |
44 |
54,61 |
56,26 |
| 82542 |
2200SA-45G-SM3-B1-PCP |
45 |
55,88 |
57,53 |
| 82543 |
2200SA-46G-SM3-B1-PCP |
46 |
57,15 |
58,80 |
| 82544 |
2200SA-47G-SM3-B1-PCP |
47 |
58,42 |
60,07 |
| 82545 |
2200SA-48G-SM3-B1-PCP |
48 |
59,69 |
61,34 |
| 82546 |
2200SA-49G-SM3-B1-PCP |
49 |
60,96 |
62,61 |
| 82547 |
2200SA-50G-SM3-B1-PCP |
50 |
62,23 |
63,88 |
| 82548 |
2200SA-02G-SM3-B2-PCP |
2 |
1,27 |
2,92 |
| 82549 |
2200SA-03G-SM3-B2-PCP |
3 |
2,54 |
4,19 |
| 82550 |
2200SA-04G-SM3-B2-PCP |
4 |
3,81 |
5,46 |
| 82551 |
2200SA-05G-SM3-B2-PCP |
5 |
5,08 |
6,73 |
| 82552 |
2200SA-06G-SM3-B2-PCP |
6 |
6,35 |
8,00 |
| 82553 |
2200SA-07G-SM3-B2-PCP |
7 |
7,62 |
9,27 |
| 82554 |
2200SA-08G-SM3-B2-PCP |
8 |
8,89 |
10,54 |
| 82555 |
2200SA-09G-SM3-B2-PCP |
9 |
10,16 |
11,81 |
| 82556 |
2200SA-10G-SM3-B2-PCP |
10 |
11,43 |
13,08 |
| 82557 |
2200SA-11G-SM3-B2-PCP |
11 |
12,70 |
14,35 |
| 82558 |
2200SA-12G-SM3-B2-PCP |
12 |
13,97 |
15,62 |
| 82559 |
2200SA-13G-SM3-B2-PCP |
13 |
15,24 |
16,89 |
| 82560 |
2200SA-14G-SM3-B2-PCP |
14 |
16,51 |
18,16 |
| 82561 |
2200SA-15G-SM3-B2-PCP |
15 |
17,78 |
19,43 |
| 82562 |
2200SA-16G-SM3-B2-PCP |
16 |
19,05 |
20,70 |
| 82563 |
2200SA-17G-SM3-B2-PCP |
17 |
20,32 |
21,97 |
| 82564 |
2200SA-18G-SM3-B2-PCP |
18 |
21,59 |
23,24 |
| 82565 |
2200SA-19G-SM3-B2-PCP |
19 |
22,86 |
24,51 |
| 82566 |
2200SA-20G-SM3-B2-PCP |
20 |
24,13 |
25,78 |
| 82567 |
2200SA-21G-SM3-B2-PCP |
21 |
25,40 |
27,05 |
| 82568 |
2200SA-22G-SM3-B2-PCP |
22 |
26,67 |
28,32 |
| 82569 |
2200SA-23G-SM3-B2-PCP |
23 |
27,94 |
29,59 |
| 82570 |
2200SA-24G-SM3-B2-PCP |
24 |
29,21 |
30,86 |
| 82571 |
2200SA-25G-SM3-B2-PCP |
25 |
30,48 |
32,13 |
| 82572 |
2200SA-26G-SM3-B2-PCP |
26 |
31,75 |
33,40 |
| 82573 |
2200SA-27G-SM3-B2-PCP |
27 |
33,02 |
34,67 |
| 82574 |
2200SA-28G-SM3-B2-PCP |
28 |
34,29 |
35,94 |
| 82575 |
2200SA-29G-SM3-B2-PCP |
29 |
35,56 |
37,21 |
| 82576 |
2200SA-30G-SM3-B2-PCP |
30 |
36,83 |
38,48 |
| 82577 |
2200SA-31G-SM3-B2-PCP |
31 |
38,10 |
39,75 |
| 82578 |
2200SA-32G-SM3-B2-PCP |
32 |
39,37 |
41,02 |
| 82579 |
2200SA-33G-SM3-B2-PCP |
33 |
40,64 |
42,29 |
| 82580 |
2200SA-34G-SM3-B2-PCP |
34 |
41,91 |
43,56 |
| 82581 |
2200SA-35G-SM3-B2-PCP |
35 |
43,18 |
44,83 |
| 82582 |
2200SA-36G-SM3-B2-PCP |
36 |
44,45 |
46,10 |
| 82583 |
2200SA-37G-SM3-B2-PCP |
37 |
45,72 |
47,37 |
| 82584 |
2200SA-38G-SM3-B2-PCP |
38 |
46,99 |
48,64 |
| 82585 |
2200SA-39G-SM3-B2-PCP |
39 |
48,26 |
49,91 |
| 82586 |
2200SA-40G-SM3-B2-PCP |
40 |
49,53 |
51,18 |
| 82587 |
2200SA-41G-SM3-B2-PCP |
41 |
50,80 |
52,45 |
| 82588 |
2200SA-42G-SM3-B2-PCP |
42 |
52,07 |
53,72 |
| 82589 |
2200SA-43G-SM3-B2-PCP |
43 |
53,34 |
54,99 |
| 82590 |
2200SA-44G-SM3-B2-PCP |
44 |
54,61 |
56,26 |
| 82591 |
2200SA-45G-SM3-B2-PCP |
45 |
55,88 |
57,53 |
| 82592 |
2200SA-46G-SM3-B2-PCP |
46 |
57,15 |
58,80 |
| 82593 |
2200SA-47G-SM3-B2-PCP |
47 |
58,42 |
60,07 |
| 82594 |
2200SA-48G-SM3-B2-PCP |
48 |
59,69 |
61,34 |
| 82595 |
2200SA-49G-SM3-B2-PCP |
49 |
60,96 |
62,61 |
| 82596 |
2200SA-50G-SM3-B2-PCP |
50 |
62,23 |
63,88 |
Расположение контактных площадок на плате
B1 тип
|
B2 тип
|
|
|
|
|
|
- Цены, опубликованные в Магазине, могут не являться окончательными и предназначены только для предварительного ознакомления.
Информацию о наличии товаров и свежих ценах уточняйте у менеджеров, они устанавливают окончательные цены при оформлении заказа в зависимости от количества товара и истории клиента. Или нажмите ссылку:
sales@dart.ru
- Представленная техническая информация и размеры на чертежах, опубликованных на сайте, носят справочный характер и не предназначены для использования в конструкторской документации без согласования с нами.
Для получения актуализированной технической информации нажмите ссылку:
alex@dart.ru
- Возможность поставки товаров, где не указан код товара, уточняйте у наших менеджеров.
- Перед закладкой компонентов в серийные изделия необходимо запрашивать образцы!
|
|
|
|
|
