| Разъемы >> Соединители DIN 41612 >> DIN 41612 розетки прямые |

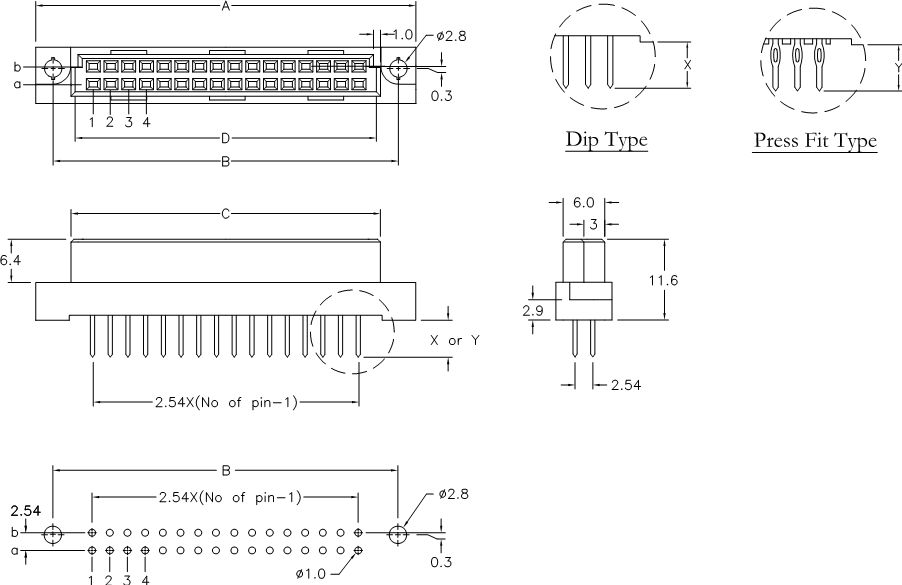

DIN 41612 9001-36/9001-46 серии типа Half B |
|
розетки прямые 2-х рядные на плату, шаг 2,54/5,08 мм
|
| .jpg)
.jpg)
|
| 9001 |
- |
3 |
6 |
32 |
1 |
C |
00 |
P |
L1 |
A |
| 1 |
|
2 |
3 |
4 |
5 |
6 |
7 |
8 |
9 |
10 |
1) серия
2) 3: шаг 2,54 мм
4: шаг 5,08 мм
3) 6: розетка
4) количество позиций
5) длина выводов в соответствии
с таблицей:
Длина
выводов,
мм |
1 |
2 |
W1 |
W2 |
| X |
4,0 |
2,5 |
13 |
17 |
| Y |
4,6 |
6,3 |
13 |
17 |
6) C: частичное золочение контактов
7) G/F
8) [пусто]: выводы под пайку
P: выводы под запрессовку
9) [пусто]: без замка в плату
L1: с замком в плату
толщиной 1,6...2,0 мм (см. PDF файл)
L2: с замком в плату
толщиной 2,8...3,2 мм (см. PDF файл)
10) A: упаковка в поддоны
|
Розетки прямые 3-х рядные на плату, шаг 2,54/5,08 мм поставляются со склада в Москве и под заказ.
Контакты вставлены в отверстия в соответствии с таблицей: |
| 2,54 |
32 |
a b |
 |
| 20 |
a b |
|
| 16 |
a - |
 |
| 10 |
a - |
|
| 5,08 |
16 |
a b |
 |
| 10 |
a b |
|
| 8 |
a - |
 |
| 5 |
a - |
|
|
Совместимы с 2-х рядными розетками:
9001-36 типа Half B
9001-38 типа Half Q
|
Электрические характеристики:
Максимальный ток: 2,0 А AC/DC
Сопротивление контактов: 20 мОм
Сопротивление изоляции: 1000 МОм (мин)
Диэлектрическая стойкость: 1000 V AC.
Рабочая температура: -55...+125°С
Материал изолятора: термопластичный стеклонаполненный полиэстер (UL94V-0)
Материал контактов: медный сплав |
Розетки прямые 2-х рядные (DIN 41612), шаг 2,54 мм:
| 134909 |
9001-36321C00A (DIN 41612-32AB-FS) |
32 |
4,0 |
| 134910 |
9001-36201C00A (DIN 41612-20AB-FS) |
20 |
4,0 |
| 134911 |
9001-36161C00A (DIN 41612-16A-FS) |
16 |
4,0 |
| 134912 |
9001-36101C00A (DIN 41612-10A-FS) |
10 |
4,0 |
| 134913 |
9001-36321C00L1A (DIN 41612-32AB-FS) |
32 |
4,0 |
| 134914 |
9001-36201C00L1A (DIN 41612-20AB-FS) |
20 |
4,0 |
| 134915 |
9001-36161C00L1A (DIN 41612-16A-FS) |
16 |
4,0 |
| 134916 |
9001-36101C00L1A (DIN 41612-10A-FS) |
10 |
4,0 |
| 134917 |
9001-36321C00L2A (DIN 41612-32AB-FS) |
32 |
4,0 |
| 134918 |
9001-36201C00L2A (DIN 41612-20AB-FS) |
20 |
4,0 |
| 134919 |
9001-36161C00L2A (DIN 41612-16A-FS) |
16 |
4,0 |
| 134920 |
9001-36101C00L2A (DIN 41612-10A-FS) |
10 |
4,0 |
| 134921 |
9001-36322C00A (DIN 41612-32AB-FS) |
32 |
2,5 |
| 134922 |
9001-36202C00A (DIN 41612-20AB-FS) |
20 |
2,5 |
| 134923 |
9001-36162C00A (DIN 41612-16A-FS) |
16 |
2,5 |
| 134924 |
9001-36102C00A (DIN 41612-10A-FS) |
10 |
2,5 |
| 134925 |
9001-36322C00L1A (DIN 41612-32AB-FS) |
32 |
2,5 |
| 134926 |
9001-36202C00L1A (DIN 41612-20AB-FS) |
20 |
2,5 |
| 134927 |
9001-36162C00L1A (DIN 41612-16A-FS) |
16 |
2,5 |
| 134928 |
9001-36102C00L1A (DIN 41612-10A-FS) |
10 |
2,5 |
| 134929 |
9001-3632W1C00A (DIN 41612-32AB-FS) |
32 |
13 |
| 134930 |
9001-3620W1C00A (DIN 41612-20AB-FS) |
20 |
13 |
| 134931 |
9001-3616W1C00A (DIN 41612-16A-FS) |
16 |
13 |
| 134932 |
9001-3610W1C00A (DIN 41612-10A-FS) |
10 |
13 |
| 134933 |
9001-3632W1C00L1A (DIN 41612-32AB-FS) |
32 |
13 |
| 134934 |
9001-3620W1C00L1A (DIN 41612-20AB-FS) |
20 |
13 |
| 134935 |
9001-3616W1C00L1A (DIN 41612-16A-FS) |
16 |
13 |
| 134936 |
9001-3610W1C00L1A (DIN 41612-10A-FS) |
10 |
13 |
| 134937 |
9001-3632W1C00L2A (DIN 41612-32AB-FS) |
32 |
13 |
| 134938 |
9001-3620W1C00L2A (DIN 41612-20AB-FS) |
20 |
13 |
| 134939 |
9001-3616W1C00L2A (DIN 41612-16A-FS) |
16 |
13 |
| 134940 |
9001-3610W1C00L2A (DIN 41612-10A-FS) |
10 |
13 |
| 134941 |
9001-3632W2C00A (DIN 41612-32AB-FS) |
32 |
17 |
| 134942 |
9001-3620W2C00A (DIN 41612-20AB-FS) |
20 |
17 |
| 134943 |
9001-3616W2C00A (DIN 41612-16A-FS) |
16 |
17 |
| 134944 |
9001-3610W2C00A (DIN 41612-10A-FS) |
10 |
17 |
| 134945 |
9001-3632W2C00L1A (DIN 41612-32AB-FS) |
32 |
17 |
| 134946 |
9001-3620W2C00L1A (DIN 41612-20AB-FS) |
20 |
17 |
| 134947 |
9001-3616W2C00L1A (DIN 41612-16A-FS) |
16 |
17 |
| 134948 |
9001-3610W2C00L1A (DIN 41612-10A-FS) |
10 |
17 |
| 134949 |
9001-3632W2C00L2A (DIN 41612-32AB-FS) |
32 |
17 |
| 134950 |
9001-3620W2C00L2A (DIN 41612-20AB-FS) |
20 |
17 |
| 134951 |
9001-3616W2C00L2A (DIN 41612-16A-FS) |
16 |
17 |
| 134952 |
9001-3610W2C00L2A (DIN 41612-10A-FS) |
10 |
17 |
| 134953 |
9001-36321C00PA (DIN 41612-32AB-FS) |
32 |
4,0 |
| 134954 |
9001-36201C00PA (DIN 41612-20AB-FS) |
20 |
4,0 |
| 134955 |
9001-36161C00PA (DIN 41612-16A-FS) |
16 |
4,0 |
| 134956 |
9001-36101C00PA (DIN 41612-10A-FS) |
10 |
4,0 |
| 134957 |
9001-36321C00PL1A (DIN 41612-32AB-FS) |
32 |
4,0 |
| 134958 |
9001-36201C00PL1A (DIN 41612-20AB-FS) |
20 |
4,0 |
| 134959 |
9001-36161C00PL1A (DIN 41612-16A-FS) |
16 |
4,0 |
| 134960 |
9001-36101C00PL1A (DIN 41612-10A-FS) |
10 |
4,0 |
| 134961 |
9001-36321C00PL2A (DIN 41612-32AB-FS) |
32 |
4,0 |
| 134962 |
9001-36201C00PL2A (DIN 41612-20AB-FS) |
20 |
4,0 |
| 134963 |
9001-36161C00PL2A (DIN 41612-16A-FS) |
16 |
4,0 |
| 134964 |
9001-36101C00PL2A (DIN 41612-10A-FS) |
10 |
4,0 |
| 134965 |
9001-36322C00PA (DIN 41612-32AB-FS) |
32 |
2,5 |
| 134966 |
9001-36202C00PA (DIN 41612-20AB-FS) |
20 |
2,5 |
| 134967 |
9001-36162C00PA (DIN 41612-16A-FS) |
16 |
2,5 |
| 134968 |
9001-36102C00PA (DIN 41612-10A-FS) |
10 |
2,5 |
| 134969 |
9001-36322C00PL1A (DIN 41612-32AB-FS) |
32 |
2,5 |
| 134970 |
9001-36202C00PL1A (DIN 41612-20AB-FS) |
20 |
2,5 |
| 134971 |
9001-36162C00PL1A (DIN 41612-16A-FS) |
16 |
2,5 |
| 134972 |
9001-36102C00PL1A (DIN 41612-10A-FS) |
10 |
2,5 |
| 134973 |
9001-3632W1C00PA (DIN 41612-32AB-FS) |
32 |
13 |
| 134974 |
9001-3620W1C00PA (DIN 41612-20AB-FS) |
20 |
13 |
| 134975 |
9001-3616W1C00PA (DIN 41612-16A-FS) |
16 |
13 |
| 134976 |
9001-3610W1C00PA (DIN 41612-10A-FS) |
10 |
13 |
| 134977 |
9001-3632W1C00PL1A (DIN 41612-32AB-FS) |
32 |
13 |
| 134978 |
9001-3620W1C00PL1A (DIN 41612-20AB-FS) |
20 |
13 |
| 134979 |
9001-3616W1C00PL1A (DIN 41612-16A-FS) |
16 |
13 |
| 134980 |
9001-3610W1C00PL1A (DIN 41612-10A-FS) |
10 |
13 |
| 134981 |
9001-3632W1C00PL2A (DIN 41612-32AB-FS) |
32 |
13 |
| 134982 |
9001-3620W1C00PL2A (DIN 41612-20AB-FS) |
20 |
13 |
| 134983 |
9001-3616W1C00PL2A (DIN 41612-16A-FS) |
16 |
13 |
| 134984 |
9001-3610W1C00PL2A (DIN 41612-10A-FS) |
10 |
13 |
| 134985 |
9001-3632W2C00PA (DIN 41612-32AB-FS) |
32 |
17 |
| 134986 |
9001-3620W2C00PA (DIN 41612-20AB-FS) |
20 |
17 |
| 134987 |
9001-3616W2C00PA (DIN 41612-16A-FS) |
16 |
17 |
| 134988 |
9001-3610W2C00PA (DIN 41612-10A-FS) |
10 |
17 |
| 134989 |
9001-3632W2C00PL1A (DIN 41612-32AB-FS) |
32 |
17 |
| 134990 |
9001-3620W2C00PL1A (DIN 41612-20AB-FS) |
20 |
17 |
| 134991 |
9001-3616W2C00PL1A (DIN 41612-16A-FS) |
16 |
17 |
| 134992 |
9001-3610W2C00PL1A (DIN 41612-10A-FS) |
10 |
17 |
| 134993 |
9001-3632W2C00PL2A (DIN 41612-32AB-FS) |
32 |
17 |
| 134994 |
9001-3620W2C00PL2A (DIN 41612-20AB-FS) |
20 |
17 |
| 134995 |
9001-3616W2C00PL2A (DIN 41612-16A-FS) |
16 |
17 |
| 134996 |
9001-3610W2C00PL2A (DIN 41612-10A-FS) |
10 |
17 |
