“Blue Fairy” T10 Model PCB Soldering Power Transformers
 |
|
1.Features:
- Fully-encapsulated printed circuit board being able to be directly welded
and assembled, easy to use, perfect outline;
- Compact in structure, solid, vibration-proof, moisture-proof, flame-resistant,
and high dielectric strength;
- Higher power density with smaller size;
- Economical transformers in application, competitive price
2.Ambient Conditions:
- Ambient temperature: -10...+40°C;
- Relative humid <90% при 40°C;
- Atmospheric pressure: 860~1060mbar (650~800mmHg approximately);
3.Insulation Rating: Class B (130°C).
4.Safety features:
- Dielectric resistance: >1000MОм in normal condition;
- Insulation withstand voltages: Better than GB/T15290 standard requirements.
- Fire retardancy: In conformity with UL94-Vo;
- Insulation impact strength: Continuously 10 times impact of 6KV (50HZ)/50μS;
5. Rated Power: 10VA
6. Rated Voltage:
1) Standard series:
Primary: 220V±10% 50Hz/60Hz
Secondary:
single output:6V, 7.5V, 9V, 12V, 15V, 18V, 21V, 24V, 27V;
double output:2x6V, 2x7.5V, 2x9V, 2x12V, 2x15V, 2x18V, 2x21V, 2x24V, 2x27V
2) Non-standard series: It can be customized based on customer's requirements.
7. Universal Technical Parameters of T10 Series Standard Product:
| No. |
Model |
Power |
Idle
Current |
Idle
Loss |
Voltage
Regulation
Ratio |
Temperature
Rise |
Weight
(g) |
Dimension
LxWxH
(mm3) |
| 17 |
T10 |
10VA |
<25mA |
<1.0W |
<13% |
<22°C |
300 |
51x43x36 |

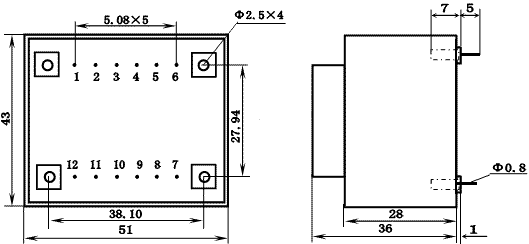

8.Outline, Installation Dimension and Detailed Technical Parameters of T10
| Primary pins |
Primary voltage |
Frequency |
Primary current |
| Rating |
Max. |
Idle |
Full load |
| 1-6 |
220V |
242V |
50Hz /60Hz |
<25mA |
<59mA |
| Model |
Windings |
Secondary voltage |
Secondary
current
(mA) |
Secondary
Pins |
Equivalent
internal
resistance
(Ом) |
| Idle |
Full load |
| T10-01 |
 |
6.8V |
6V |
1667 |
8-11 |
0.65 |
| T10-01B |
8.5V |
7.5V |
1333 |
1 |
| T10-02 |
10.2V |
9V |
1111 |
1.5 |
| T10-03 |
13.6V |
12V |
833 |
2.6 |
| T10-04 |
17V |
15V |
667 |
4 |
| T10-05 |
20.4V |
18V |
556 |
6 |
| T10-05B |
23.8V |
21V |
467 |
8 |
| T10-06 |
27.1V |
24V |
417 |
10.4 |
| T10-06B |
30.5V |
27V |
370 |
13.2 |
| T10-07 |
 |
2x6.8V |
2x6V |
2x833 |
7-8
11-12 |
2x1.3 |
| T10-07B |
2x8.5V |
2x7.5V |
2x677 |
2x2 |
| T10-08 |
2x10.2V |
2x9V |
2x556 |
2x3 |
| T10-09 |
2x13.6V |
2x12V |
2x417 |
2x5.2 |
| T10-10 |
2x17V |
2x15V |
2x333 |
2x8 |
| T10-11 |
2x20.4V |
2x18V |
2x278 |
2x12 |
| T10-11B |
2x23.8V |
2x21V |
2x238 |
2x16 |
| T10-12 |
2x27.1V |
2x24V |
2x208 |
2x21 |
| T10-12B |
2x30.5V |
2x27V |
2x185 |
2x26.4 |
|
|
|
|
|
