TA0913 Series
Microminiature Precision AC Current Transformers

1.Features:

• Being able to be directly welded on PCB;
• Super small and light in structure, high precision and elegant outline;
• Fully encapsulated, strong mechanical and environmental endurance, strong insulating capability?

2.Conditions of usage:

• Circumstance temperature: -55...+85°C;
• Relative humidity <90% when the temperature is 40°C;
• Atmospheric pressure: 860~1060mbar (about 650~800mmHg);

3.Range of working Frequency: 20Hz~20kHz

4.Insulation Rating: Class F (155°C).

5.Safety features:

• Insulation resistance: >1000MOm in normal condition;
• Insulation withstand voltages: 6000V 50Hz/1min;
• Fire retardancy: In conformity with UL94-Vo

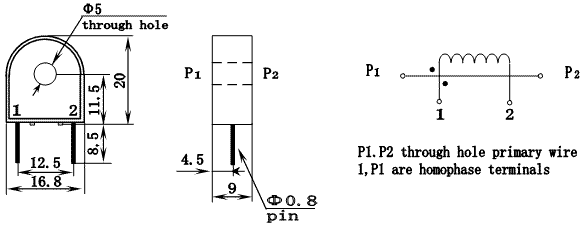

6.Outline Drawing, Installation Dimention and Coil Diagram

7.Typical Usage and Technical Parameters:

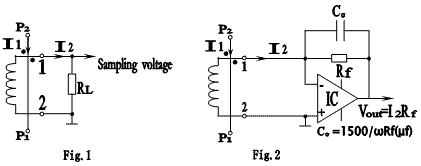

1) The parameters are listed in Table 1 while the sampling voltage is obtained directly by using a resistor (as shown in Fig.1 below).
2) The parameters are listed in Table 2 while the sampling voltage is obtained by using an IC (as shown in Fig.2 below)

Table 1

Model	Rated Input current	Rated Output current	Rated sampling resistance	Rated sampling voltage	Phase Shift	Non Linearity	Linear Range	Withstand Voltage
TA0913-1M	5A	5mA	150 Om	0.75V	<15`	<0.2%	>1.5 times of rated value	>6kV
TA0913-2M	5A	2.5mA	600 Om	1.5V	<10`

Table 2

Model	Rated Input current	Rated Output current	Rated sampling voltage	Phase Shift	Non Linearity	Linear Range	Withstand Voltage
TA0913-1M	5A	5mA	<1/2 IC`s power supply	<5`	<0.1%	>2 times of rated value	>6kV
TA0913-2M	5A	2.5mA

8.Attention:

• The primary of the current transformer must be connected in series with the loop of the measured current. The secondary should operate in a mode of near short circuit.
• The secondary of the current transformer is not allowed to be open circuit, Do Not install any fuse.
