| Разъемы >> Соединители DIN 41612 >> DIN 41612 вилки прямые |

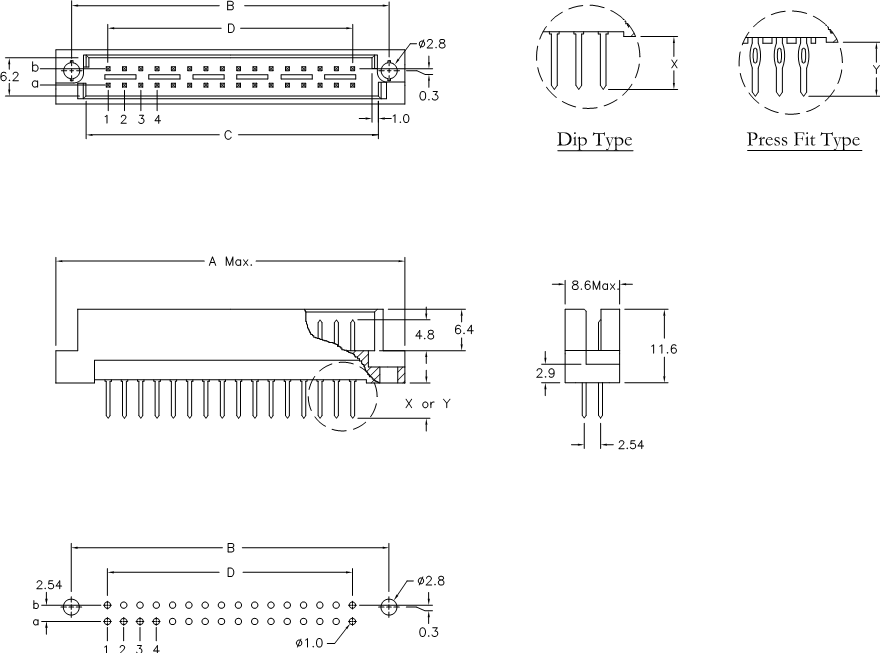

DIN 41612 9001-37/9001-47 серии типа Q |
|
вилки прямые 2-х рядные на плату, шаг 2,54/5,08 мм
|
| .jpg)
.jpg)
|
| 9001 |
- |
3 |
7 |
32 |
1 |
C |
00 |
P |
L1 |
A |
| 1 |
|
2 |
3 |
4 |
5 |
6 |
7 |
8 |
9 |
10 |
1) серия
2) 3: шаг 2,54 мм
4: шаг 5,08 мм
3) 7: вилка
4) количество позиций
5) длина выводов в соответствии
с таблицей:
Длина
выводов,
мм |
1 |
2 |
W1 |
W2 |
| X |
4,0 |
2,5 |
13 |
17 |
| Y |
4,6 |
6,3 |
13 |
17 |
6) C: частичное золочение контактов
7) G/F
8) [пусто]: выводы под пайку
P: выводы под запрессовку
9) [пусто]: без замка в плату
L1: с замком в плату
толщиной 1,6...2,0 мм (см. PDF файл)
L2: с замком в плату
толщиной 2,8...3,2 мм (см. PDF файл)
10) A: упаковка в поддоны
|
Вилки прямые 3-х рядные на плату, шаг 2,54/5,08 мм поставляются со склада в Москве и под заказ.
Контакты вставлены в отверстия в соответствии с таблицей: |
| 2,54 |
32 |
a b |
 |
| 20 |
a b |
|
| 16 |
a - |
 |
| 10 |
a - |
|
| 5,08 |
16 |
a b |
 |
| 10 |
a b |
|
| 8 |
a - |
 |
| 5 |
a - |
|
|
Совместимы с 2-х рядными розетками:
9001-36 типа Half B
9001-38 типа Half Q
|
Электрические характеристики:
Максимальный ток: 2,0 А AC/DC
Сопротивление контактов: 20 мОм
Сопротивление изоляции: 1000 МОм (мин)
Диэлектрическая стойкость: 1000 V AC.
Рабочая температура: -55...+125°С
Материал изолятора: термопластичный стеклонаполненный полиэстер (UL94V-0)
Материал контактов: медный сплав |
Вилки прямые 2-х рядные (DIN 41612), шаг 2,54 мм:
| 24380 |
9001-37321C00A (DIN 41612-32AB-MS) |
32 |
4,0 |
| 134997 |
9001-37201C00A (DIN 41612-20AB-MS) |
20 |
4,0 |
| 134998 |
9001-37161C00A (DIN 41612-16A-MS) |
16 |
4,0 |
| 134999 |
9001-37101C00A (DIN 41612-10A-MS) |
10 |
4,0 |
| 135000 |
9001-37321C00L1A (DIN 41612-32AB-MS) |
32 |
4,0 |
| 135001 |
9001-37201C00L1A (DIN 41612-20AB-MS) |
20 |
4,0 |
| 135002 |
9001-37161C00L1A (DIN 41612-16A-MS) |
16 |
4,0 |
| 135003 |
9001-37101C00L1A (DIN 41612-10A-MS) |
10 |
4,0 |
| 135004 |
9001-37321C00L2A (DIN 41612-32AB-MS) |
32 |
4,0 |
| 135005 |
9001-37201C00L2A (DIN 41612-20AB-MS) |
20 |
4,0 |
| 135006 |
9001-37161C00L2A (DIN 41612-16A-MS) |
16 |
4,0 |
| 135007 |
9001-37101C00L2A (DIN 41612-10A-MS) |
10 |
4,0 |
| 135008 |
9001-37322C00A (DIN 41612-32AB-MS) |
32 |
2,5 |
| 135009 |
9001-37202C00A (DIN 41612-20AB-MS) |
20 |
2,5 |
| 135010 |
9001-37162C00A (DIN 41612-16A-MS) |
16 |
2,5 |
| 135011 |
9001-37102C00A (DIN 41612-10A-MS) |
10 |
2,5 |
| 135012 |
9001-37322C00L1A (DIN 41612-32AB-MS) |
32 |
2,5 |
| 135013 |
9001-37202C00L1A (DIN 41612-20AB-MS) |
20 |
2,5 |
| 135014 |
9001-37162C00L1A (DIN 41612-16A-MS) |
16 |
2,5 |
| 135015 |
9001-37102C00L1A (DIN 41612-10A-MS) |
10 |
2,5 |
| 135016 |
9001-3732W1C00A (DIN 41612-32AB-MS) |
32 |
13 |
| 135017 |
9001-3720W1C00A (DIN 41612-20AB-MS) |
20 |
13 |
| 135018 |
9001-3716W1C00A (DIN 41612-16A-MS) |
16 |
13 |
| 135019 |
9001-3710W1C00A (DIN 41612-10A-MS) |
10 |
13 |
| 135020 |
9001-3732W1C00L1A (DIN 41612-32AB-MS) |
32 |
13 |
| 135021 |
9001-3720W1C00L1A (DIN 41612-20AB-MS) |
20 |
13 |
| 135022 |
9001-3716W1C00L1A (DIN 41612-16A-MS) |
16 |
13 |
| 135023 |
9001-3710W1C00L1A (DIN 41612-10A-MS) |
10 |
13 |
| 135024 |
9001-3732W1C00L2A (DIN 41612-32AB-MS) |
32 |
13 |
| 135025 |
9001-3720W1C00L2A (DIN 41612-20AB-MS) |
20 |
13 |
| 135026 |
9001-3716W1C00L2A (DIN 41612-16A-MS) |
16 |
13 |
| 135027 |
9001-3710W1C00L2A (DIN 41612-10A-MS) |
10 |
13 |
| 135028 |
9001-3732W2C00A (DIN 41612-32AB-MS) |
32 |
17 |
| 135029 |
9001-3720W2C00A (DIN 41612-20AB-MS) |
20 |
17 |
| 135030 |
9001-3716W2C00A (DIN 41612-16A-MS) |
16 |
17 |
| 135031 |
9001-3710W2C00A (DIN 41612-10A-MS) |
10 |
17 |
| 135032 |
9001-3732W2C00L1A (DIN 41612-32AB-MS) |
32 |
17 |
| 135033 |
9001-3720W2C00L1A (DIN 41612-20AB-MS) |
20 |
17 |
| 135034 |
9001-3716W2C00L1A (DIN 41612-16A-MS) |
16 |
17 |
| 135035 |
9001-3710W2C00L1A (DIN 41612-10A-MS) |
10 |
17 |
| 135036 |
9001-3732W2C00L2A (DIN 41612-32AB-MS) |
32 |
17 |
| 135037 |
9001-3720W2C00L2A (DIN 41612-20AB-MS) |
20 |
17 |
| 135038 |
9001-37321C00PL2A (DIN 41612-16A-MS) |
16 |
17 |
| 135039 |
9001-37201C00PL2A (DIN 41612-10A-MS) |
10 |
17 |
| 135040 |
9001-37161C00PL2A (DIN 41612-32AB-MS) |
32 |
4,0 |
| 135041 |
9001-37101C00PL2A (DIN 41612-20AB-MS) |
20 |
4,0 |
| 135042 |
9001-37322C00PA (DIN 41612-16A-MS) |
16 |
4,0 |
| 135043 |
9001-37202C00PA (DIN 41612-10A-MS) |
10 |
4,0 |
| 135044 |
9001-37162C00PA (DIN 41612-32AB-MS) |
32 |
4,0 |
| 135045 |
9001-37102C00PA (DIN 41612-20AB-MS) |
20 |
4,0 |
| 135046 |
9001-37322C00PL1A (DIN 41612-16A-MS) |
16 |
4,0 |
| 135047 |
9001-37202C00PL1A (DIN 41612-10A-MS) |
10 |
4,0 |
| 135048 |
9001-37321C00PL2A (DIN 41612-32AB-MS) |
32 |
4,0 |
| 135049 |
9001-37201C00PL2A (DIN 41612-20AB-MS) |
20 |
4,0 |
| 135050 |
9001-37161C00PL2A (DIN 41612-16A-MS) |
16 |
4,0 |
| 135051 |
9001-37101C00PL2A (DIN 41612-10A-MS) |
10 |
4,0 |
| 135052 |
9001-37322C00PA (DIN 41612-32AB-MS) |
32 |
2,5 |
| 135053 |
9001-37202C00PA (DIN 41612-20AB-MS) |
20 |
2,5 |
| 135054 |
9001-37162C00PA (DIN 41612-16A-MS) |
16 |
2,5 |
| 135055 |
9001-37102C00PA (DIN 41612-10A-MS) |
10 |
2,5 |
| 135056 |
9001-37322C00PL1A (DIN 41612-32AB-MS) |
32 |
2,5 |
| 135057 |
9001-37202C00PL1A (DIN 41612-20AB-MS) |
20 |
2,5 |
| 135058 |
9001-37162C00PL1A (DIN 41612-16A-MS) |
16 |
2,5 |
| 135059 |
9001-37102C00PL1A (DIN 41612-10A-MS) |
10 |
2,5 |
| 135060 |
9001-3732W1C00PA (DIN 41612-32AB-MS) |
32 |
13 |
| 135061 |
9001-3720W1C00PA (DIN 41612-20AB-MS) |
20 |
13 |
| 135062 |
9001-3716W1C00PA (DIN 41612-16A-MS) |
16 |
13 |
| 135063 |
9001-3710W1C00PA (DIN 41612-10A-MS) |
10 |
13 |
| 135064 |
9001-3732W1C00PL1A (DIN 41612-32AB-MS) |
32 |
13 |
| 135065 |
9001-3720W1C00PL1A (DIN 41612-20AB-MS) |
20 |
13 |
| 135066 |
9001-3716W1C00PL1A (DIN 41612-16A-MS) |
16 |
13 |
| 135067 |
9001-3710W1C00PL1A (DIN 41612-10A-MS) |
10 |
13 |
| 135068 |
9001-3732W1C00PL2A (DIN 41612-32AB-MS) |
32 |
13 |
| 135069 |
9001-3720W1C00PL2A (DIN 41612-20AB-MS) |
20 |
13 |
| 135070 |
9001-3716W1C00PL2A (DIN 41612-16A-MS) |
16 |
13 |
| 135071 |
9001-3710W1C00PL2A (DIN 41612-10A-MS) |
10 |
13 |
| 135072 |
9001-3732W2C00PA (DIN 41612-32AB-MS) |
32 |
17 |
| 135073 |
9001-3720W2C00PA (DIN 41612-20AB-MS) |
20 |
17 |
| 135074 |
9001-3716W2C00PA (DIN 41612-16A-MS) |
16 |
17 |
| 135075 |
9001-3710W2C00PA (DIN 41612-10A-MS) |
10 |
17 |
| 135076 |
9001-3732W2C00PL1A (DIN 41612-32AB-MS) |
32 |
17 |
| 135077 |
9001-3720W2C00PL1A (DIN 41612-20AB-MS) |
20 |
17 |
| 135078 |
9001-3716W2C00PL1A (DIN 41612-16A-MS) |
16 |
17 |
| 135079 |
9001-3710W2C00PL1A (DIN 41612-10A-MS) |
10 |
17 |
| 135080 |
9001-3732W2C00PL2A (DIN 41612-32AB-MS) |
32 |
17 |
| 135081 |
9001-3720W2C00PL2A (DIN 41612-20AB-MS) |
20 |
17 |
| 135082 |
9001-3716W2C00PL2A (DIN 41612-16A-MS) |
16 |
17 |
| 135083 |
9001-3710W2C00PL2A (DIN 41612-10A-MS) |
10 |
17 |
Вилки прямые 2-х рядные (DIN 41612), шаг 5,08 мм:
| 135195 |
9001-47161C00A (DIN 41612-16AB-MS) |
16 |
4,0 |
| 135196 |
9001-47101C00A (DIN 41612-10AB-MS) |
10 |
4,0 |
| 135197 |
9001-4781C00A (DIN 41612-8A-MS) |
8 |
4,0 |
| 135198 |
9001-4751C00A (DIN 41612-5A-MS) |
5 |
4,0 |
| 135199 |
9001-47161C00L1A (DIN 41612-16AB-MS) |
16 |
4,0 |
| 135200 |
9001-47101C00L1A (DIN 41612-10AB-MS) |
10 |
4,0 |
| 135201 |
9001-4781C00L1A (DIN 41612-8A-MS) |
8 |
4,0 |
| 135202 |
9001-4751C00L1A (DIN 41612-5A-MS) |
5 |
4,0 |
| 135203 |
9001-47161C00L2A (DIN 41612-16AB-MS) |
16 |
4,0 |
| 135204 |
9001-47101C00L2A (DIN 41612-10AB-MS) |
10 |
4,0 |
| 135205 |
9001-4781C00L2A (DIN 41612-8A-MS) |
8 |
4,0 |
| 135206 |
9001-4751C00L2A (DIN 41612-5A-MS) |
5 |
4,0 |
| 135207 |
9001-47162C00A (DIN 41612-16AB-MS) |
16 |
2,5 |
| 135208 |
9001-47102C00A (DIN 41612-10AB-MS) |
10 |
2,5 |
| 135209 |
9001-4782C00A (DIN 41612-8A-MS) |
8 |
2,5 |
| 135210 |
9001-4752C00A (DIN 41612-5A-MS) |
5 |
2,5 |
| 135211 |
9001-47162C00L1A (DIN 41612-16AB-MS) |
16 |
2,5 |
| 135212 |
9001-47102C00L1A (DIN 41612-10AB-MS) |
10 |
2,5 |
| 135213 |
9001-4782C00L1A (DIN 41612-8A-MS) |
8 |
2,5 |
| 135214 |
9001-4752C00L1A (DIN 41612-5A-MS) |
5 |
2,5 |
| 135215 |
9001-4716W1C00A (DIN 41612-16AB-MS) |
16 |
13 |
| 135216 |
9001-4710W1C00A (DIN 41612-10AB-MS) |
10 |
13 |
| 135217 |
9001-478W1C00A (DIN 41612-8A-MS) |
8 |
13 |
| 135218 |
9001-475W1C00A (DIN 41612-5A-MS) |
5 |
13 |
| 135219 |
9001-4716W1C00L1A (DIN 41612-16AB-MS) |
16 |
13 |
| 135220 |
9001-4710W1C00L1A (DIN 41612-10AB-MS) |
10 |
13 |
| 135221 |
9001-478W1C00L1A (DIN 41612-8A-MS) |
8 |
13 |
| 135222 |
9001-475W1C00L1A (DIN 41612-5A-MS) |
5 |
13 |
| 135223 |
9001-4716W1C00L2A (DIN 41612-16AB-MS) |
16 |
13 |
| 135224 |
9001-4710W1C00L2A (DIN 41612-10AB-MS) |
10 |
13 |
| 135225 |
9001-478W1C00L2A (DIN 41612-8A-MS) |
8 |
13 |
| 135226 |
9001-475W1C00L2A (DIN 41612-5A-MS) |
5 |
13 |
| 135227 |
9001-4716W2C00A (DIN 41612-16AB-MS) |
16 |
17 |
| 135228 |
9001-4710W2C00A (DIN 41612-10AB-MS) |
10 |
17 |
| 135229 |
9001-478W2C00A (DIN 41612-8A-MS) |
8 |
17 |
| 135230 |
9001-475W2C00A (DIN 41612-5A-MS) |
5 |
17 |
| 135231 |
9001-4716W2C00L1A (DIN 41612-16AB-MS) |
16 |
17 |
| 135232 |
9001-4710W2C00L1A (DIN 41612-10AB-MS) |
10 |
17 |
| 135233 |
9001-478W2C00L1A (DIN 41612-8A-MS) |
8 |
17 |
| 135234 |
9001-475W2C00L1A (DIN 41612-5A-MS) |
5 |
17 |
| 135235 |
9001-4716W2C00L2A (DIN 41612-16AB-MS) |
16 |
17 |
| 135236 |
9001-4710W2C00L2A (DIN 41612-10AB-MS) |
10 |
17 |
| 135237 |
9001-47161C00PL2A (DIN 41612-8A-MS) |
8 |
17 |
| 135238 |
9001-47101C00PL2A (DIN 41612-5A-MS) |
5 |
17 |
| 135239 |
9001-4781C00PL2A (DIN 41612-16AB-MS) |
16 |
4,0 |
| 135240 |
9001-4751C00PL2A (DIN 41612-10AB-MS) |
10 |
4,0 |
| 135241 |
9001-47162C00PA (DIN 41612-8A-MS) |
8 |
4,0 |
| 135242 |
9001-47102C00PA (DIN 41612-5A-MS) |
5 |
4,0 |
| 135243 |
9001-4782C00PA (DIN 41612-16AB-MS) |
16 |
4,0 |
| 135244 |
9001-4752C00PA (DIN 41612-10AB-MS) |
10 |
4,0 |
| 135245 |
9001-47162C00PL1A (DIN 41612-8A-MS) |
8 |
4,0 |
| 135246 |
9001-47102C00PL1A (DIN 41612-5A-MS) |
5 |
4,0 |
| 135247 |
9001-47161C00PL2A (DIN 41612-16AB-MS) |
16 |
4,0 |
| 135248 |
9001-47101C00PL2A (DIN 41612-10AB-MS) |
10 |
4,0 |
| 135249 |
9001-4781C00PL2A (DIN 41612-8A-MS) |
8 |
4,0 |
| 135250 |
9001-4751C00PL2A (DIN 41612-5A-MS) |
5 |
4,0 |
| 135251 |
9001-47162C00PA (DIN 41612-16AB-MS) |
16 |
2,5 |
| 135252 |
9001-47102C00PA (DIN 41612-10AB-MS) |
10 |
2,5 |
| 135253 |
9001-4782C00PA (DIN 41612-8A-MS) |
8 |
2,5 |
| 135254 |
9001-4752C00PA (DIN 41612-5A-MS) |
5 |
2,5 |
| 135255 |
9001-47162C00PL1A (DIN 41612-16AB-MS) |
16 |
2,5 |
| 135256 |
9001-47102C00PL1A (DIN 41612-10AB-MS) |
10 |
2,5 |
| 135257 |
9001-4782C00PL1A (DIN 41612-8A-MS) |
8 |
2,5 |
| 135258 |
9001-4752C00PL1A (DIN 41612-5A-MS) |
5 |
2,5 |
| 135259 |
9001-4716W1C00PA (DIN 41612-16AB-MS) |
16 |
13 |
| 135260 |
9001-4710W1C00PA (DIN 41612-10AB-MS) |
10 |
13 |
| 135261 |
9001-478W1C00PA (DIN 41612-8A-MS) |
8 |
13 |
| 135262 |
9001-475W1C00PA (DIN 41612-5A-MS) |
5 |
13 |
| 135263 |
9001-4716W1C00PL1A (DIN 41612-16AB-MS) |
16 |
13 |
| 135264 |
9001-4710W1C00PL1A (DIN 41612-10AB-MS) |
10 |
13 |
| 135265 |
9001-478W1C00PL1A (DIN 41612-8A-MS) |
8 |
13 |
| 135266 |
9001-475W1C00PL1A (DIN 41612-5A-MS) |
5 |
13 |
| 135267 |
9001-4716W1C00PL2A (DIN 41612-16AB-MS) |
16 |
13 |
| 135268 |
9001-4710W1C00PL2A (DIN 41612-10AB-MS) |
10 |
13 |
| 135269 |
9001-478W1C00PL2A (DIN 41612-8A-MS) |
8 |
13 |
| 135270 |
9001-475W1C00PL2A (DIN 41612-5A-MS) |
5 |
13 |
| 135271 |
9001-4716W2C00PA (DIN 41612-16AB-MS) |
16 |
17 |
| 135272 |
9001-4710W2C00PA (DIN 41612-10AB-MS) |
10 |
17 |
| 135273 |
9001-478W2C00PA (DIN 41612-8A-MS) |
8 |
17 |
| 135274 |
9001-475W2C00PA (DIN 41612-5A-MS) |
5 |
17 |
| 135275 |
9001-4716W2C00PL1A (DIN 41612-16AB-MS) |
16 |
17 |
| 135276 |
9001-4710W2C00PL1A (DIN 41612-10AB-MS) |
10 |
17 |
| 135277 |
9001-478W2C00PL1A (DIN 41612-8A-MS) |
8 |
17 |
| 135278 |
9001-475W2C00PL1A (DIN 41612-5A-MS) |
5 |
17 |
| 135279 |
9001-4716W2C00PL2A (DIN 41612-16AB-MS) |
16 |
17 |
| 135280 |
9001-4710W2C00PL2A (DIN 41612-10AB-MS) |
10 |
17 |
| 135281 |
9001-478W2C00PL2A (DIN 41612-8A-MS) |
8 |
17 |
| 135282 |
9001-475W2C00PL2A (DIN 41612-5A-MS) |
5 |
17 |
Размеры, мм
Количество
позиций |
A |
B |
C |
D |
| 32/16/8 |
55,00 |
49,36 |
44,60 |
38,10 |
| 20/10/5 |
39,80 |
34,12 |
29,36 |
22,86 |
|
|
|
|
|
- Цены, опубликованные в Магазине, могут не являться окончательными и предназначены только для предварительного ознакомления.
Информацию о наличии товаров и свежих ценах уточняйте у менеджеров, они устанавливают окончательные цены при оформлении заказа в зависимости от количества товара и истории клиента. Или нажмите ссылку:
sales@dart.ru
- Представленная техническая информация и размеры на чертежах, опубликованных на сайте, носят справочный характер и не предназначены для использования в конструкторской документации без согласования с нами.
Для получения актуализированной технической информации нажмите ссылку:
alex@dart.ru
- Возможность поставки товаров, где не указан код товара, уточняйте у наших менеджеров.
- Перед закладкой компонентов в серийные изделия необходимо запрашивать образцы!
|
|
|
|
|
