| Фурнитура - Кабельные вводы (изоляторы проходные) |

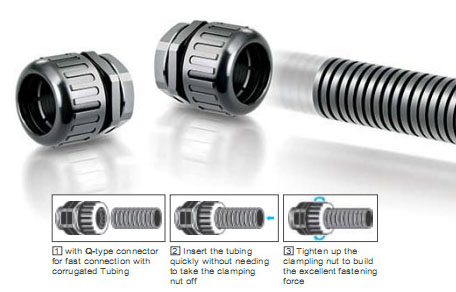

Кислото-щелочностойкие быстромонтируемые фитинги
для гофрированных труб
 |
Резьба: метрическая, PG, G(PF)
и NPT .

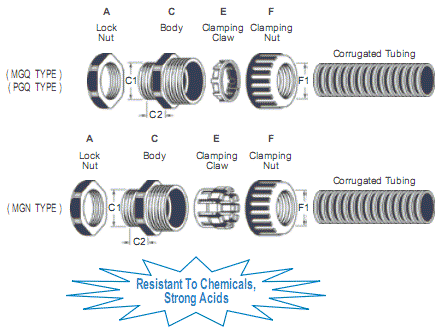

Материал: Кислото-щелочностойкий термопластический полимер для частей A, C, F.
Цвет: черный
Степень защиты: IP54.
Рабочая температура: - 40°C...+100°C.
|
| M12x1,5 |
150618 |
N-MGQ12-10-AA-B |
10,0 |
(NGP-07B-AA)
1/4" |
12,0 |
12-12,3 |
9,0 |
7,8 |
50 |
| M16x1,5 |
150619 |
N-MGQ16-10-ST-AA-B |
10,0 |
(NGP-07B-AA)
1/4" |
16,0 |
16-16,3 |
10,0 |
7,8 |
50 |
| 150620 |
N-MGQ16-13-ST-AA-B |
13,0 |
(NGP-10B-AA)
5/16" |
16,0 |
16-16,3 |
10,0 |
10,5 |
50 |
| 150621 |
N-MGQ16-15-ST-AA-B |
16,0 |
(NGP-12B-AA)
3/8" |
16,0 |
16-16,3 |
10,0 |
11,0 |
50 |
| 150622 |
N-MGQ16-18-ST-AA-B |
18,3 |
(NGP-14B-AA)
3/8" |
16,0 |
16-16,3 |
10,0 |
11,0 |
50 |
| M20x1,5 |
150623 |
N-MGQ20-13-ST-AA-B |
13,0 |
(NGP-10B-AA)
5/16" |
20,0 |
20-20,3 |
10,0 |
10,0 |
50 |
| 150624 |
N-MGQ20-15-ST-AA-B |
16,0 |
(NGP-12B-AA)
3/8" |
20,0 |
20-20,3 |
10,0 |
14,5 |
50 |
| 150625 |
N-MGQ20-18-ST-AA-B |
18,3 |
(NGP-14B-AA)
3/8" |
20,0 |
20-20,3 |
10,0 |
14,5 |
50 |
| 150626 |
N-MGQ20-21-ST-AA-B |
22,0 |
(NGP-17B-AA)
1/2" |
20,0 |
20-20,3 |
10,0 |
14,5 |
50 |
| M25x1,5 |
150627 |
N-MGQ25-15-ST-AA-B |
16,0 |
(NGP-12B-AA)
3/8" |
25,0 |
25-25,4 |
12,0 |
14,5 |
50 |
| 150628 |
N-MGQ25-18-ST-AA-B |
18,3 |
(NGP-14B-AA)
3/8" |
25,0 |
25-25,4 |
12,0 |
14,5 |
50 |
| 150629 |
N-MGQ25-21-ST-AA-B |
22,0 |
(NGP-17B-AA)
1/2" |
25,0 |
25-25,4 |
10,0 |
19,0 |
50 |
| 150630 |
N-MGQ25-26-ST-AA-B |
26,5 |
(NGP-22B-AA)
3/4" |
25,0 |
25-25,4 |
10,0 |
19,0 |
50 |
| 150631 |
N-MGQ25-28-ST-AA-B |
28,5 |
(NGP-23B-AA)
3/4" |
25,0 |
25-25,4 |
10,0 |
19,0 |
50 |
| M32x1,5 |
150632 |
N-MGQ32-21-ST-AA-B |
22,0 |
(NGP-17B-AA)
1/2" |
32,0 |
32-32,4 |
12,0 |
19,0 |
10 |
| 150633 |
N-MGQ32-34-ST-AA-B |
34,5 |
(NGP-28B-AA)
1" |
32,0 |
32-32,4 |
10,0 |
26,2 |
10 |
| M40x1,5 |
150634 |
N-MGQ40-42-AA-B |
43,0 |
(NGP-36B-AA)
1 1/4" |
40,0 |
40-40,4 |
15,0 |
34,0 |
10 |
| M50x1,5 |
150635 |
N-MGQ50-48-AA-B |
48,0 |
(NGP-40B-AA)
1 1/2" |
50,0 |
50-50,4 |
22,0 |
41,0 |
10 |
| M63x1,5 |
150636 |
N-MGQ63-54-AA-B |
55,0 |
(NGP-47B-AA)
2" |
63,0 |
63-63,4 |
25,0 |
53,5 |
10 |
| 150637 |
N-MGQ63-60-AA-B |
61,0 |
(NGP-52B-AA)
2" |
63,0 |
63-63,4 |
25,0 |
53,0 |
10 |
| M90x2 |
150638 |
N-MGN90-88-AA-B |
90,0 |
(NGP-72B-AA)
3" |
90,0 |
90-91 |
25,0 |
79,0 |
2 |
| PG7 |
150639 |
N-PGQ7-10-AA-B |
10,0 |
(NGP-07B-AA)
1/4" |
12,5 |
12,5-12,8 |
8,5 |
8,0 |
50 |
| PG9 |
150640 |
N-PGQ9-10-AA-B |
10,0 |
(NGP-07B-AA)
1/4" |
15,2 |
15,2-15,5 |
9,0 |
8,0 |
50 |
| 150641 |
N-PGQ9-13-AA-B |
13,0 |
(NGP-10B-AA)
5/16" |
15,2 |
15,2-15,5 |
10,0 |
10,2 |
50 |
| PG11 |
150642 |
N-PGQ11-13-AA-B |
13,0 |
(NGP-10B-AA)
5/16" |
18,6 |
18,6-18,9 |
10,0 |
10,5 |
50 |
| 150643 |
N-PGQ11-15-AA-B |
16,0 |
(NGP-12B-AA)
3/8" |
18,6 |
18,6-18,9 |
10,0 |
13,5 |
50 |
| 150644 |
N-PGQ11-18-AA-B |
18,3 |
(NGP-14B-AA)
3/8" |
18,6 |
18,6-18,9 |
10,0 |
13,5 |
50 |
| PG13,5 |
150645 |
N-PGQ13,5-15-AA-B |
16,0 |
(NGP-12B-AA)
3/8" |
20,4 |
20,4-20,7 |
10,0 |
15,0 |
50 |
| 150646 |
N-PGQ13,5-18-AA-B |
18,3 |
(NGP-14B-AA)
3/8" |
20,4 |
20,4-20,7 |
10,0 |
15,0 |
50 |
| PG16 |
150647 |
N-PGQ16-15-AA-B |
16,0 |
(NGP-12B-AA)
3/8" |
22,5 |
22,5-22,8 |
11,0 |
14,5 |
50 |
| 150648 |
N-PGQ16-18-AA-B |
18,3 |
(NGP-14B-AA)
3/8" |
22,5 |
22,5-22,8 |
11,0 |
14,5 |
50 |
| 150649 |
N-PGQ16-21-AA-B |
22,0 |
(NGP-17B-AA)
1/2" |
22,5 |
22,5-22,8 |
10,0 |
16,0 |
50 |
| PG21 |
150650 |
N-PGQ21-21-AA-B |
22,0 |
(NGP-17B-AA)
1/2" |
28,3 |
28,3-28,7 |
12,5 |
18,5 |
50 |
| 150651 |
N-PGQ21-26-AA-B |
26,5 |
(NGP-22B-AA)
3/4" |
28,3 |
28,3-28,7 |
12,0 |
22,0 |
50 |
| 150652 |
N-PGQ21-28-AA-B |
28,5 |
(NGP-23B-AA)
3/4" |
28,3 |
28,3-28,7 |
12,0 |
22,0 |
50 |
| PG29 |
150653 |
N-PGQ29-34-AA-B |
34,5 |
(NGP-28B-AA)
1" |
37,0 |
37-37,4 |
12,0 |
28,0 |
10 |
| PG36 |
150654 |
N-PGQ36-42-AA-B |
43,0 |
(NGP-36B-AA)
1 1/4" |
47,0 |
47-47,4 |
13,0 |
37,0 |
10 |
| PG48 |
150655 |
N-PGQ48-54-AA-B |
55,0 |
(NGP-47B-AA)
2" |
59,3 |
59,3-59,7 |
16,0 |
51,5 |
10 |
| 150656 |
N-PGQ48-60-AA-B |
61,0 |
(NGP-52B-AA)
2" |
59,3 |
59,3-59,7 |
16,0 |
51,5 |
10 |
G(PF)
1/4 |
150657 |
N-FGQ13-10-AA-B |
10,0 |
(NGP-07B-AA)
1/4" |
13,157 |
13,2-13,4 |
9,0 |
8,0 |
50 |
G(PF)
3/8 |
150658 |
N-FGQ17-13-AA-B |
13,0 |
(NGP-10B-AA)
5/16" |
16,662 |
16,7-16,9 |
10,0 |
10,5 |
50 |
G(PF)
1/2 |
150659 |
N-FGQ21-13-AA-B |
13,0 |
(NGP-10B-AA)
5/16" |
20,955 |
21-21,2 |
10,0 |
10,5 |
50 |
| 150660 |
N-FGQ21-15-AA-B |
16,0 |
(NGP-12B-AA)
3/8" |
20,955 |
21-21,2 |
10,0 |
14,0 |
50 |
| 150661 |
N-FGQ21-18-AA-B |
18,3 |
(NGP-14B-AA)
3/8" |
20,955 |
21-21,2 |
10,0 |
14,0 |
50 |
| 150662 |
N-FGQ21-21-AA-B |
22,0 |
(NGP-17B-AA)
1/2" |
20,955 |
21-21,2 |
10,0 |
15,0 |
50 |
G(PF)
3/4 |
150663 |
N-FGQ26-15-AA-B |
16,0 |
(NGP-12B-AA)
3/8" |
26,441 |
26,5-26,8 |
12,0 |
14,5 |
50 |
| 150664 |
N-FGQ26-18-AA-B |
18,3 |
(NGP-14B-AA)
3/8" |
26,441 |
26,5-26,8 |
12,0 |
14,5 |
50 |
| 150665 |
N-FGQ26-21-AA-B |
22,0 |
(NGP-17B-AA)
1/2" |
26,441 |
26,5-26,8 |
12,5 |
19,0 |
50 |
| 150666 |
N-FGQ26-26-AA-B |
26,5 |
(NGP-22B-AA)
3/4" |
26,441 |
26,5-26,8 |
15,0 |
20,0 |
50 |
| 150667 |
N-FGQ26-28-AA-B |
28,5 |
(NGP-23B-AA)
3/4" |
26,441 |
26,5-26,8 |
15,0 |
20,0 |
50 |
G(PF)
1 |
150668 |
N-FGQ33-21-AA-B |
22,0 |
(NGP-17B-AA)
1/2" |
33,249 |
33,3-33,6 |
12,0 |
19,0 |
10 |
| 150669 |
N-FGQ33-34-AA-B |
34,5 |
(NGP-28B-AA)
1" |
33,249 |
33,3-33,6 |
15,0 |
27,0 |
10 |
G(PF)
1 1/4 |
150670 |
N-FGQ42-42-AA-B |
43,0 |
(NGP-36B-AA)
1 1/4" |
41,910 |
42-42,3 |
20,0 |
33,5 |
10 |
G(PF)
1 1/2 |
150671 |
N-FGQ48-48-AA-B |
48,0 |
(NGP-40B-AA)
1 1/2" |
47,803 |
48-48,4 |
20,0 |
41,0 |
10 |
G(PF)
2 |
150672 |
N-FGQ60-54-AA-B |
55,0 |
(NGP-47B-AA)
2" |
59,614 |
60-60,4 |
20,0 |
51,5 |
10 |
| 150673 |
N-FGQ60-60-AA-B |
61,0 |
(NGP-52B-AA)
2" |
59,614 |
60-60,4 |
20,0 |
51,5 |
10 |
G(PF)
3 |
150674 |
N-FGN88-88-AA-B |
90,0 |
(NGP-72B-AA)
3" |
87,884 |
88-89 |
25,0 |
78,0 |
2 |
| NPT 1/2 |
150675 |
N-NPQ21-15-AA-B |
16,0 |
(NGP-12B-AA)
3/8" |
21,223 |
- |
13,0 |
14,5 |
50 |
| NPT 1/2 |
150676 |
N-NPQ21-18-AA-B |
18,3 |
(NGP-14B-AA)
3/8" |
21,223 |
- |
13,0 |
14,5 |
50 |
| NPT 3/4 |
150677 |
N-NPQ26-21-AA-B |
22,0 |
(NGP-17B-AA)
1/2" |
26,568 |
- |
15,0 |
19,5 |
50 |
|
|
|
|
- Цены, опубликованные в Магазине, могут не являться окончательными и предназначены только для предварительного ознакомления.
Информацию о наличии товаров и свежих ценах уточняйте у менеджеров, они устанавливают окончательные цены при оформлении заказа в зависимости от количества товара и истории клиента. Или нажмите ссылку:
sales@dart.ru
- Представленная техническая информация и размеры на чертежах, опубликованных на сайте, носят справочный характер и не предназначены для использования в конструкторской документации без согласования с нами.
Для получения актуализированной технической информации нажмите ссылку:
alex@dart.ru
- Возможность поставки товаров, где не указан код товара, уточняйте у наших менеджеров.
- Перед закладкой компонентов в серийные изделия необходимо запрашивать образцы!
|
|
|
|
|
