“Blue Fairy” T5 Model PCB Soldering Power Transformers

1.Features:

• Fully-encapsulated printed circuit board being able to be directly welded and assembled, easy to use, perfect outline;
• Compact in structure, solid, vibration-proof, moisture-proof, flame-resistant, and high dielectric strength;
• Higher power density with smaller size;
• Economical transformers in application, competitive price

2.Ambient Conditions:

• Ambient temperature: -10...+40°C;
• Relative humid <90% при 40°C;
• Atmospheric pressure: 860~1060mbar (650~800mmHg approximately);

3.Insulation Rating: Class B (130°C).

4.Safety features:

• Dielectric resistance: >1000MОм in normal condition;
• Insulation withstand voltages: Better than GB/T15290 standard requirements.
• Fire retardancy: In conformity with UL94-Vo;
• Insulation impact strength: Continuously 10 times impact of 6KV (50HZ)/50μS;

5. Rated Power: 5VA

6. Rated Voltage:

1) Standard series:
Primary: 220V±10% 50Hz/60Hz
Secondary:
single output:6V, 7.5V, 9V, 12V, 15V, 18V, 21V, 24V, 27V;
double output:2x6V, 2x7.5V, 2x9V, 2x12V, 2x15V, 2x18V, 2x21V, 2x24V, 2x27V

2) Non-standard series: It can be customized based on customer's requirements.

7. Universal Technical Parameters of T5 Series Standard Product:

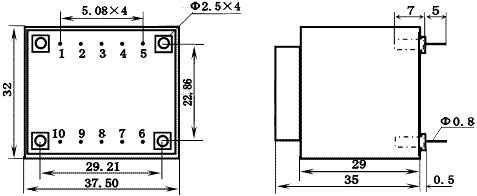

8.Outline, Installation Dimension and Detailed Technical Parameters of T5

Model	Windings	Secondary voltage		Secondary current (mA)	Secondary Pins	Equivalent internal resistance (Ом)
		Idle	Full load
T5-01		7.3V	6V	833	7-9	1.9
T5-01B		9.1V	7.5V	667		2.9
T5-02		10.9V	9V	556		4.2
T5-03		14.5V	12V	417		7.5
T5-04		18.2V	15V	333		11.7
T5-05		21.8V	18V	278		16.8
T5-05B		25.4V	21V	238		23
T5-06		29V	24V	208		30
T5-06B		32.7V	27V	185		38
T5-07		2x7.3V	2x6V	2x417	6-7 9-10	2x3.7
T5-07B		2x9.1V	2x7.5V	2x333		2x5.9
T5-08		2x10.9V	2x9V	2x278		2x8.4
T5-09		2x14.5V	2x12V	2x208		2x15
T5-10		2x18.2V	2x15V	2x167		2x23
T5-11		2x21.8V	2x18V	2x139		2x34
T5-11B		2x25.4V	2x21V	2x119		2x46
T5-12		2x29V	2x24V	2x104		2x60
T5-12B		2x32.7V	2x27V	2x93		2x75.5
