Мосты диодные

Поставляем диодные мосты фирмы SEP со склада в Москве и под заказ.

Минимальный заказ при отсутствии на складе в Москве - нормоупаковка.
При наличии на нашем складе в Москве минимальный заказ не ограничен.

При отсутствии товара на складе доставка в Москву осуществляется в еженедельном грузе от 10 дней, включая таможню.

Заказы принимаются в письменном виде по электронной почте или по телефону.
Для отправки заявки по электронной почте нажмите сюда:

код товара	Марка	V_RRM	IO@T		I_FSM	VF@IF		IR@VR		Корпус	PDF	Внешний вид	чертеж
код товара	Марка	V	A	°C	A	V	A	µA	V	Корпус	PDF	Внешний вид	чертеж

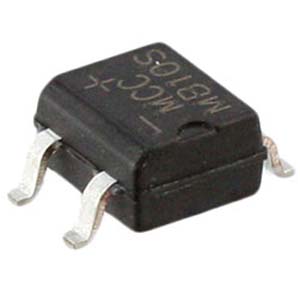

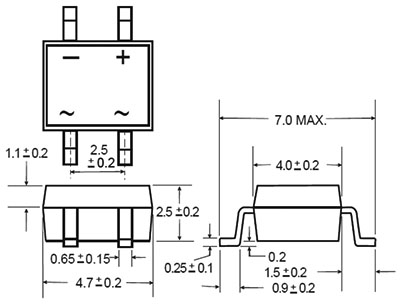

121872	B05S (MB05S)	50	0.5	40	30	1.1	0.5	10	50	MDI
17567	B1S (MB1S)	100	0.5	40	30	1.1	0.5	10	100	MDI
121873	B2S (MB2S)	200	0.5	40	30	1.1	0.5	10	200	MDI
121874	B4S (MB4S)	400	0.5	40	30	1.1	0.5	10	400	MDI
50810	B6S (MB6S)	600	0.5	40	30	1.1	0.5	10	600	MDI
56166	B8S (MB8S)	800	0.5	40	30	1.1	0.5	10	800	MDI
17568	B10S (MB10S)	1000	0.5	40	30	1.1	0.5	10	1000	MDI

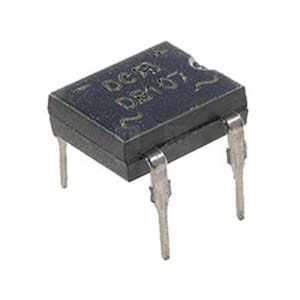

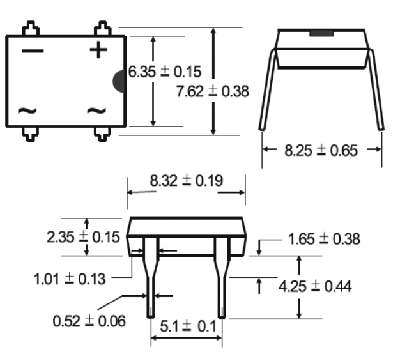

121875	DB101	50	1	40	50	1.1	1	10	50	DIP
121877	DB102	100	1	40	50	1.1	1	10	100	DIP
17839	DB103	200	1	40	50	1.1	1	10	200	DIP
17564	DB104	400	1	40	50	1.1	1	10	400	DIP
121880	DB105	600	1	40	50	1.1	1	10	600	DIP
17563	DB106	800	1	40	50	1.1	1	10	800	DIP
22204	DB107	1000	1	40	50	1.1	1	10	1000	DIP

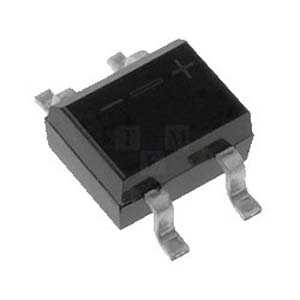

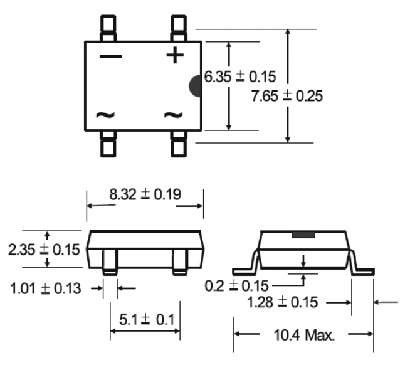

121876	DB101S	50	1	40	50	1.1	1	10	50	DIP-S
121878	DB102S	100	1	40	50	1.1	1	10	100	DIP-S
121879	DB103S	200	1	40	50	1.1	1	10	200	DIP-S
17838	DB104S	400	1	40	50	1.1	1	10	400	DIP-S
121881	DB105S	600	1	40	50	1.1	1	10	600	DIP-S
17562	DB106S	800	1	40	50	1.1	1	10	800	DIP-S
17561	DB107S	1000	1	40	50	1.1	1	10	1000	DIP-S

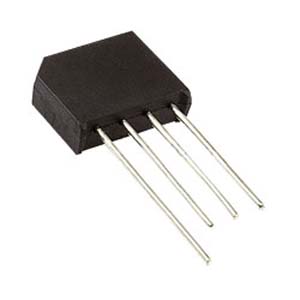

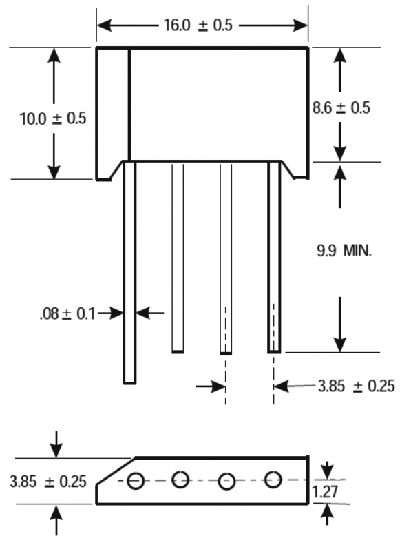

22208	RS101	50	1	50	30	1	1	10	50	RS1
122271	RS102	100	1	50	30	1	1	10	100	RS1
122272	RS103	200	1	50	30	1	1	10	200	RS1
122273	RS104	400	1	50	30	1	1	10	400	RS1
122274	RS105	600	1	50	30	1	1	10	600	RS1
122275	RS106	800	1	50	30	1	1	10	800	RS1
122276	RS107	1000	1	50	30	1	1	10	1000	RS1

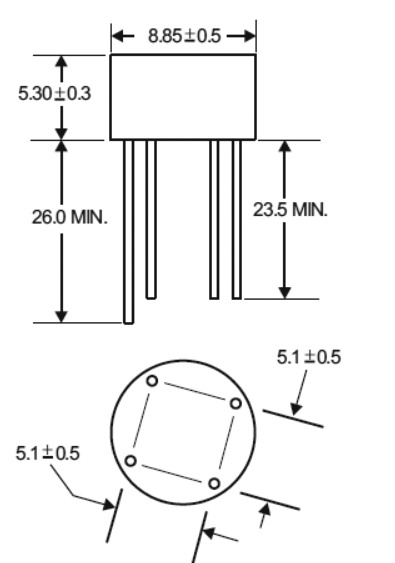

22209	W005M (RB151)	50	1.5	50	50	1.1	1.5	10	50	WOB
122313	W01M (RB152)	100	1.5	50	50	1.1	1.5	10	100	WOB
122314	W02M (RB153)	200	1.5	50	50	1.1	1.5	10	200	WOB
19490	W04M (RB154)	400	1.5	50	50	1.1	1.5	10	400	WOB
122315	W06M (RB155)	600	1.5	50	50	1.1	1.5	10	600	WOB
122316	W08M (RB156)	800	1.5	50	50	1.1	1.5	10	800	WOB
40190	W10M (RB157)	1000	1.5	50	50	1.1	1.5	10	1000	WOB

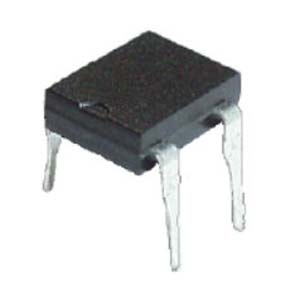

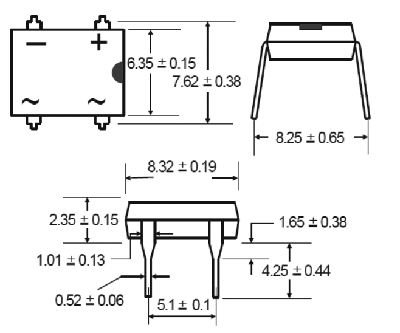

121882	DB151	50	1.5	40	50	1.1	1.5	10	50	DIP
121884	DB152	100	1.5	40	50	1.1	1.5	10	100	DIP
121886	DB153	200	1.5	40	50	1.1	1.5	10	200	DIP
121888	DB154	400	1.5	40	50	1.1	1.5	10	400	DIP
121890	DB155	600	1.5	40	50	1.1	1.5	10	600	DIP
121892	DB156	800	1.5	40	50	1.1	1.5	10	800	DIP
17560	DB157	1000	1.5	40	50	1.1	1.5	10	1000	DIP

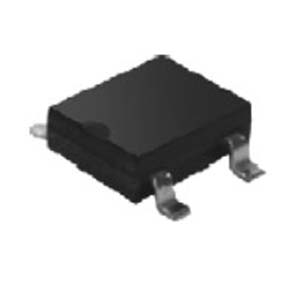

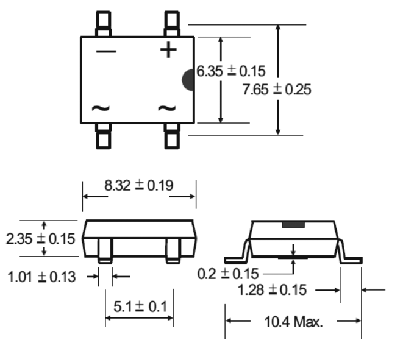

121883	DB151S	50	1.5	40	50	1.1	1.5	10	50	DIP-S
121885	DB152S	100	1.5	40	50	1.1	1.5	10	100	DIP-S
121887	DB153S	200	1.5	40	50	1.1	1.5	10	200	DIP-S
121889	DB154S	400	1.5	40	50	1.1	1.5	10	400	DIP-S
121891	DB155S	600	1.5	40	50	1.1	1.5	10	600	DIP-S
121893	DB156S	800	1.5	40	50	1.1	1.5	10	800	DIP-S
17559	DB157S	1000	1.5	40	50	1.1	1.5	10	1000	DIP-S

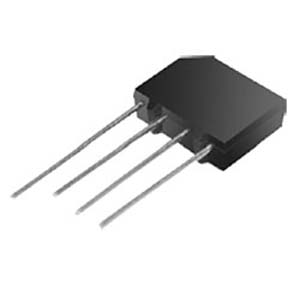

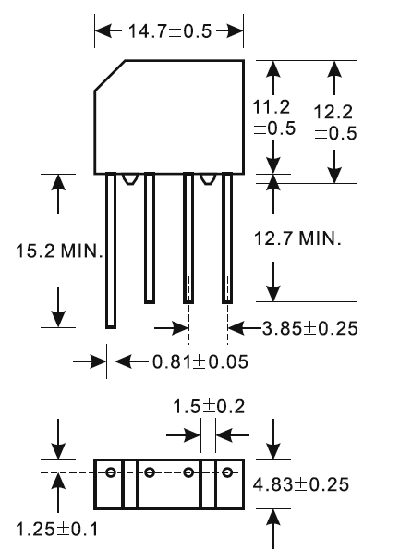

122004	KBP005	50	1.5	50	50	1.1	1.5	10	50	KBP
122005	KBP01	100	1.5	50	50	1.1	1.5	10	100	KBP
122006	KBP02	200	1.5	50	50	1.1	1.5	10	200	KBP
122007	KBP04	400	1.5	50	50	1.1	1.5	10	400	KBP
122008	KBP06	600	1.5	50	50	1.1	1.5	10	600	KBP
122009	KBP08	800	1.5	50	50	1.1	1.5	10	800	KBP
122010	KBP10	1000	1.5	50	50	1.1	1.5	10	1000	KBP

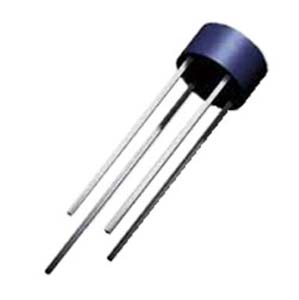

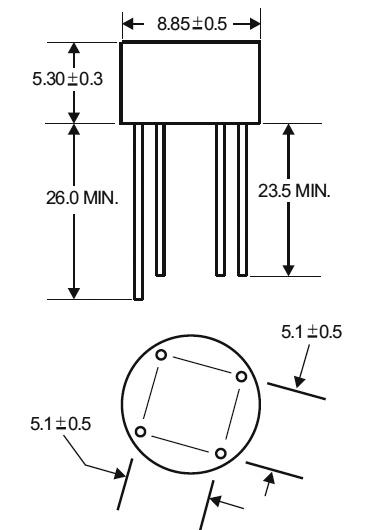

122317	2W005	50	2	25	60	1.1	2	10	50	WOB
122318	2W01	100	2	25	60	1.1	2	10	100	WOB
122319	2W02	200	2	25	60	1.1	2	10	200	WOB
122320	2W04	400	2	25	60	1.1	2	10	400	WOB
25278	2W06	600	2	25	60	1.1	2	10	600	WOB
122321	2W08	800	2	25	60	1.1	2	10	800	WOB
18011	2W10	1000	2	25	60	1.1	2	10	1000	WOB

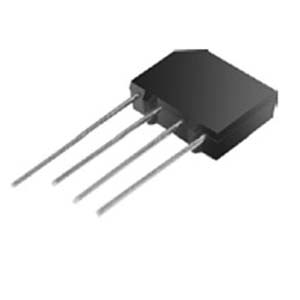

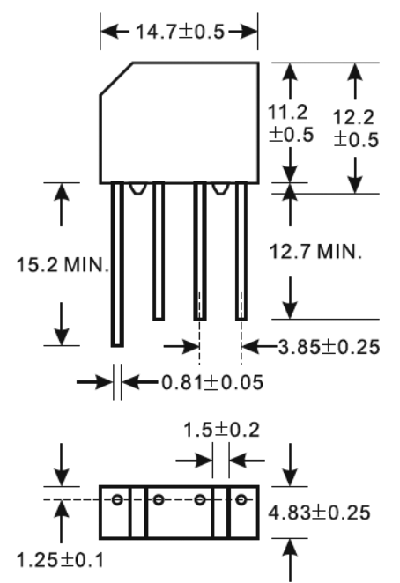

122322	2KBP005M	50	2	50	60	1.1	2	10	50	KBP
122323	2KBP01M	100	2	50	60	1.1	2	10	100	KBP
122324	2KBP02M	200	2	50	60	1.1	2	10	200	KBP
122325	2KBP04M	400	2	50	60	1.1	2	10	400	KBP
122326	2KBP06M	600	2	50	60	1.1	2	10	600	KBP
122327	2KBP08M	800	2	50	60	1.1	2	10	800	KBP
122328	2KBP10M	1000	2	50	60	1.1	2	10	1000	KBP

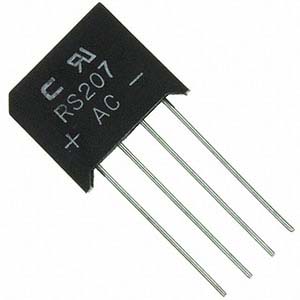

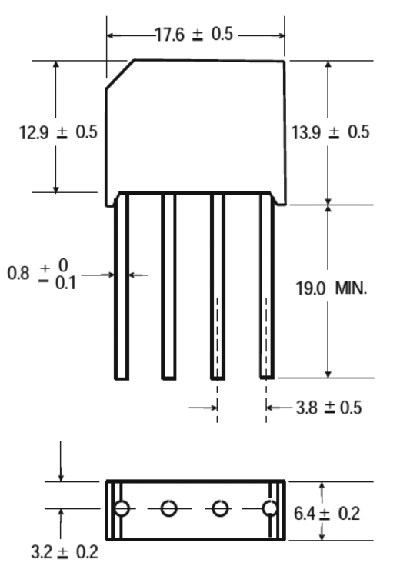

22714	RS201	50	2	50	50	1.1	2	10	50	RS2
122284	RS202	100	2	50	50	1.1	2	10	100	RS2
122285	RS203	200	2	50	50	1.1	2	10	200	RS2
122286	RS204	400	2	50	50	1.1	2	10	400	RS2
122287	RS205	600	2	50	50	1.1	2	10	600	RS2
122288	RS206	800	2	50	50	1.1	2	10	800	RS2
18392	RS207	1000	2	50	50	1.1	2	10	1000	RS2
122329	BR305	50	3	50	50	1.1	3	10	50	BR3
122330	BR31	100	3	50	50	1.1	3	10	100	BR3
122331	BR32	200	3	50	50	1.1	3	10	200	BR3
122332	BR34	400	3	50	50	1.1	3	10	400	BR3
122333	BR36	600	3	50	50	1.1	3	10	600	BR3
122334	BR38	800	3	50	50	1.1	3	10	800	BR3
122335	BR310	1000	3	50	50	1.1	3	10	1000	BR3

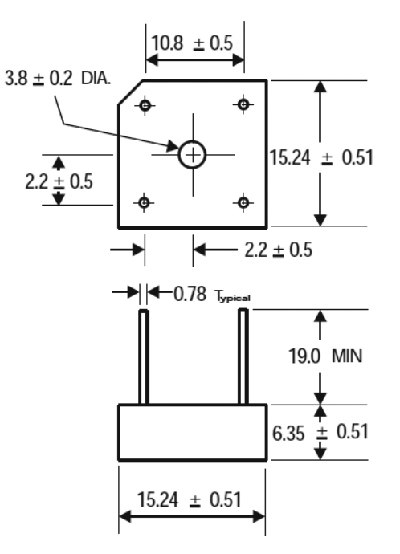

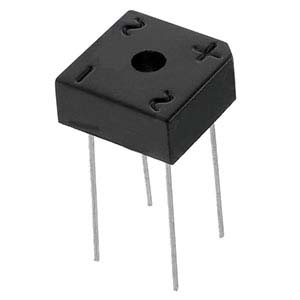

122018	KBPC1005	50	3	50	50	1.1	3	10	50	KBPC1
122023	KBPC101	100	3	50	50	1.1	3	10	100	KBPC1
122025	KBPC102	200	3	50	50	1.1	3	10	200	KBPC1
122026	KBPC104	400	3	50	50	1.1	3	10	400	KBPC1
17565	KBPC106	600	3	50	50	1.1	3	10	600	KBPC1
122027	KBPC108	800	3	50	50	1.1	3	10	800	KBPC1
122028	KBPC110	1000	3	50	50	1.1	3	10	1000	KBPC1

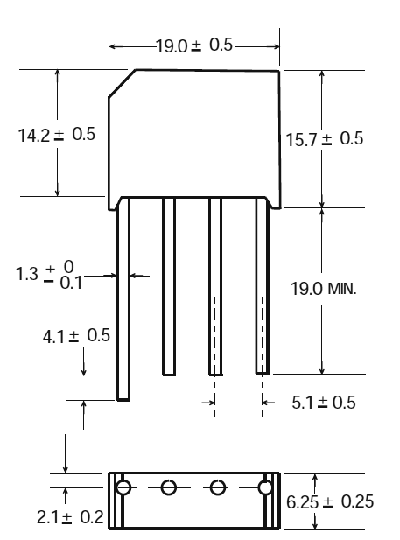

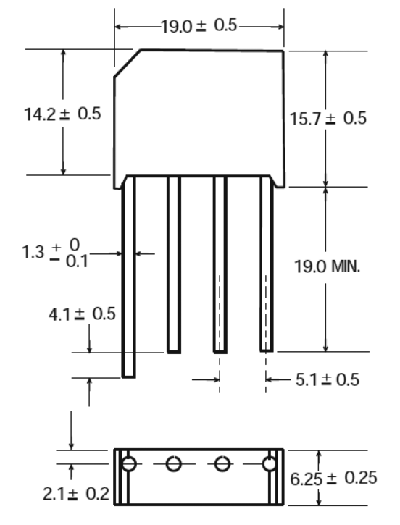

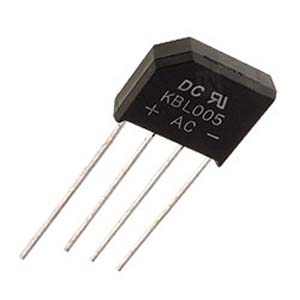

121983	KBL005	50	4	50	200	1.1	4	10	50	KBL
121984	KBL01	100	4	50	200	1.1	4	10	100	KBL
121985	KBL02	200	4	50	200	1.1	4	10	200	KBL
121986	KBL04	400	4	50	200	1.1	4	10	400	KBL
121987	KBL06	600	4	50	200	1.1	4	10	600	KBL
121988	KBL08	800	4	50	200	1.1	4	10	800	KBL
121989	KBL10	1000	4	50	200	1.1	4	10	1000	KBL

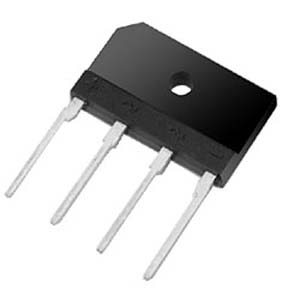

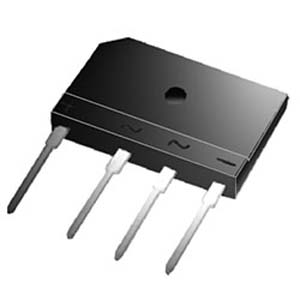

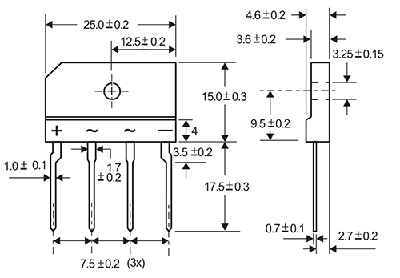

121962	KBJ4005	50	4	100	120	1.1	4	10	50	KBJ
121963	KBJ401	100	4	100	120	1.1	4	10	100	KBJ
121964	KBJ402	200	4	100	120	1.1	4	10	200	KBJ
121965	KBJ404	400	4	100	120	1.1	4	10	400	KBJ
121966	KBJ406	600	4	100	120	1.1	4	10	600	KBJ
121967	KBJ408	800	4	100	120	1.1	4	10	800	KBJ
121968	KBJ410	1000	4	100	120	1.1	4	10	800	KBJ
122123	KBU4A	50	4	100	200	1.1	4	10	50	KBU
40163	KBU4B	100	4	100	200	1.1	4	10	100	KBU
122124	KBU4D	200	4	100	200	1.1	4	10	200	KBU
122125	KBU4G	400	4	100	200	1.1	4	10	400	KBU
122126	KBU4J	600	4	100	200	1.1	4	10	600	KBU
122127	KBU4K	800	4	100	200	1.1	4	10	800	KBU
122128	KBU4M	1000	4	100	200	1.1	4	10	800	KBU
121920	GBU4005	50	4	100	150	1.1	4	5	50	GBU
121921	GBU401	100	4	100	150	1.1	4	5	100	GBU
121922	GBU402	200	4	100	150	1.1	4	5	200	GBU
121923	GBU404	400	4	100	150	1.1	4	5	400	GBU
121924	GBU406	600	4	100	150	1.1	4	5	600	GBU
121925	GBU408	800	4	100	150	1.1	4	5	800	GBU
121926	GBU410	1000	4	100	150	1.1	4	5	800	GBU

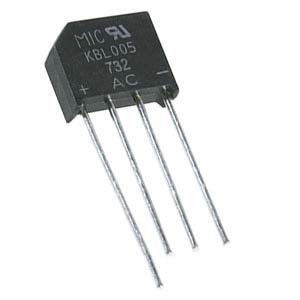

121990	KBL4005	50	4	50	200	1.1	4	10	50	KBL
121991	KBL401	100	4	50	200	1.1	4	10	100	KBL
121992	KBL402	200	4	50	200	1.1	4	10	200	KBL
121993	KBL404	400	4	50	200	1.1	4	10	400	KBL
121994	KBL406	600	4	50	200	1.1	4	10	600	KBL
121995	KBL408	800	4	50	200	1.1	4	10	800	KBL
121996	KBL410	1000	4	50	200	1.1	4	10	1000	KBL

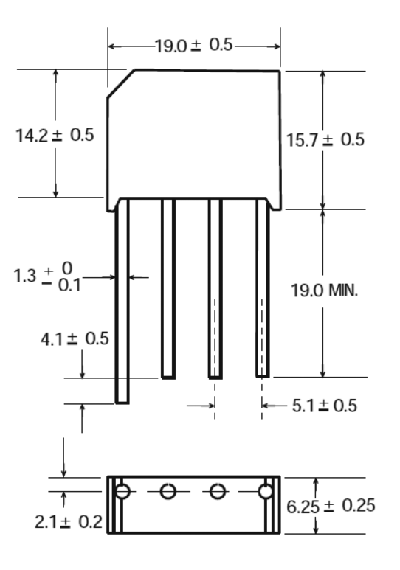

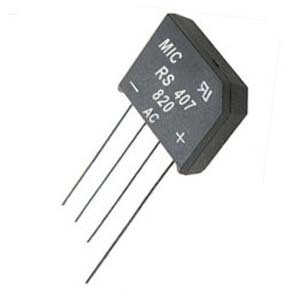

122289	RS401L	50	4	50	200	1.1	4	10	50	KBL
122290	RS402L	100	4	50	200	1.1	4	10	100	KBL
122291	RS403L	200	4	50	200	1.1	4	10	200	KBL
122292	RS404L	400	4	50	200	1.1	4	10	400	KBL
122293	RS405L	600	4	50	200	1.1	4	10	600	KBL
56162	RS406L	800	4	50	200	1.1	4	10	800	KBL
23274	RS407L	1000	4	50	200	1.1	4	10	1000	KBL

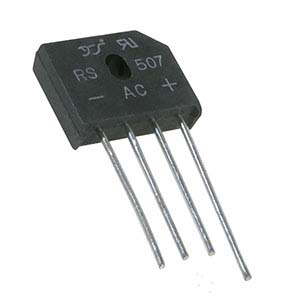

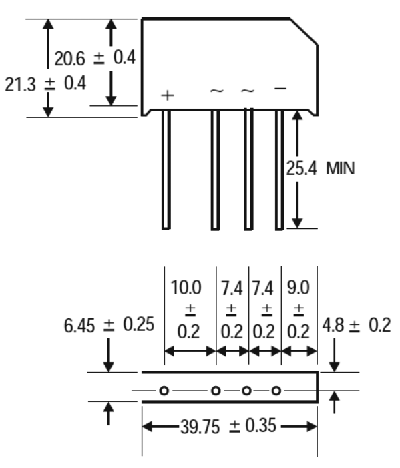

122294	RS501	50	5	50	200	1.1	5	10	50	RS5
122295	RS502	100	5	50	200	1.1	5	10	100	RS5
122296	RS503	200	5	50	200	1.1	5	10	200	RS5
122297	RS504	400	5	50	200	1.1	5	10	400	RS5
122298	RS505	600	5	50	200	1.1	5	10	600	RS5
122299	RS506	800	5	50	200	1.1	5	10	800	RS5
21159	RS507	1000	5	50	200	1.1	5	10	1000	RS5
121997	KBL6005	50	6	50	200	1.1	6	10	50	KBL
121998	KBL601	100	6	50	200	1.1	6	10	100	KBL
121999	KBL602	200	6	50	200	1.1	6	10	200	KBL
122000	KBL604	400	6	50	200	1.1	6	10	400	KBL
122001	KBL606	600	6	50	200	1.1	6	10	600	KBL
122002	KBL608	800	6	50	200	1.1	6	10	800	KBL
122135	KBU6A	50	6	100	250	1.1	6	10	50	KBU
122136	KBU6B	100	6	100	250	1.1	6	10	100	KBU
122137	KBU6D	200	6	100	250	1.1	6	10	200	KBU
122138	KBU6G	400	6	100	250	1.1	6	10	400	KBU
122139	KBU6J	600	6	100	250	1.1	6	10	600	KBU
122140	KBU6K	800	6	100	250	1.1	6	10	800	KBU
22207	KBU6M	1000	6	100	250	1.1	6	10	1000	KBU
122129	KBU6005	50	6	100	250	1.1	6	10	50	KBU
122130	KBU601	100	6	100	250	1.1	6	10	100	KBU
122131	KBU602	200	6	100	250	1.1	6	10	200	KBU
122132	KBU604	400	6	100	250	1.1	6	10	400	KBU
122133	KBU606	600	6	100	250	1.1	6	10	600	KBU
122134	KBU608	800	6	100	250	1.1	6	10	800	KBU
17703	KBU610	1000	6	100	250	1.1	6	10	1000	KBU
122300	RS601	50	6	100	250	1.1	6	10	50	KBU
17655	RS602	100	6	100	250	1.1	6	10	100	KBU
122301	RS603	200	6	100	250	1.1	6	10	200	KBU
122302	RS604	400	6	100	250	1.1	6	10	400	KBU
122303	RS605	600	6	100	250	1.1	6	10	600	KBU
122304	RS606	800	6	100	250	1.1	6	10	800	KBU
122305	RS607	1000	6	100	250	1.1	6	10	1000	KBU

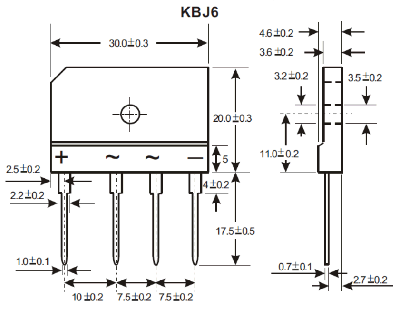

121969	KBJ6005	50	6	170	170	1.1	6	10	50	KBJ
121970	KBJ601	100	6	170	170	1.1	6	10	100	KBJ
121971	KBJ602	200	6	170	170	1.1	6	10	200	KBJ
121972	KBJ604	400	6	170	170	1.1	6	10	400	KBJ
121973	KBJ606	600	6	170	170	1.1	6	10	600	KBJ
121974	KBJ608	800	6	170	170	1.1	6	10	800	KBJ
121975	KBJ610	1000	6	170	170	1.1	6	10	1000	KBJ

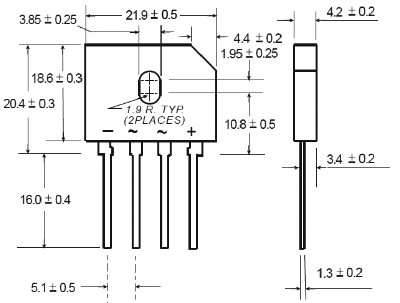

121927	GBU6005	50	6	175	150	1.1	6	5	50	GBU
121928	GBU601	100	6	175	150	1.1	6	5	100	GBU
121929	GBU602	200	6	175	150	1.1	6	5	200	GBU
121930	GBU604	400	6	175	150	1.1	6	5	400	GBU
121931	GBU606	600	6	175	150	1.1	6	5	600	GBU
121932	GBU608	800	6	175	150	1.1	6	5	800	GBU
121933	GBU610	1000	6	175	150	1.1	6	5	800	GBU
122083	KBPC6005	50	6	125	125	1.1	6	10	50	KBPC6
122084	KBPC601	100	6	125	125	1.1	6	10	100	KBPC6
122085	KBPC602	200	6	125	125	1.1	6	10	200	KBPC6
122086	KBPC604	400	6	125	125	1.1	6	10	400	KBPC6
50996	KBPC606	600	6	125	125	1.1	6	10	600	KBPC6
122087	KBPC608	800	6	125	125	1.1	6	10	800	KBPC6
122088	KBPC610	1000	6	125	125	1.1	6	10	1000	KBPC6
122336	BR605	50	6	125	125	1.1	6	10	50	BR6
122337	BR61	100	6	125	125	1.1	6	10	100	BR6
121895	BR62	200	6	125	125	1.1	6	10	200	BR6
121896	BR64	400	6	125	125	1.1	6	10	400	BR6
121897	BR66	600	6	125	125	1.1	6	10	600	BR6
121898	BR68	800	6	125	125	1.1	6	10	800	BR6
121894	BR610	1000	6	125	125	1.1	6	10	1000	BR6
122147	KBU8A	50	8	100	300	1.1	8	10	50	KBU
122148	KBU8B	100	8	100	300	1.1	8	10	100	KBU
122149	KBU8D	200	8	100	300	1.1	8	10	200	KBU
122150	KBU8G	400	8	100	300	1.1	8	10	400	KBU
122151	KBU8J	600	8	100	300	1.1	8	10	600	KBU
122152	KBU8K	800	8	100	300	1.1	8	10	800	KBU
122153	KBU8M	1000	8	100	300	1.1	8	10	1000	KBU

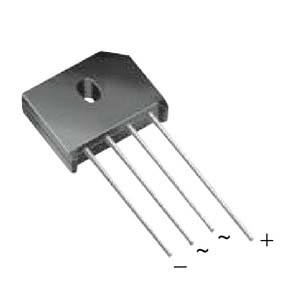

122141	KBU8005	50	8	100	300	1.1	8	10	50	KBU
122142	KBU801	100	8	100	300	1.1	8	10	100	KBU
122143	KBU802	200	8	100	300	1.1	8	10	200	KBU
122144	KBU804	400	8	100	300	1.1	8	10	400	KBU
122145	KBU806	600	8	100	300	1.1	8	10	600	KBU
122146	KBU808	800	8	100	300	1.1	8	10	800	KBU
24640	KBU810	1000	8	100	300	1.1	8	10	1000	KBU

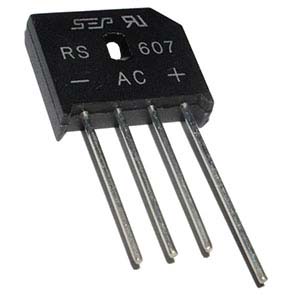

122306	RS801	50	8	100	300	1.1	8	10	50	KBU
122307	RS802	100	8	100	300	1.1	8	10	100	KBU
122308	RS803	200	8	100	300	1.1	8	10	200	KBU
122309	RS804	400	8	100	300	1.1	8	10	400	KBU
122310	RS805	600	8	100	300	1.1	8	10	600	KBU
122311	RS806	800	8	100	300	1.1	8	10	800	KBU
122312	RS807	1000	8	100	300	1.1	8	10	1000	KBU
121976	KBJ8005	50	8	100	170	1.1	8	10	50	KBJ
121977	KBJ801	100	8	100	170	1.1	8	10	100	KBJ
121978	KBJ802	200	8	100	170	1.1	8	10	200	KBJ
121979	KBJ804	400	8	100	170	1.1	8	10	400	KBJ
121980	KBJ806	600	8	100	170	1.1	8	10	600	KBJ
121981	KBJ808	800	8	100	170	1.1	8	10	800	KBJ
121982	KBJ810	1000	8	100	170	1.1	8	10	1000	KBJ

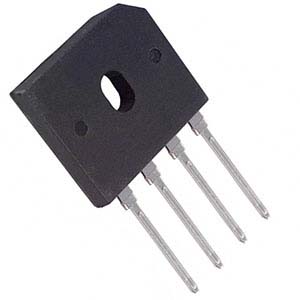

121934	GBU8005	50	8	100	200	1.1	8	5	50	GBU
121935	GBU801	100	8	100	200	1.1	8	5	100	GBU
121936	GBU802	200	8	100	200	1.1	8	5	200	GBU
121937	GBU804	400	8	100	200	1.1	8	5	400	GBU
121938	GBU806	600	8	100	200	1.1	8	5	600	GBU
121939	GBU808	800	8	100	200	1.1	8	5	800	GBU
121940	GBU810	1000	8	100	200	1.1	8	5	1000	GBU
122089	KBPC8005	50	8	50	125	1.1	8	10	50	KBPC8
122090	KBPC801	100	8	50	125	1.1	8	10	100	KBPC8
122091	KBPC802	200	8	50	125	1.1	8	10	200	KBPC8
122092	KBPC804	400	8	50	125	1.1	8	10	400	KBPC8
122093	KBPC806	600	8	50	125	1.1	8	10	600	KBPC8
122094	KBPC808	800	8	50	125	1.1	8	10	800	KBPC8
122095	KBPC810	1000	8	50	125	1.1	8	10	1000	KBPC8

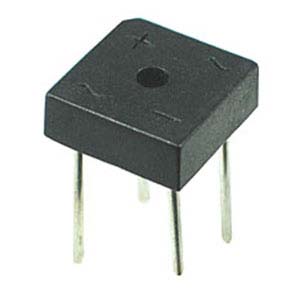

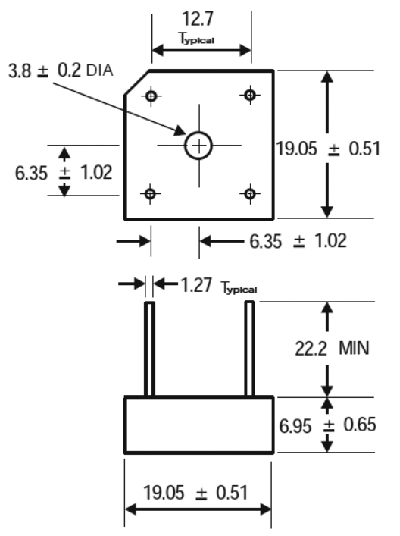

121899	BR805	50	8	50	125	1.1	8	10	50	BR8
121900	BR81	100	8	50	125	1.1	8	10	100	BR8
121902	BR82	200	8	50	125	1.1	8	10	200	BR8
121903	BR84	400	8	50	125	1.1	8	10	400	BR8
121904	BR86	600	8	50	125	1.1	8	10	600	BR8
121905	BR88	800	8	50	125	1.1	8	10	800	BR8
121901	BR810	1000	8	50	125	1.1	8	10	1000	BR8
122096	KBU10005	50	10	100	300	1.05	10	10	50	KBU
122097	KBU1001	100	10	100	300	1.05	10	10	100	KBU
122098	KBU1002	200	10	100	300	1.05	10	10	200	KBU
122099	KBU1004	400	10	100	300	1.05	10	10	400	KBU
122100	KBU1006	600	10	100	300	1.05	10	10	600	KBU
25290	KBU1008	800	10	100	300	1.05	10	10	800	KBU
122101	KBU1010	1000	10	100	300	1.05	10	10	1000	KBU

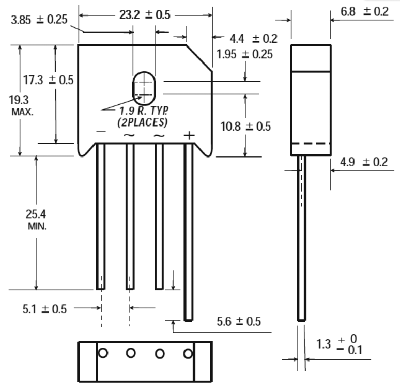

122264	RS10005	50	10	100	300	1.1	10	10	50	KBU
122265	RS1001	100	10	100	300	1.1	10	10	100	KBU
122266	RS1002	200	10	100	300	1.1	10	10	200	KBU
122267	RS1004	400	10	100	300	1.1	10	10	400	KBU
122268	RS1006	600	10	100	300	1.1	10	10	600	KBU
122269	RS1008	800	10	100	300	1.1	10	10	800	KBU
122270	RS1010	1000	10	100	300	1.1	10	10	1000	KBU
121941	KBJ10005	50	10	100	170	1.05	10	10	50	KBJ
121942	KBJ1001	100	10	100	170	1.05	10	10	100	KBJ
121943	KBJ1002	200	10	100	170	1.05	10	10	200	KBJ
121944	KBJ1004	400	10	100	170	1.05	10	10	400	KBJ
121945	KBJ1006	600	10	100	170	1.05	10	10	600	KBJ
121946	KBJ1008	800	10	100	170	1.05	10	10	800	KBJ
121947	KBJ1010	1000	10	100	170	1.05	10	10	1000	KBJ
121906	GBU10005	50	10	100	220	1.05	10	5	50	GBU
121907	GBU1001	100	10	100	220	1.05	10	5	100	GBU
121908	GBU1002	200	10	100	220	1.05	10	5	200	GBU
121909	GBU1004	400	10	100	220	1.05	10	5	400	GBU
121910	GBU1006	600	10	100	220	1.05	10	5	600	GBU
121911	GBU1008	800	10	100	220	1.05	10	5	800	GBU
121912	GBU1010	1000	10	100	220	1.05	10	5	1000	GBU
122155	MP10005S	50	10	55	300	1.05	5	10	50	MP-S
122158	MP1001S	100	10	55	300	1.05	5	10	100	MP-S
122161	MP1002S	200	10	55	300	1.05	5	10	200	MP-S
122164	MP1004S	400	10	55	300	1.05	5	10	400	MP-S
122167	MP1006S	600	10	55	300	1.05	5	10	600	MP-S
122170	MP1008S	800	10	55	300	1.05	5	10	800	MP-S
122173	MP1010S	1000	10	55	300	1.05	5	10	1000	MP-S
122338	BR1005	50	10	50	150	1.1	5	10	50	BR10
17566	BR101	100	10	50	150	1.1	5	10	100	BR10
122339	BR102	200	10	50	150	1.1	5	10	200	BR10
122340	BR104	400	10	50	150	1.1	5	10	400	BR10
122341	BR106	600	10	50	150	1.1	5	10	600	BR10
122342	BR108	800	10	50	150	1.1	5	10	800	BR10
122343	BR1010	1000	10	50	150	1.1	5	10	1000	BR10
122011	KBPC10005	50	10	55	300	1.05	5	10	50	KBPC
17557	KBPC1001	100	10	55	300	1.05	5	10	100	KBPC
122014	KBPC1002	200	10	55	300	1.05	5	10	200	KBPC
122016	KBPC1004	400	10	55	300	1.05	5	10	400	KBPC
122019	KBPC1006	600	10	55	300	1.05	5	10	600	KBPC
122021	KBPC1008	800	10	55	300	1.05	5	10	800	KBPC
22205	KBPC1010	1000	10	55	300	1.05	5	10	1000	KBPC
122012	KBPC10005W	50	10	55	300	1.05	5	10	50	KBPC-W
122013	KBPC1001W	100	10	55	300	1.05	5	10	100	KBPC-W
122015	KBPC1002W	200	10	55	300	1.05	5	10	200	KBPC-W
122017	KBPC1004W	400	10	55	300	1.05	5	10	400	KBPC-W
122020	KBPC1006W	600	10	55	300	1.05	5	10	600	KBPC-W
122022	KBPC1008W	800	10	55	300	1.05	5	10	800	KBPC-W
122024	KBPC1010W	1000	10	55	300	1.05	5	10	1000	KBPC-W
122154	MP10005	50	10	55	300	1.05	5	10	50	MP
122157	MP1001	100	10	55	300	1.05	5	10	100	MP
122160	MP1002	200	10	55	300	1.05	5	10	200	MP
122163	MP1004	400	10	55	300	1.05	5	10	400	MP
122166	MP1006	600	10	55	300	1.05	5	10	600	MP
122169	MP1008	800	10	55	300	1.05	5	10	800	MP
122172	MP1010	1000	10	55	300	1.05	5	10	1000	MP
122156	MP10005W	50	10	55	300	1	5	10	50	MP-W
122159	MP1001W	100	10	55	300	1	5	10	100	MP-W
122162	MP1002W	200	10	55	300	1	5	10	200	MP-W
122165	MP1004W	400	10	55	300	1	5	10	400	MP-W
122168	MP1006W	600	10	55	300	1	5	10	600	MP-W
122171	MP1008W	800	10	55	300	1	5	10	800	MP-W
122174	MP1010W	1000	10	55	300	1	5	10	1000	MP-W

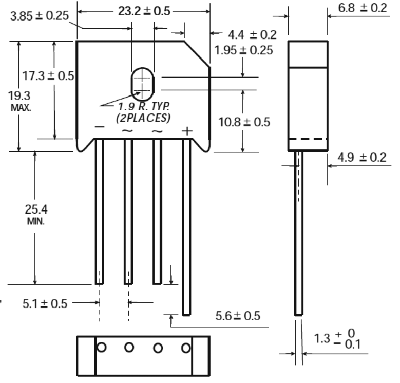

122102	KBU15005	50	15	100	300	1	7.5	10	50	KBU
122103	KBU1501	100	15	100	300	1	7.5	10	100	KBU
122104	KBU1502	200	15	100	300	1	7.5	10	200	KBU
122105	KBU1504	400	15	100	300	1	7.5	10	400	KBU
122106	KBU1506	600	15	100	300	1	7.5	10	600	KBU
122107	KBU1508	800	15	100	300	1	7.5	10	800	KBU
122108	KBU1510	1000	15	100	300	1	7.5	10	1000	KBU
121948	KBJ15005	50	15	100	240	1	7.5	10	50	KBJ
121949	KBJ1501	100	15	100	240	1	7.5	10	100	KBJ
121950	KBJ1502	200	15	100	240	1	7.5	10	200	KBJ
121951	KBJ1504	400	15	100	240	1	7.5	10	400	KBJ
121952	KBJ1506	600	15	100	240	1	7.5	10	600	KBJ
121953	KBJ1508	800	15	100	240	1	7.5	10	800	KBJ
121954	KBJ1510	1000	15	100	240	1	7.5	10	1000	KBJ
121913	GBU15005	50	15	100	240	1	7.5	5	50	GBU
121914	GBU1501	100	15	100	240	1	7.5	5	100	GBU
121915	GBU1502	200	15	100	240	1	7.5	5	200	GBU
121916	GBU1504	400	15	100	240	1	7.5	5	400	GBU
121917	GBU1506	600	15	100	240	1	7.5	5	600	GBU
121918	GBU1508	800	15	100	240	1	7.5	5	800	GBU
121919	GBU1510	1000	15	100	240	1	7.5	5	1000	GBU

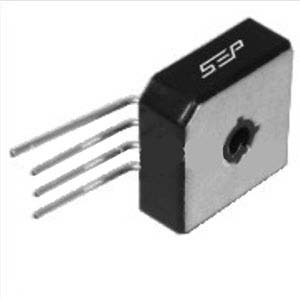

122176	MP15005S	50	15	55	300	1	7.5	10	50	MP-S
122179	MP1501S	100	15	55	300	1	7.5	10	100	MP-S
122182	MP1502S	200	15	55	300	1	7.5	10	200	MP-S
122185	MP1504S	400	15	55	300	1	7.5	10	400	MP-S
122188	MP1506S	600	15	55	300	1	7.5	10	600	MP-S
122191	MP1508S	800	15	55	300	1	7.5	10	800	MP-S
122194	MP1510S	1000	15	55	300	1	7.5	10	1000	MP-S
122029	KBPC15005	50	15	55	300	1	7.5	10	50	KBPC
122031	KBPC1501	100	15	55	300	1	7.5	10	100	KBPC
122033	KBPC1502	200	15	55	300	1	7.5	10	200	KBPC
122035	KBPC1504	400	15	55	300	1	7.5	10	400	KBPC
122037	KBPC1506	600	15	55	300	1	7.5	10	600	KBPC
122039	KBPC1508	800	15	55	300	1	7.5	10	800	KBPC

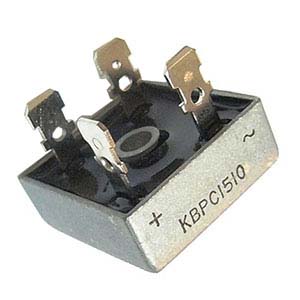

122041	KBPC1510	1000	15	55	300	1	7.5	10	1000	KBPC
122030	KBPC15005W	50	15	55	300	1	7.5	10	50	KBPC-W
122032	KBPC1501W	100	15	55	300	1	7.5	10	100	KBPC-W
122034	KBPC1502W	200	15	55	300	1	7.5	10	200	KBPC-W
122036	KBPC1504W	400	15	55	300	1	7.5	10	400	KBPC-W
122038	KBPC1506W	600	15	55	300	1	7.5	10	600	KBPC-W
122040	KBPC1508W	800	15	55	300	1	7.5	10	800	KBPC-W

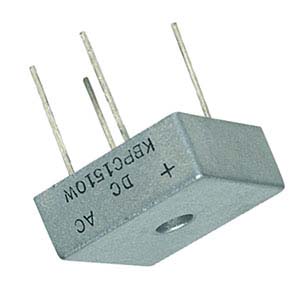

122042	KBPC1510W	1000	15	55	300	1	7.5	10	1000	KBPC-W
122175	MP15005	50	15	55	300	1	7.5	10	50	MP
122178	MP1501	100	15	55	300	1	7.5	10	100	MP
122181	MP1502	200	15	55	300	1	7.5	10	200	MP
122184	MP1504	400	15	55	300	1	7.5	10	400	MP
122187	MP1506	600	15	55	300	1	7.5	10	600	MP
122190	MP1508	800	15	55	300	1	7.5	10	800	MP
122193	MP1510	1000	15	55	300	1	7.5	10	1000	MP
122177	MP15005W	50	15	55	300	1	7.5	10	50	MP-W
122180	MP1501W	100	15	55	300	1	7.5	10	100	MP-W
122183	MP1502W	200	15	55	300	1	7.5	10	200	MP-W
122186	MP1504W	400	15	55	300	1	7.5	10	400	MP-W
122189	MP1506W	600	15	55	300	1	7.5	10	600	MP-W
122192	MP1508W	800	15	55	300	1	7.5	10	800	MP-W
122195	MP1510W	1000	15	55	300	1	7.5	10	1000	MP-W
122109	KBU25005	50	25	100	350	1	12.5	10	50	KBU
122110	KBU2501	100	25	100	350	1	12.5	10	100	KBU
122111	KBU2502	200	25	100	350	1	12.5	10	200	KBU
122112	KBU2504	400	25	100	350	1	12.5	10	400	KBU
122113	KBU2506	600	25	100	350	1	12.5	10	600	KBU
122114	KBU2508	800	25	100	350	1	12.5	10	800	KBU
122115	KBU2510	1000	25	100	350	1	12.5	10	1000	KBU
121955	KBJ25005	50	25	100	350	1	12.5	10	50	KBJ
121956	KBJ2501	100	25	100	350	1	12.5	10	100	KBJ
121957	KBJ2502	200	25	100	350	1	12.5	10	200	KBJ
121958	KBJ2504	400	25	100	350	1	12.5	10	400	KBJ
121959	KBJ2506	600	25	100	350	1	12.5	10	600	KBJ
121960	KBJ2508	800	25	100	350	1	12.5	10	800	KBJ
121961	KBJ2510	1000	25	100	350	1	12.5	10	1000	KBJ
122197	MP25005S	50	25	55	300	1	12.5	10	50	MP-S
122200	MP2501S	100	25	55	300	1	12.5	10	100	MP-S
122203	MP2502S	200	25	55	300	1	12.5	10	200	MP-S
122206	MP2504S	400	25	55	300	1	12.5	10	400	MP-S
122209	MP2506S	600	25	55	300	1	12.5	10	600	MP-S
122212	MP2508S	800	25	55	300	1	12.5	10	800	MP-S
122215	MP2510S	1000	25	55	300	1	12.5	10	1000	MP-S
122043	KBPC25005	50	25	55	300	1	12.5	10	50	KBPC
122045	KBPC2501	100	25	55	300	1	12.5	10	100	KBPC
122047	KBPC2502	200	25	55	300	1	12.5	10	200	KBPC
122049	KBPC2504	400	25	55	300	1	12.5	10	400	KBPC
122051	KBPC2506	600	25	55	300	1	12.5	10	600	KBPC
122053	KBPC2508	800	25	55	300	1	12.5	10	800	KBPC
17556	KBPC2510	1000	25	55	300	1	12.5	10	1000	KBPC
122044	KBPC25005W	50	25	55	300	1	12.5	10	50	KBPC-W
122046	KBPC2501W	100	25	55	300	1	12.5	10	100	KBPC-W
122048	KBPC2502W	200	25	55	300	1	12.5	10	200	KBPC-W
122050	KBPC2504W	400	25	55	300	1	12.5	10	400	KBPC-W
122052	KBPC2506W	600	25	55	300	1	12.5	10	600	KBPC-W
122054	KBPC2508W	800	25	55	300	1	12.5	10	800	KBPC-W
122055	KBPC2510W	1000	25	55	300	1	12.5	10	1000	KBPC-W

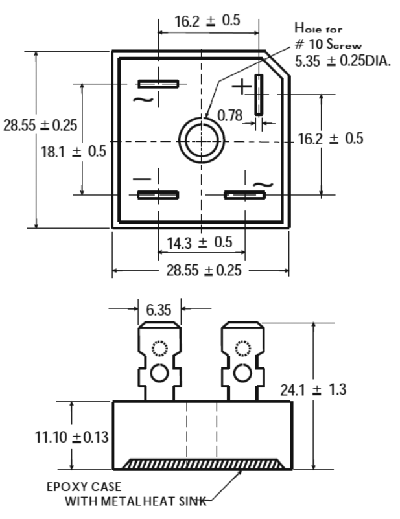

122196	MP25005	50	25	55	300	1	12.5	10	50	MP
122199	MP2501	100	25	55	300	1	12.5	10	100	MP
122202	MP2502	200	25	55	300	1	12.5	10	200	MP
122205	MP2504	400	25	55	300	1	12.5	10	400	MP
122208	MP2506	600	25	55	300	1	12.5	10	600	MP
122211	MP2508	800	25	55	300	1	12.5	10	800	MP
122214	MP2510	1000	25	55	300	1	12.5	10	1000	MP

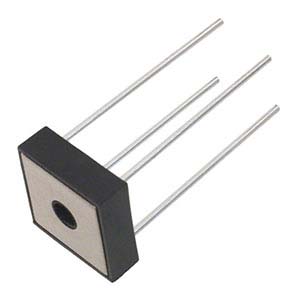

122198	MP25005W	50	25	55	300	1	12.5	10	50	MP-W
122201	MP2501W	100	25	55	300	1	12.5	10	100	MP-W
122204	MP2502W	200	25	55	300	1	12.5	10	200	MP-W
122207	MP2504W	400	25	55	300	1	12.5	10	400	MP-W
122210	MP2506W	600	25	55	300	1	12.5	10	600	MP-W
122213	MP2508W	800	25	55	300	1	12.5	10	800	MP-W
122216	MP2510W	1000	25	55	300	1	12.5	10	1000	MP-W
122116	KBU35005	50	35	100	400	1	17.5	10	50	KBU
122117	KBU3501	100	35	100	400	1	17.5	10	100	KBU
122118	KBU3502	200	35	100	400	1	17.5	10	200	KBU
122119	KBU3504	400	35	100	400	1	17.5	10	400	KBU
122120	KBU3506	600	35	100	400	1	17.5	10	600	KBU
122121	KBU3508	800	35	100	400	1	17.5	10	800	KBU
122122	KBU3510	1000	35	100	400	1	17.5	10	1000	KBU
122218	MP35005S	50	35	55	400	1	17.5	10	50	MP-S
122221	MP3501S	100	35	55	400	1	17.5	10	100	MP-S
122224	MP3502S	200	35	55	400	1	17.5	10	200	MP-S
122227	MP3504S	400	35	55	400	1	17.5	10	400	MP-S
122230	MP3506S	600	35	55	400	1	17.5	10	600	MP-S
122344	MP3508S	800	35	55	400	1	17.5	10	800	MP-S
122345	MP3510S	1000	35	55	400	1	17.5	10	1000	MP-S
122056	KBPC35005	50	35	55	400	1	17.5	10	50	KBPC
122058	KBPC3501	100	35	55	400	1	17.5	10	100	KBPC
122060	KBPC3502	200	35	55	400	1	17.5	10	200	KBPC
122062	KBPC3504	400	35	55	400	1	17.5	10	400	KBPC
122064	KBPC3506	600	35	55	400	1	17.5	10	600	KBPC
122066	KBPC3508	800	35	55	400	1	17.5	10	800	KBPC
35414	KBPC3510	1000	35	55	400	1	17.5	10	1000	KBPC
122057	KBPC35005W	50	35	55	400	1	17.5	10	50	KBPC-W
122059	KBPC3501W	100	35	55	400	1	17.5	10	100	KBPC-W
122061	KBPC3502W	200	35	55	400	1	17.5	10	200	KBPC-W
122063	KBPC3504W	400	35	55	400	1	17.5	10	400	KBPC-W
122065	KBPC3506W	600	35	55	400	1	17.5	10	600	KBPC-W
122067	KBPC3508W	800	35	55	400	1	17.5	10	800	KBPC-W
122068	KBPC3510W	1000	35	55	400	1	17.5	10	1000	KBPC-W
122217	MP35005	50	35	55	400	1	17.5	10	50	MP
122220	MP3501	100	35	55	400	1	17.5	10	100	MP
122223	MP3502	200	35	55	400	1	17.5	10	200	MP
122226	MP3504	400	35	55	400	1	17.5	10	400	MP
122229	MP3506	600	35	55	400	1	17.5	10	600	MP
122232	MP3508	800	35	55	400	1	17.5	10	800	MP
122234	MP3510	1000	35	55	400	1	17.5	10	1000	MP
122219	MP35005W	50	35	55	400	1	17.5	10	50	MP-W
122222	MP3501W	100	35	55	400	1	17.5	10	100	MP-W
122225	MP3502W	200	35	55	400	1	17.5	10	200	MP-W
122228	MP3504W	400	35	55	400	1	17.5	10	400	MP-W
122231	MP3506W	600	35	55	400	1	17.5	10	600	MP-W
122233	MP3508W	800	35	55	400	1	17.5	10	800	MP-W
122235	MP3510W	1000	35	55	400	1	17.5	10	1000	MP-W
122236	MP40005S	50	40	55	400	1	20	10	50	MP-S
122237	MP4001S	100	40	55	400	1	20	10	100	MP-S
122238	MP4002S	200	40	55	400	1	20	10	200	MP-S
122239	MP4004S	400	40	55	400	1	20	10	400	MP-S
122240	MP4006S	600	40	55	400	1	20	10	600	MP-S
122241	MP4008S	800	40	55	400	1	20	10	800	MP-S
122242	MP4010S	1000	40	55	400	1	20	10	1000	MP-S
122069	KBPC50005	50	50	40	400	1.05	25	10	50	KBPC

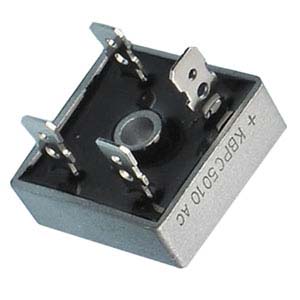

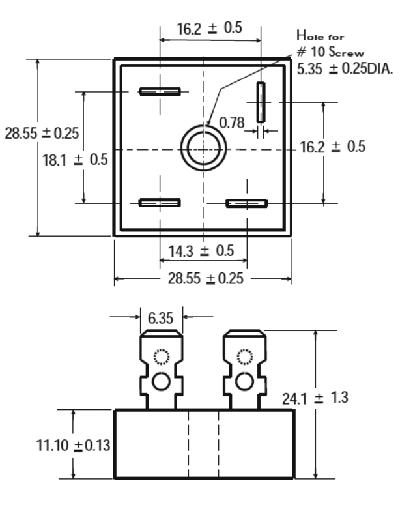

122071	KBPC5001	100	50	40	400	1.05	25	10	100	KBPC
122073	KBPC5002	200	50	40	400	1.05	25	10	200	KBPC
122075	KBPC5004	400	50	40	400	1.05	25	10	400	KBPC
122077	KBPC5006	600	50	40	400	1.05	25	10	600	KBPC
122079	KBPC5008	800	50	40	400	1.05	25	10	800	KBPC
122081	KBPC5010	1000	50	40	400	1.05	25	10	1000	KBPC

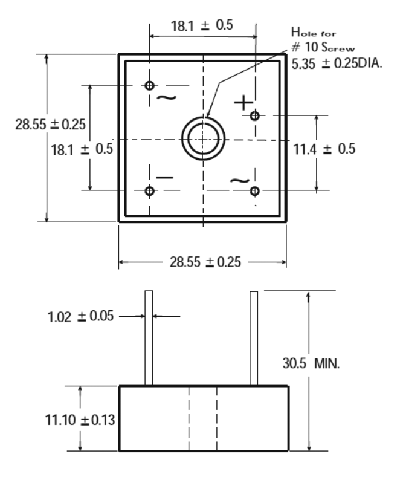

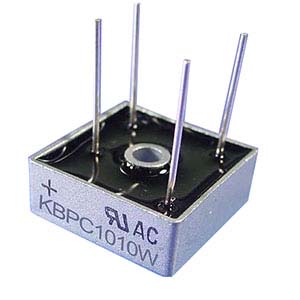

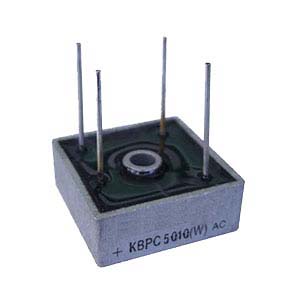

122070	KBPC50005W	50	50	55	400	1.05	25	10	50	KBPC-W
122072	KBPC5001W	100	50	55	400	1.05	25	10	100	KBPC-W
122074	KBPC5002W	200	50	55	400	1.05	25	10	200	KBPC-W
122076	KBPC5004W	400	50	55	400	1.05	25	10	400	KBPC-W
122078	KBPC5006W	600	50	55	400	1.05	25	10	600	KBPC-W
122080	KBPC5008W	800	50	55	400	1.05	25	10	800	KBPC-W
122082	KBPC5010W	1000	50	55	400	1.05	25	10	1000	KBPC-W

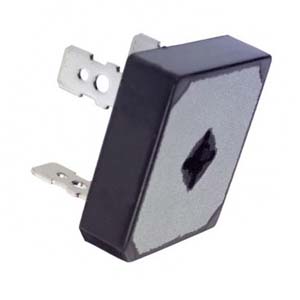

73851	MP50005	50	50	55	400	1.05	25	10	50	MP
122246	MP5001	100	50	55	400	1.05	25	10	100	MP
122249	MP5002	200	50	55	400	1.05	25	10	200	MP
122252	MP5004	400	50	55	400	1.05	25	10	400	MP
122255	MP5006	600	50	55	400	1.05	25	10	600	MP
122258	MP5008	800	50	55	400	1.05	25	10	800	MP
122261	MP5010	1000	50	55	400	1.05	25	10	1000	MP

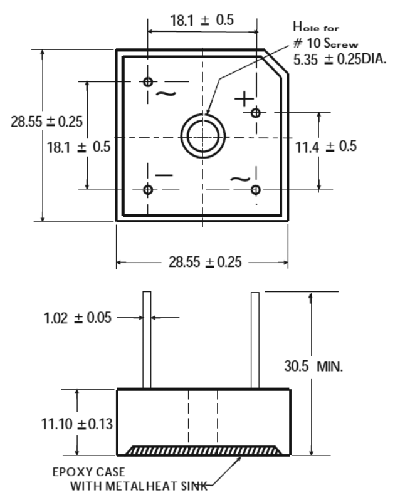

122245	MP50005W	50	50	55	400	1.05	25	10	50	MP-W
122248	MP5001W	100	50	55	400	1.05	25	10	100	MP-W
122251	MP5002W	200	50	55	400	1.05	25	10	200	MP-W
122254	MP5004W	400	50	55	400	1.05	25	10	400	MP-W
122257	MP5006W	600	50	55	400	1.05	25	10	600	MP-W
122260	MP5008W	800	50	55	400	1.05	25	10	800	MP-W
122263	MP5010W	1000	50	55	400	1.05	25	10	1000	MP-W

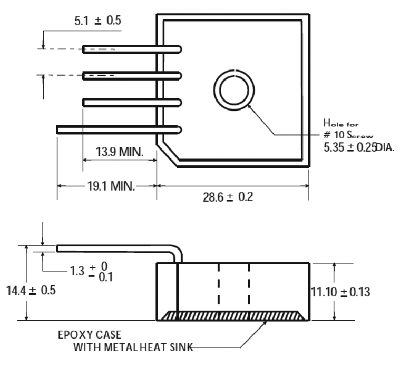

122244	MP50005S	50	50	55	400	1.05	25	10	50	MP-S
122247	MP5001S	100	50	55	400	1.05	25	10	100	MP-S
122250	MP5002S	200	50	55	400	1.05	25	10	200	MP-S
122253	MP5004S	400	50	55	400	1.05	25	10	400	MP-S
122256	MP5006S	600	50	55	400	1.05	25	10	600	MP-S
122259	MP5008S	800	50	55	400	1.05	25	10	800	MP-S
122262	MP5010S	1000	50	55	400	1.05	25	10	1000	MP-S

Цены, опубликованные в Магазине, могут не являться окончательными и предназначены только для предварительного ознакомления.
Информацию о наличии товаров и свежих ценах уточняйте у менеджеров, они устанавливают окончательные цены при оформлении заказа в зависимости от количества товара и истории клиента. Или нажмите ссылку: sales@dart.ru

Представленная техническая информация и размеры на чертежах, опубликованных на сайте, носят справочный характер и не предназначены для использования в конструкторской документации без согласования с нами.
Для получения актуализированной технической информации нажмите ссылку: alex@dart.ru

Возможность поставки товаров, где не указан код товара, уточняйте у наших менеджеров.

Перед закладкой компонентов в серийные изделия необходимо запрашивать образцы!
