Диоды в корпусе SOD-323 Pin

код товара

марка

PDF

Pd(mW)

Vr(V)

Ir(mkA)

If(mA)

Ir(mkA)

Vr(V)

Cd(pF)@1MHz

rd(Om)

маркировка

0V

1V

5V

181944

BAP50-03

200

50

10

50

0.1

50

1.1

0.55

0.35

5

A81

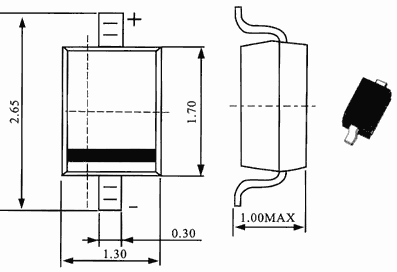

Диоды в корпусе SOD-323

код товара	марка	PDF	Pd(mW)	Vn(V)	Ir(mkA)	Ifm(mA)	Io(mA)	Ir(mkA)	Vr(V)	Vf(V)	If(mA)	Trr(ns)	маркировка
13087	1N4148WS		200	75	10	300	150	1	75	1.25	150	4	T4
13088	1N4448WS		200	75	10	500	250	2.5	75	1.25	150	4	T5
63155	1SS355		200	80	10	225	100	0.1	80	1.2	100	4	A
181777	1SS357		200	40	10		100	5	40	0.6	100		S31
x	1SS358		200	80	10		225	0.1	80	1.2	250	4	ID
x	1SS380		200	28	10		100	0.015	20	1.2	100	4	6D
181782	1SS404		200	20	100		300	50	20	0.45	300		S51
181787	B0530WS		200	30	500		500	500	30	0.45	500		SE
181797	B5817WS		200	20	1000		1000	1000	20	0.75	3000		SJ
181799	B5818WS		200	30	1000		1000	1000	30	0.875	3000		SK
181801	B5819WS		200	40	1000		1000	1000	40	0.9	3000		SL
180773	BAS316		250	100	100		250	1	75	1.25	150	4	A6
181822	BAS40WS		200	40	10	200		0.2	30	1	40	5	43
180774	BAS516		200	75	100		250	1	75	1.25	150	4	61
181836	BAS70WS		200	70	10	70		0.1	50	1	15	5	K73
12285	BAT42WS		200	30	10	200		0.5	25	0.65	50	5	S7
12286	BAT43WS		200	30	10	200		0.5	25	0.45	15	5	S8
12287	BAT54WS		200	30	100	200	100	2	25	1	100	5	L9
181858	BAT60B		350	10	500	3000		25	8	0.6	1000		W5
180776	BAV16WS		200	75	10	300	150	1	75	1.25	150	4	T6
13090	BAV19WS		200	100	10	400	200	0.1	100	1.25	200	50	A8
13091	BAV20WS		200	150	10	400	200	0.1	150	1.25	200	50	T2
13092	BAV21WS		200	200	10	400	200	0.1	200	1.25	200	50	T3
x	MA2J729		200	30	100		200	50	30	0.55	200	3	2B
181910	RB500V-40		200	40	1000		100	1	10	0.45	10		2
181912	RB501V-40		200	40	100		100	30	10	0.55	100		4
181922	RB551V-30		200	30	1000		500	100	20	0.47	500		D
181932	RB751V-40		200	30	100		30	0.5	30	0.37	1		5
181934	SD101AWS		200	60	10	15		0.2	50	1	15	1	SI
181936	SD101BWS		200	50	10	15		0.2	40	0.95	15	1	S2
181938	SD101CWS		200	40	10	15		0.2	30	0.9	15	1	S3
12311	SD103AWS		200	40	10	350		5	30	0.6	200	10	S4
12312	SD103BWS		200	30	10	350		5	20	0.6	200	10	S5
12313	SD103CWS		200	20	10	350		5	10	0.6	200	10	S6
181942	SD106WS		250	30	100		200	5	30	0.55	200		S21
181943	SD107WS		250	30	100	100		1	25	0.8	100		SO
