| 1 |
Тип |
| TS-4 |
SP ВКЛ - ВКЛ |
| TS-4B |
SP ВКЛ - (ВКЛ) |
| TS-4A |
SP ВКЛ - ВЫКЛ - ВКЛ |
| TS-4H |
SP (ВКЛ) - ВЫКЛ - (ВКЛ) |
| TS-4I |
SP ВКЛ - ВЫКЛ - (ВКЛ) |
| TS-5 |
DP ВКЛ - ВКЛ |
| TS-5B |
DP ВКЛ - (ВКЛ) |
| TS-5A |
DP ВКЛ - ВЫКЛ - ВКЛ |
| TS-5H |
DP (ВКЛ) - ВЫКЛ - (ВКЛ) |
| TS-5I |
DP ВКЛ - ВЫКЛ - (ВКЛ) |
| TS-5C |
DP ВКЛ - ВКЛ - ВКЛ |
|
| 2 |
Actuator |
For Втулка
E/E1/F/F1 |
S |
9.40 |
| T |
5.33 |
| U |
7.37 |
For Втулка
G/G1/J/J1 |
V |
10.41 |
| X |
5.59 |
| Locking Lever |
LK |
21.34 |
| LK1 |
16.26 |
 |
  |
 |
 |
| Втулка Option Code not requiкрасный unless
non-thread ordeкрасный,choose the Втулка
code "N" -- LKN / LK1N |
 |
 |
|
| 3 |

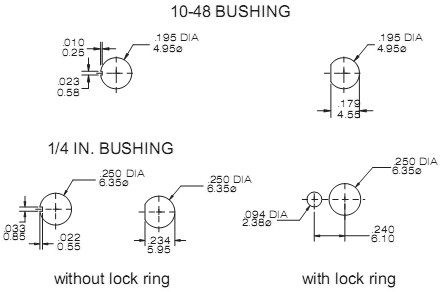

Втулка |
| The 10-48 uns thread |
E |
(std.) flat |
5.59 |
| F |
key-way |
5.59 |
| Non-thread |
E1 |
flat |
5.59 |
| F1 |
key-way |
5.59 |
| 1/4-40 uns thread |
G |
flat |
7.87 |
| J |
key-way |
6.60 |
| Non-thread |
G1 |
flat |
7.87 |
| J1 |
key-way |
6.60 |
| |
none |
The actuator LK/LK1 No
requirement
to choose
the Втулка,
unless the
non-thd LKN / LK1N |
|
| 4 |

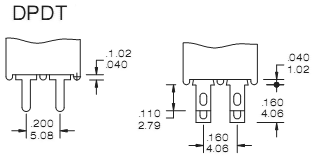

Termination |
| B |
solder lug |
| C |
P.C 1.27width |
| D |
Quick connect |
|
| 5 |
Contact
Material |
| Q |
серебрение |
| R |
золочение |
| G |
золочение поверх серебрения |
| K |
лужение |
|
| 6 |
Epoxy
seal |
| (none) |
none seal |
| E |
epoxy seal |
|
| 7 |
Vertical
support
Bracket |
| (none) |
|
| A5 |
Vertical bracket |
| A5S |
Vertical bracket
(snap-in) |
|
| 8 |
Actuator Cap/
Rubber
hood
Sealing |
| Actuator Cap |
| T3 |
9,4 for
actuator S/V/X |
| Rubber
hood |
| E1 |
for Втулка G/J |
| E7 |
for Втулка E/F |
|
| 9 |
Cap color |
| 1 |
белый |
| 2 |
черный |
| 3 |
красный |
| 4 |
желтый |
| 5 |
синий |
|
| 10 |
RoHS code |
H = RoHS Compliant |
