<table class="cat_ramka" cellpadding="5" cellspacing="2">
	<tr>
		<td align="left" valign="middle" class="cattitle"><a href="/cataloguenew/switches/toggle/index.shtml">Рычажные переключатели (TOGGLE)</a></td>
	</tr>
	<tr class="cat_tab2">
		<td>

			<h1 class="cat_zag">
              <a href="/cataloguenew/switches/toggle/html/ts40-t.shtml">TS40-T серия</a>			</h1>

			  <table align="center" bgcolor="#FFFFFF">
			  <tr valign="top">
						<td align="center">
<center>
  <p><b>Система обозначений:</b></p>
  <p><b>(B)</b></p>
</center>
<table  border="1" cellspacing="0" cellpadding="3" align="center">
  <tr align="center">
    <td bgcolor="#B9C8F0" nowrap><b>TS-6</b></td>
    <td>-</td>
    <td bgcolor="#B9C8F0"><b>T</b></td>
    <td>&nbsp;</td>
    <td bgcolor="#B9C8F0"><b>E1</b></td>
    <td>&nbsp;</td>
    <td bgcolor="#B9C8F0"><b>Q</b></td>
    <td>-</td>
    <td bgcolor="#B9C8F0"><b>E</b></td>
    <td>-</td>
    <td bgcolor="#B9C8F0"><b>S</b></td>
    <td>-</td>
    <td bgcolor="#B9C8F0"><b>T3</b></td>
    <td>-</td>
    <td bgcolor="#B9C8F0"><b>5</b></td>
    <td>-</td>
    <td bgcolor="#B9C8F0">&nbsp;</td>
  </tr>
  <tr align="center">
    <td><b>1</b></td>
    <td>&nbsp;</td>
    <td><b>2</b></td>
    <td>&nbsp;</td>
    <td><b>3</b></td>
    <td>&nbsp;</td>
    <td><b>4</b></td>
    <td>&nbsp;</td>
    <td><b>5</b></td>
    <td>&nbsp;</td>
    <td><b>6</b></td>
    <td>&nbsp;</td>
    <td><b>7</b></td>
    <td>&nbsp;</td>
    <td><b>8</b></td>
    <td>&nbsp;</td>
    <td><b>9</b></td>
  </tr>
</table>
<br>
<table  border="1" cellspacing="0" cellpadding="4" align="center">
  <tr>
    <td align="center" valign="top" bgcolor="#FFFFFF"><b>1</b></td>
    <td valign="top" bgcolor="#B9C8F0"><b>Тип</b></td>
    <td valign="top" bgcolor="#FFFFFF"><table border="1" cellpadding="1" cellspacing="0" style="border-color: #B9C8F0">
      <tr>
        <td valign="top"><b>Horizon Right<br>
          Angle</b></td>
        <td valign="top"><b>Vertical Right <br>
          Angle</b></td>
        <td valign="top">&nbsp;</td>
      </tr>
      <tr>
        <td valign="top"><b>TS-6</b></td>
        <td valign="top"><b>TS-8</b></td>
        <td valign="top">SP  ВКЛ - ВКЛ</td>
      </tr>
      <tr>
        <td valign="top"><b>TS-6B</b></td>
        <td valign="top"><b>TS-8B</b></td>
        <td valign="top">SP  ВКЛ - (ВКЛ)</td>
      </tr>
      <tr>
        <td valign="top"><b>TS-6A</b></td>
        <td valign="top"><b>TS-8A</b></td>
        <td valign="top">SP  ВКЛ - ВЫКЛ - ВКЛ</td>
      </tr>
      <tr>
        <td valign="top"><b>TS-6H</b></td>
        <td valign="top"><b>TS-8H</b></td>
        <td valign="top">SP  (ВКЛ) - ВЫКЛ - (ВКЛ)</td>
      </tr>
      <tr>
        <td valign="top"><b>TS-6I</b></td>
        <td valign="top"><b>TS-8I</b></td>
        <td valign="top">SP  ВКЛ - ВЫКЛ - (ВКЛ)</td>
      </tr>
      <tr>
        <td valign="top"><b>TS-7</b></td>
        <td valign="top"><b>TS-9</b></td>
        <td valign="top">DP  ВКЛ - ВКЛ</td>
      </tr>
      <tr>
        <td valign="top"><b>TS-7B</b></td>
        <td valign="top"><b>TS-9B</b></td>
        <td valign="top">DP  ВКЛ - (ВКЛ)</td>
      </tr>
      <tr>
        <td valign="top"><b>TS-7A</b></td>
        <td valign="top"><b>TS-9A</b></td>
        <td valign="top">DP  ВКЛ - ВЫКЛ - ВКЛ</td>
      </tr>
      <tr>
        <td valign="top"><b>TS-7H</b></td>
        <td valign="top"><b>TS-9H</b></td>
        <td valign="top">DP  (ВКЛ) - ВЫКЛ - (ВКЛ)</td>
      </tr>
      <tr>
        <td valign="top"><b>TS-7I</b></td>
        <td valign="top"><b>TS-9I</b></td>
        <td valign="top">DP  ВКЛ - ВЫКЛ - (ВКЛ)</td>
      </tr>
      <tr>
        <td valign="top"><b>TS-7C</b></td>
        <td valign="top"><b>TS-9C</b></td>
        <td valign="top">DP ВКЛ - ВКЛ - ВКЛ</td>
      </tr>
      <tr>
        <td valign="top">&nbsp;</td>
        <td valign="top"><b>TS-82</b></td>
        <td valign="top">SP  ВКЛ - ВКЛ</td>
      </tr>
      <tr>
        <td valign="top">&nbsp;</td>
        <td valign="top"><b>TS-82B</b></td>
        <td valign="top">SP  ВКЛ - (ВКЛ)</td>
      </tr>
      <tr>
        <td valign="top">&nbsp;</td>
        <td valign="top"><b>TS-82A</b></td>
        <td valign="top">SP  ВКЛ - ВЫКЛ - ВКЛ</td>
      </tr>
      <tr>
        <td valign="top">&nbsp;</td>
        <td valign="top"><b>TS-82H</b></td>
        <td valign="top">SP  (ВКЛ) - ВЫКЛ - (ВКЛ)</td>
      </tr>
      <tr>
        <td valign="top">&nbsp;</td>
        <td valign="top"><b>TS-82I</b></td>
        <td valign="top">SP  ВКЛ - ВЫКЛ - (ВКЛ)</td>
      </tr>
    </table>      </td>
  </tr>
  <tr>
    <td align="center" valign="top" bgcolor="#FFFFFF"><b>2</b></td>
    <td valign="top" bgcolor="#B9C8F0"><b>Actuator</b></td>
    <td valign="top" bgcolor="#FFFFFF"><table border="1" cellpadding="1" cellspacing="0" style="border-color: #B9C8F0">
        <tr>
          <td rowspan="3">For Втулка<br>
            E/E1/F/F1</td>
          <td valign="top"><b>S</b></td>
          <td valign="top">9.40</td>
        </tr>
        <tr>
          <td valign="top"><b>T</b></td>
          <td valign="top">5.33</td>
        </tr>
        <tr>
          <td valign="top"><b>U</b></td>
          <td valign="top">7.37</td>
        </tr>
        <tr>
          <td rowspan="2">For Втулка <br>
            G/G1/J/J1</td>
          <td valign="top"><b>V</b></td>
          <td valign="top">10.41</td>
        </tr>
        <tr>
          <td valign="top"><b>X</b></td>
          <td valign="top">5.59</td>
        </tr>

      </table>
        <table border="0" cellspacing="0" cellpadding="2">
          <tr>
            <td valign="top"><img src="/cataloguenew/switches/toggle/images/ts40-t/ts40-t_actuator-s.gif" alt="" width="181" height="204" border="0"></td>
            <td valign="top"><img src="/cataloguenew/switches/toggle/images/ts40-t/ts40-t_actuator-t.gif" alt="" width="176" height="202" border="0"><img src="/cataloguenew/switches/toggle/images/ts40-t/ts40-t_actuator-u.gif" alt="" width="182" height="189" border="0"></td>
          </tr>
          <tr>
            <td valign="top"><img src="/cataloguenew/switches/toggle/images/ts40-t/ts40-t_actuator-v.gif" alt="" width="203" height="215" border="0"></td>
            <td valign="top"><img src="/cataloguenew/switches/toggle/images/ts40-t/ts40-t_actuator-x.gif" alt="" width="187" height="194" border="0"></td>
          </tr>
      </table></td>
  </tr>
  <tr>
    <td align="center" valign="top" bgcolor="#FFFFFF"><b>3</b></td>
    <td valign="top" bgcolor="#B9C8F0"><b>Втулка</b></td>
    <td valign="top" bgcolor="#FFFFFF"><table border="1" cellpadding="1" cellspacing="0" style="border-color: #B9C8F0">
        <tr>
          <td rowspan="2">The 10-48 uns thread</td>

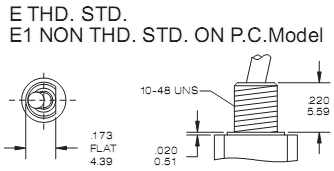

          <td valign="top"><b>E</b></td>
          <td valign="top">flat</td>
          <td valign="top">5.59</td>
        </tr>
        <tr>

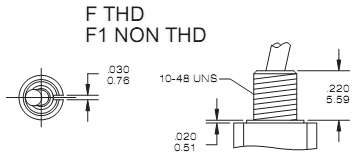

          <td valign="top"><b>F</b></td>
          <td valign="top">key-way</td>
          <td valign="top">5.59</td>
        </tr>
        <tr>
          <td rowspan="2">Non-thread</td>
          <td valign="top"><b>E1</b></td>
          <td valign="top">(std.) flat</td>
          <td valign="top">5.59</td>
        </tr>
        <tr>
          <td valign="top"><b>F1</b></td>
          <td valign="top">key-way</td>
          <td valign="top">5.59</td>
        </tr>
        <tr>
          <td rowspan="2">1/4-40 uns thread</td>

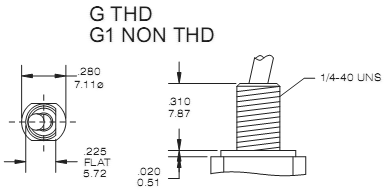

          <td valign="top"><b>G</b></td>
          <td valign="top">flat</td>
          <td valign="top">7.87</td>
        </tr>
        <tr>

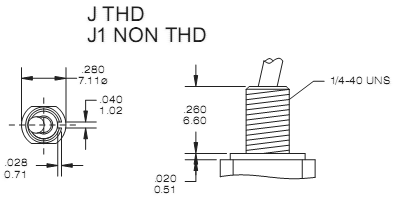

          <td valign="top"><b>J</b></td>
          <td valign="top">key-way</td>
          <td valign="top">6.60</td>
        </tr>
        <tr>
          <td rowspan="2">Non-thread</td>
          <td valign="top"><b>G1</b></td>
          <td valign="top">flat</td>
          <td valign="top">7.87</td>
        </tr>
        <tr>
          <td valign="top"><b>J1</b></td>
          <td valign="top">key-way</td>
          <td valign="top">6.60</td>
        </tr>

      </table>
        <table border="0" cellspacing="0" cellpadding="2">
          <tr>
            <td valign="top"><img src="/cataloguenew/switches/toggle/images/ts40-t/ts40-t_bushing-e.gif" alt="" width="334" height="171" border="0"></td>
          </tr>
          <tr>
            <td valign="top"><img src="/cataloguenew/switches/toggle/images/ts40-t/ts40-t_bushing-f.gif" alt="" width="355" height="157" border="0"></td>
          </tr>
          <tr>
            <td valign="top"><img src="/cataloguenew/switches/toggle/images/ts40-t/ts40-t_bushing-g.gif" alt="" width="386" height="191" border="0"></td>
          </tr>
          <tr>
            <td valign="top"><img src="/cataloguenew/switches/toggle/images/ts40-t/ts40-t_bushing-j.gif" alt="" width="395" height="198" border="0"></td>
          </tr>
      </table></td>
  </tr>
  <tr>
    <td align="center" valign="top" bgcolor="#FFFFFF"><b>4</b></td>
    <td valign="top" bgcolor="#B9C8F0"><b>Contact<br>
      Material</b></td>
    <td valign="top" bgcolor="#FFFFFF"><table border="1" cellpadding="1" cellspacing="0" style="border-color: #B9C8F0">
        <tr>
          <td valign="top"><b>Q</b></td>
          <td valign="top">серебрение</td>
        </tr>
        <tr>
          <td valign="top"><b> R</b></td>
          <td valign="top"> золочение</td>
        </tr>
        <tr>
          <td valign="top"><b> G</b></td>
          <td valign="top"> золочение поверх серебрения</td>
        </tr>
        <tr>
          <td valign="top"><b>K</b></td>
          <td valign="top"> gold \ tin</td>
        </tr>
    </table></td>
  </tr>
  <tr>
    <td align="center" valign="top" bgcolor="#FFFFFF"><b>5</b></td>
    <td valign="top" bgcolor="#B9C8F0"><b>Epoxy<br>
      seal</b></td>
    <td valign="top" bgcolor="#FFFFFF"><table border="1" cellpadding="1" cellspacing="0" style="border-color: #B9C8F0">
        <tr>
          <td valign="top"><b>(none)</b></td>
          <td valign="top">none seal</td>
        </tr>
        <tr>
          <td valign="top"><b>E</b></td>
          <td valign="top"> epoxy seal</td>
        </tr>
    </table></td>
  </tr>
  <tr>
    <td align="center" valign="top" bgcolor="#FFFFFF"><b>6</b></td>
    <td valign="top" bgcolor="#B9C8F0"><b>Bracket Type</b></td>
    <td valign="top" bgcolor="#FFFFFF"><table border="1" cellpadding="1" cellspacing="0" style="border-color: #B9C8F0">
        <tr>
          <td valign="top"><b>(none)</b></td>
          <td valign="top">std. Straight</td>
        </tr>
        <tr>
          <td valign="top"><b>S</b></td>
          <td valign="top"> Snap-in type</td>
        </tr>

    </table></td>
  </tr>
  <tr>
    <td align="center" valign="top" bgcolor="#FFFFFF"><b>7</b></td>
    <td valign="top" bgcolor="#B9C8F0"><b>Actuator Cap/<br>
      Rubber<br>
      hood<br>
      Sealing</b></td>
    <td valign="top" bgcolor="#FFFFFF"><table border="1" cellpadding="1" cellspacing="0" style="border-color: #B9C8F0">
        <tr>
          <td colspan="2" align="center" valign="top">Actuator Cap</td>
        </tr>
        <tr>
          <td valign="top"><b>none</b></td>
          <td valign="top">&nbsp;</td>
        </tr>
        <tr>
          <td valign="top"><b>T3</b></td>
          <td valign="top">9,4 for
            actuator S/V/X</td>
        </tr>

      </table>
        <table border="0" cellspacing="0" cellpadding="2">
          <tr>
            <td valign="top"><img src="/cataloguenew/switches/toggle/images/ts40-t/ts40-t_cap-t3.gif" alt="" width="187" height="103" border="0"></td>
          </tr>
      </table></td>
  </tr>
  <tr>
    <td align="center" valign="top" bgcolor="#FFFFFF"><b>8</b></td>
    <td valign="top" bgcolor="#B9C8F0"><b>Cap color</b></td>
    <td valign="top" bgcolor="#FFFFFF"><table border="1" cellpadding="1" cellspacing="0" style="border-color: #B9C8F0">
        <tr>
          <td valign="top"><b>1</b></td>
          <td valign="top"> белый</td>
        </tr>
        <tr>
          <td valign="top"><b> 2</b></td>
          <td valign="top"> черный</td>
        </tr>
        <tr>
          <td valign="top"><b>3</b></td>
          <td valign="top"> красный</td>
        </tr>
        <tr>
          <td valign="top"><b> 4</b></td>
          <td valign="top"> желтый</td>
        </tr>
        <tr>
          <td valign="top"><b>5</b></td>
          <td valign="top"> синий</td>
        </tr>
    </table></td>
  </tr>
  <tr>
    <td align="center" valign="top" bgcolor="#FFFFFF"><b>9</b></td>
    <td valign="top" bgcolor="#B9C8F0"><b>RoHS code</b></td>
    <td valign="top" bgcolor="#FFFFFF"><b>H</b> = RoHS Compliant</td>
  </tr>
</table>
<p>&nbsp;</p>
<p>&nbsp;</p></td>
				  </tr>
			  </table>

			  <p>&nbsp;</p>
		    </td>
	</tr>
</table>
