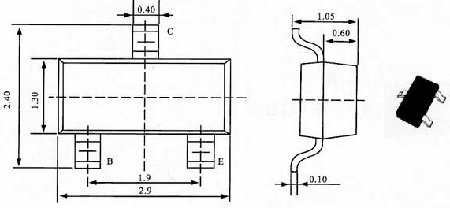

Транзисторы биполярные в корпусе SOT-23

код товара	марка	PDF	структура	Pcm (mW)	Ic (mA)	BVcbo (V)	BVceo (V)	BVebo (V)	hfe				Vce (sat) (V)	Ic (mA)	Is (mA)	ft(MHz)	маркировка
									min	max	Vce (V)	Ic (mA)
11603	2SA1036		PNP	200	500	40	32	5	82	390	3	10	0.4	100	10	200+	HP,HQ,HR
72328	2SA1037		PNP	200	150	60	50	6	120	560	6	1	0.5	50	5	120	FQ,FR,FS
72327	2SA1162		PNP	200	150	50	50	5	70	400	6	2	0.3	100	10	80	SO,SY,SG
11604	2SA1179		PNP	200	150	55	50	5	200	400	6	1	0.5	50	5	180+	M
186676	2SA1235A		PNP	200	200	60	50	6	150	600	6	1	0.3	100	10	180	M-E.M-F
186677	2SA1298		PNP	200	800	35	30	5	100	320	1	100	0.4	500	20	120+	IQ.IY
11585	2SA1576A		PNP	200	150	60	50	6	120	560	6	1	0.5	50	5	140	FO1, FR1, FS1
11742	2SA812		PNP	200	100	60	50	5	90	600	6	1	0.3	100	10	180	M4, M5, M6, M7
11586	2SB1197		PNP	200	800	40	32	5	82	390	3	100	0.5	500	50	50	AHP, AHQ, AHR
11587	2SB624		PNP	200	700	30	25	5	110	400	1	100	0.6	700	70	140	BV1, BV2, BV3, BV4, BV5
11495	2SB709A		PNP	200	200	45	45	7	160	460	10	2	0.5	100	10	60	BQ1, BR1, BS1
11743	2SC1623		NPN	200	100	60	50	5	90	600	6	1	0.3	100	10	250	L4,L5,L6,L7
186678	2SC1654		NPN	150	50	180	160	5	90	400	3	15	0.3	50	5	120+	N5,N6,N7
11498	2SC2411		NPN	200	500	40	32	5	82	390	3	100	0.4	500	50	250+	CP,CQ,CR
24989	2SC2412		NPN	200	150	60	50	7	120	560	6	1	0.4	50	5	180+	BQ,BR,BS
72325	2SC2712		NPN	150	150	60	50	5	70	700	6	2	0.25 100	10	80		LO,LY,LG,LL
72326	2SC2714		NPN	100	20	40	30	4	40	200	6	1	0.3	10	1	400	QR,QO,QY
186679	2SC2715		NPN	350	50	35	30	4	40	240	12	2	0.4	10	1	100	RR1,RO1,RY1
186680	2SC2859		NPN	150	500	35	30	5	70	400	1	100	0.25 100	10		300+	WO,WY,WG
186681	2SC3052		NPN	150	200	50	50	6	150	800	6	1	0.3	100	10	180	LE,LF,LG
186682	2SC3125		NPN	150	50	30	25	4	20	200	10	10	0.2	15	1.5	250
186683	2SC3437		NPN	150	200	40	15	5	40	240	1	10	0.3	20	1	200	CHR,CHO,CHY
186684	2SC5343		NPN	200	150	60	50	5	70	700	6	2	0.25	100	10	80	5343
186685	2SC5344		NPN	200	800	35	30	5	100	320	1	100	0.5	500	50	80	FAO,FAY
186686	2SC5345		NPN	300	20	30	20	4	40	240	6	1	0.3	10	1	550+	5345
186687	2SD0602		NPN	200	500	30	25	5	35	340	10	150	0.6	300	30	200+	WQ1,WR1,WS1
186688	2SD0602A		NPN	200	500	60	50	5	85	340	10	150	0.6	300	30	200+	XQ,XR,XS
186689	2SD1757K		NPN	200	500	30	15	6.5	120	560	3	100	0.4	500	50	150+	AAQ. AAR. AAS
186690	2SD2114		NPN	250	500	25	20	12	820	2700	3	10	0.4	500	20	350+	BBV,BBW
186691	2SD2142		NPN	200	300	40	32	12	5000		3	100	1.4	200	0.2	200+	RIM
11497	2SD596		NPN	200	700	30	25	5
11499	2SD602A		NPN	200	500	60	50	5	85	340	10	150	0.6	300	30	200+	XQ.XR.XS
186692	3DK2222A		NPN	225	600	75	40	6	100	300	10	150	0.6	500	50	300	IPI
186693	A1015		PNP	200	150	50	50	5	130	400	6	2	0.3	100	10	80	BA
186694	A733		PNP	200	150	60	50	5	120	475	6	1	0.3	100	10	50	CS
11744	BC807		PNP	300	500	50	45	5	100	600	1	100	0.7	500	50	100	5A,5B,5C
11745	BC808		PNP	200	500	30	25	5	100	630	1	100	0.7	500	50	100	5E,5F,5G
11746	BC817		NPN	200	500	50	45	5	100	630	1	100	0.7	500	50	100	6A,6B,6C
11747	BC818		NPN	300	500	30	25	5	100	630	1	100	0.7	500	50	170+	6E,6F,6G
11502	BC846		NPN	225	100	80	65	6	110	450	5	2	0.5	100	5	100	1A,1B
11501	BC847		NPN	225	100	50	45	6	110	800	5	2	0.5	100	5	100	1E,1F,1G
11504	BC848		NPN	225	100	30	30	6	110	800	5	2	0.5	100	5	100	1J,1K,1L
11503	BC856		PNP	225	100	80	65	5	125	475	5	2	0.5	100	5	100	3A,3B
16607	BC857		PNP	225	100	50	45	5	125	800	5	2	0.5	100	5	100	3E,3F,3G
11506	BC858		PNP	225	100	30	30	5	125	800	5	2	0.5	100	5	100	3J,3K,3L
57192	BCW30		PNP	225	100	32	32	5	215	500	5	2	0.3	10	0.5		C2X
57198	BCW60C		NPN	250	100	32	32	5	250	460	5	2	0.55	50	1.25	100	AC
57201	BCW61B		PNP	250	200	32	32	5	180	310	5	2	0.55	50	1.25	100	BB
186695	BCW61C		PNP	250	100	32	32	5	250	460	5	2	0.55	50	1.25	100	BC
186696	BCW66H		NPN	330	800	75	45	5	250	630	1	100	0.7	500	50	100	EH
57204	BCW68		PNP	330	800	60	45	5	160	630	2	100	1	500	50	100	DG,DH
57206	BCW71		NPN	250	100	50	45	5	110	220	5	2	0.35	50	2.5	100	K1
11505	BCW72		NPN	250	100	50	45	5	200	450	5	2	0.35	50	2.5	100	K2
57209	BCX19		NPN	225	500	50	45	5	100	600	1	100	0.62	500	50		U1
57212	BCX70J		NPN	250	200	45	45	5	250	460	5	2	0.55	50	1.25	100	AJ
57213	BCX70K		NPN	250	200	45	45	5	380	630	5	2	0.55	50	1.25	100	AK
186697	BF820		NPN	250	50	300	300	5	50		20	25	0.6	30	5	60	IV
186698	BF821		PNP	250	50	300	300	5	50		20	25	0.8	30	5	60	1W
186699	BF822		NPN	250	50	250	250	5	50		20	25	0.6	30	5	60	IX
186700	BF823		PNP	250	50	250	250	5	50		20	25	0.8	30	5	60	1Y
186701	BFS20		NPN	250	25	30	20	4	40	120	10	7	0.3	10	1	275	GiL
186702	C1815		NPN	200	150	60	50	5	130	400	6	2	0.25	100	10	80	HF
186703	C945		NPN	200	150	60	50	5	130	400	6	1	0.3	100	10	150	CR.
186704	FMMT4124		NPN	330	200	30	25	5	120	360	1	2	0.3	50	5	300	ZC
57305	FMMT449		NPN	200	1000	50	30	5	100	300	2	500	1	2000	200	150	449
186705	FMMT458		NPN	500	1000	400	400	5	100	300	10	50	0.5	50	6	50	458
11523	FMMT491		NPN	500	1000	80	60	5	100	300	5	500	0.5	1000	100	150	491
186706	FMMT591		PNP	500	1000	80	60	5	100	300	5	500	0.6	1000	100	150	591
57319	KSA1182		PNP	150	500	35	30	5	70	240	1	100	0.25	100	10	150	F10.F1Y
57385	KST10		NPN	350	40	30	25	3	60		10	4	0.5	4	0.4	650	30
76135	KTA1298		PNP	200	800	35	30	5	100	320	1	100	0.4	500	20	80	IO,IY
57174	KTA1504		PNP	150	150	50	50	5	70	400	6	2	0.3	100	10	80	ASO, ASY, ASG
11526	KTA1505		PNP	150	500	35	30	5	70	400	1	100	0.25	100	10	150	AZO, AZY, AZG
76136	KTC3265		NPN	200	800	35	30	5	100	320	1	100	0.5	500	20	120	EO.EY
11525	KTC3875		NPN	150	150	60	50	5	70	700	6	2	0.25	100	10	80	ALO, ALY, ALG, ALL
11528	KTC3876		NPN	200	500	35	30	5	70	400	1	100	0.25	100	10	300+	WO,WY,WG
11527	KTC3879		NPN	150	50	35	30	4	40	240	12	2	0.4	10	1	100	RR,RO,RY
186707	KTC3880S		NPN	150	20	40	30	4	40	200	6	1				500	AQR, AQO, AQY
11530	KTC4075		NPN	100	150	60	50	5	70	700	6	2	0.25	100	10	80	LO, LY, LGR, LBL
11529	KTD1304		NPN	200	300	25	20	12	200	800	2	4	0.25	100	10	60+	MAX
17071	M28S		NPN	200	1000	40	20	6	300	1000	1	100	0.55	600	20	100	285
186708	M8050		NPN	200	1000	40	25	6	80	300	1	100	0.5	800	80	150	YII
186709	M8550		PNP	200	1000	40	25	6	85	300	1	100	0.5	800	80	150	Y21
186710	MMBT1616		NPN	750	1000	60	50	6	135	600	2	100	0.3	1000	50	100	16
186711	MMBT1616A		NPN	750	1000	120	60	6	135	400	2	100	0.3	1000	50	100	16A
57413	MMBT2222A		NPN	300	600	75	40	6	100	300	10	150	0.6	500	50	300	IP
57412	MMBT2222		NPN	300	600	60	30	5	100	300	10	150	1	500	50	250	M1B
57414	MMBT2369		NPN	300	200	40	15	4.5	40	120	1	10	0.25	10	1		M1J
57415	MMBT2369A		NPN	300	200	40	15	4.5		120	1	10	0.2	10	1		1JA
57418	MMBT2907A		PNP	300	600	60	60	5	100	300	10	150	0.6	500	50	200	2F
57417	MMBT2907		PNP	300	600	60	40	5	100	300	10	150	0.6	500	50	200	M2B
186712	MMBT3904		NPN	200	200	60	40	6	100	300	1	10	0.3	50	5	250	1AM
50638	MMBT3906		PNP	200	200	40	40	5	100	300	1	10	0.3	50	5	250	2A
57433	MMBT4401		NPN	300	600	60	40	6	100	300	1	150	0.4	150	15	250	2X
57434	MMBT4403		PNP	300	600	40	40	5	100	300	2	150	0.4	150	15	200	2T
57440	MMBT5401		PNP	300	600	160	150	5	100	300	5	10	0.5	50	5	100	2L
57441	MMBT5550		NPN	225	600	160	140	6	60	250	5	10	0.25	50	5	100	M1F
57442	MMBT5551		NPN	300	600	180	160	6	100	300	5	10	0.5	50	5	80	GI
186713	MMBT589		PNP	310	1000	50	30	5	100	300	2	500	0.65	2000	200	100	589
57450	MMBTA05		NPN	300	500	60	60	4	100		1	10	0.25	100	10	100	1H
57451	MMBTA06		NPN	300	500	80	80	4	100	200	1	10	0.25	100	10	100	1GM
57452	MMBTA13		NPN	300	300	30	30	10	10000		5	100	1.5	100	0.1	125	K2D
57453	MMBTA14		NPN	300	300	30	30	10	20000		5	100	1.5	100	0.1	125	K3D
11532	MMBTA28		PNP	200	500	80	80	12	10K		5	10	1.2	10	0.01	125	3SS
57455	MMBTA42		NPN	300	300	300	300	5	100	200	10	10	0.2	20	2	50	ID
186714	MMBTA43		NPN	350	500	200	200	5	40		10	10	0.5	20	2	50	ABX
57456	MMBTA55		PNP	225	500	60	60	4	100		1	10	0.25	100	10	50	2H
57457	MMBTA56		PNP	225	500	80	80	4	100		1	10	0.25	100	10	50	2GM
57459	MMBTA64		NPN	200	800	30		10	20K		5	10	1.2	10	0.01	125	2V
11825	MMBTA92		PNP	300	300	300	300	5	100	200	10	10	0.2	20	2	50	2D
186715	MMBTA93		PNP	350	500	200	200	5	40		10	10	0.5	20	2	50	YW
57460	MMBTH10		NPN	225	50	30	25	3	60		10	4	0.5	4	0.4	650	3EM
76132	S8050		NPN	300	500	40	25	5	120	400	1	50	0.6	500	50	150	J3Y
57461	S8550		PNP	300	500	40	25	5	120	400	1	50	0.6	500	50	150	2TY
186716	S9011		NPN	200	30	30	20	4	70	200	5	1	0.3	10	1	150	IT
76128	S9012		PNP	300	500	40	25	5	120	400	1	50	0.6	500	50	150	2T1
76129	S9013		NPN	300	500	40	25	5	120	400	1	50	0.6	500	50	150	J3
76130	S9014		NPN	200	100	50	45	5	200	1000	5	1	0.3	100	5	150	J6
11792	S9015		PNP	200	100	50	45	5	200	1000	5	1	0.3	100	10	150	M6
186717	S9016		NPN	200	25	30	20	5	70	200	5	1	0.3	10	1	300	Y6
76131	S9018		NPN	200	50	25	18	4	70	190	5	1	0.5	10	1	600	J8
68262	SS8050		NPN	300	1500	40	25	5	120	400	1	100	0.5	800	80	100	YI
68263	SS8550		PNP	300	1500	40	25	5	120	400	1	100	0.5	800	80	100	Y2
186718	STD123S		NPN	350	1000	20	15	6.5	150		1	100	0.3	500	50	260+	123
